INTEL X540 ML2 DUAL PORT 10GBASET ADAPTE
INTEL X540 ML2 DUAL PORT 10GBASET ADAPTE
Product Overview

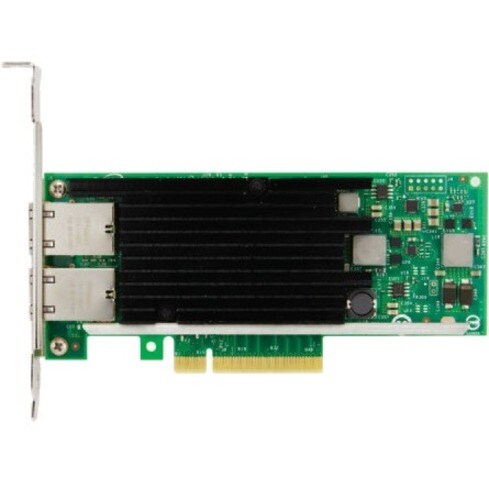

INTEL X540 ML2 DUAL PORT 10GBASET ADAPTER FOR IBM SYSTEM X
Delivers high-performance networking using an economical cabling infrastructureThe explosive growth in virtualization is driving the need for a faster net-work. Meanwhile, network-intensive applications, such as video and real-time media, are also demanding more bandwidth.
The Intel X540 Dual Port 10BaseT Adapter Family for IBM® System x® is an excellent choice for addressing the needs of today's data center networks. The Intel X540 network adapter family supports 10GBASE-T connec-tors that utilize RJ-45 ports over unshielded twisted pair cabling. Because these adapters are backward compatible with your existing 1000BASE-T switches, they greatly simplify your transition to 10 GbE technology.
- This 4000MB/s bandwidth adapter is ideal for PCs with PCI Express x8 slots, ensuring top level network connectivity for your desktops
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
- 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
- This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
Technical Specifications
Miscellaneous
| Platform Supported | PC |
Network & Communication
| Network Technology | 10GBase-T |
Media & Performance
| Twisted Pair Cable Standard | Category 7 |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Host Interface | PCI Express x8 |
| USB | No |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Serial Port | No |
| Total Number of Ports | 2 |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
Physical Characteristics
| Form Factor | Mezzanine |
| Height | 15 mm |
| Width | 168 mm |
| Depth | 69 mm |
| Card Height | Low-profile |
General Information
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | 00D1994 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | Intel X540 ML2 Dual Port 10GbaseT Adapter For IBM System x |
| Brand Name | Lenovo |
