AXIS T8504-E OUTDOOR POE SWITCH
AXIS T8504-E OUTDOOR POE SWITCH
Product Overview
AXIS T8504-E 4 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Modular - 1 SFP Slots - 150 W PoE Budget - Twisted Pair, Optical Fiber
Managed, plug-and-play outdoor switch

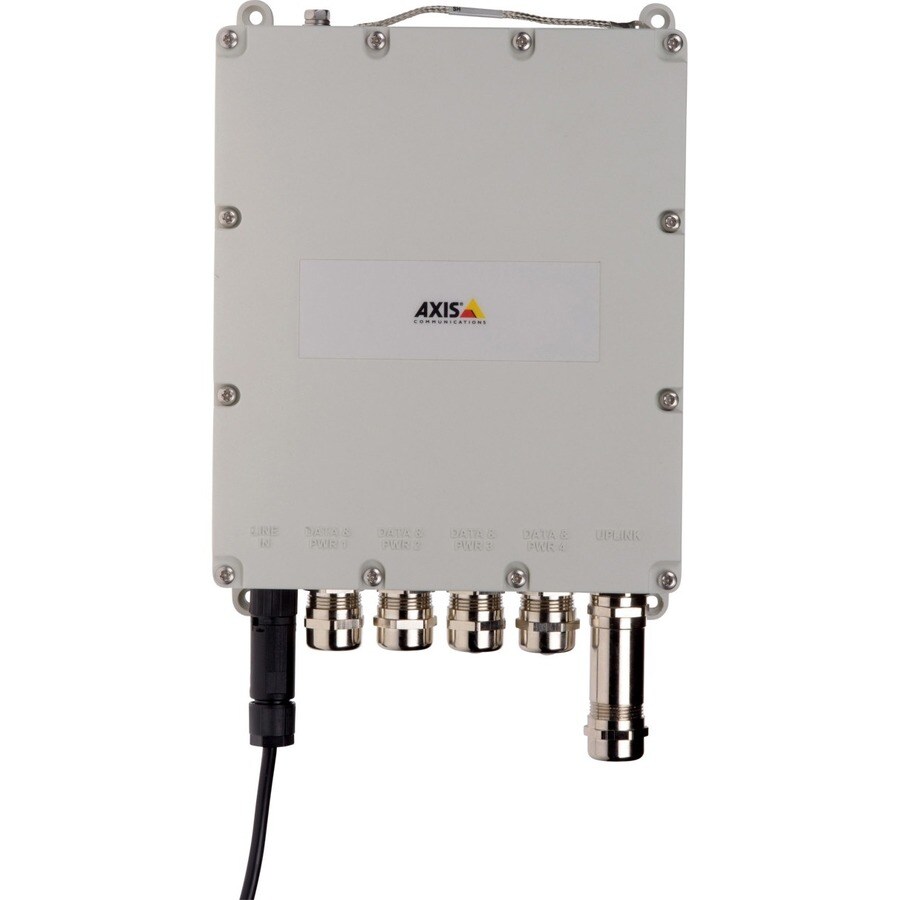

AXIS T8504-E Outdoor PoE Switch is an easy-to-install, compact outdoor switch enabling connection of four PoE-powered devices. The SFP port enables fiber connectivity for long distance connections, and remote management ensures easy maintenance, reducing support cost and customer down time. AXIS T8504-E is a robust system component with a wide temperature range, surge protection, and a dust and water-resistant enclosure which remains assembled during installation. With up to 60 W per port and a total power budget of 150 W, the switch is compatible with all Axis network devices.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
Technical Specifications
| Manageable | Yes |
| NDAA Compliant | Yes |
| Layer Supported | 2 |
| Power Source | PoE |
| Redundant Power Supply Supported | No |
| PoE Budget | 150 W |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 1.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x RJ45 10/100/1000Base-T Mbps (PoE Ports) |
| 1 x SFP Port (Uplink) |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 2.90 kg |
| Height | 69.9 mm |
| Width | 213.9 mm |
| Depth | 149.9 mm |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 01449001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | T8504-E |
| Product Name | T8504-E Outdoor PoE Switch |
| Brand Name | AXIS |
