EXCONNECTION RAIL 4 POE PS24
EXCONNECTION RAIL 4 POE PS24
Product Overview
AXIS Ex Connection Rail 4 Ports Ethernet Switch - Fast Ethernet - 10Base-T, 100Base-TX - 2 Layer Supported - 120 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable
Ex Connection Rail 4-port PoE is a high-performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras in the ExCam series over long distances. The network connection can be realized via optical fibers or copper-bound Ethernet.
The power supply can deliver 30 W per camera when additional heat is needed in sub-zero environments.

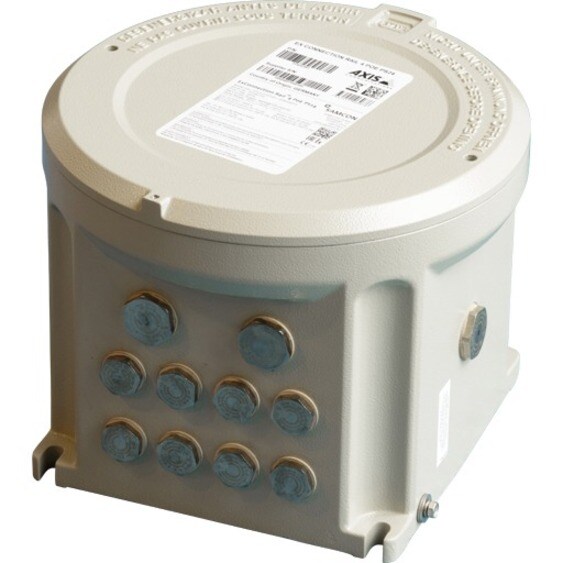

The Ex d-rated enclosure is made from seawater resistant copper free aluminum and ready for wall mounting.
Ex Connection Rail includes 2x M25x1.5 cable glands (Ex d).
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
Technical Specifications
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Fast Ethernet PoE+ |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 01535-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Name | Ex Connection Rail 4-port PoE MM |
| Product Line | Ex Connection Rail |
| Brand Name | AXIS |
| Power Source | DC |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Network Technology | 10Base-T |
| 100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 16 kg |
| Form Factor | Wall Mountable |
| Height | 227 mm |
| Width | 289 mm |
| Depth | 289 mm |
