SKDP03-T CABLE EXCAM 10M
SKDP03-T CABLE EXCAM 10M
Product Overview

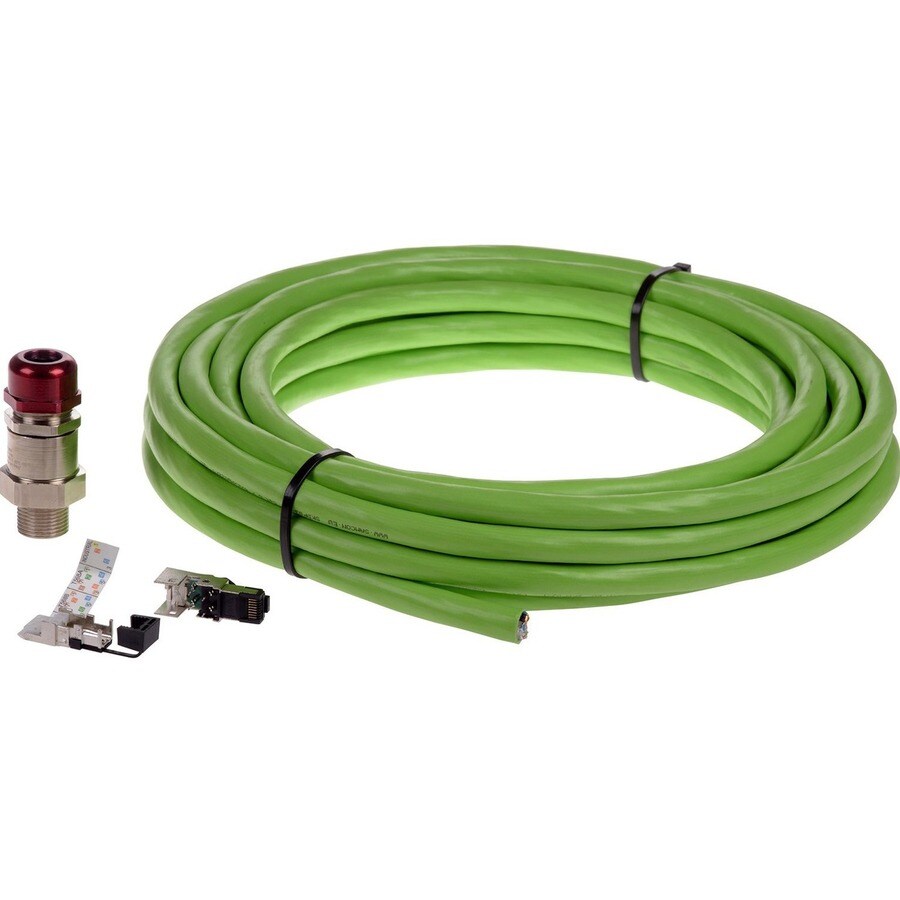

AXIS SKDP03-T 10 m Data Transfer/Power Cable for Surveillance Camera, Junction Box, PoE Switch - Shielding - 22/1 AWG
The data and power cable is specially designed for hazardous areas in accordance with EN 60079-14 for use in arctic temperatures (-60 °C/140 °F). The cable is ideal for wiring explosion-protected network cameras in ExCam series.
SKDP03-T is a high-speed cable for Industrial Ethernet for fixed installations in dry, wet, or damp rooms.
The cable meets the transmission characteristics for Category 6 of IEC 61156-5 Edition 2. It provides resistance against mechanical stress, oils as well as greases. Moreover, it is halogen free.
- Fully compatible with surveillance cameras
- Allows easy connection between devices helps transfer data quickly with accuracy and also transmits power
- Features Halogen Free
Technical Specifications
| Compatibility |
|
| Environmentally Friendly | Yes |
| Cable Length | 10 m |
| Device Supported | Surveillance Camera |
| Junction Box | |
| PoE Switch | |
| Shielding | Yes |
| Features | Halogen Free |
| Oil Resistant | |
| Stress Resistant | |
| UV Resistant | |
| American Wire Gauge | 22/1 AWG |
| Weight (Approximate) | 1.90 kg |
| Jacket Material | Polyurethane |
| Product Type | Data Transfer/Power Cable |
| Manufacturer Part Number | 01540001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | SKDP03-T |
| Product Name | SKDP03-T Cable ExCam 10 m |
| Brand Name | AXIS |
