EXCAM XF Q1785

EXCAM XF Q1785

EXCAM XF Q1785

Product Overview

AXIS ExCam ExCam XF Q1785 2 Megapixel Outdoor Full HD Network Camera - Colour - Box - Stainless Steel - H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), H.264 HP, Motion JPEG - 1920 x 1080 - 4.30 mm- 137 mm Varifocal Lens - 32x Optical - 60 fps - RGB CMOS - Wall Mount, Pole Mount, Junction Box Mount, Ceiling Mount - IP66, IP68 - Vibration Resistant, Corrosion Resistant

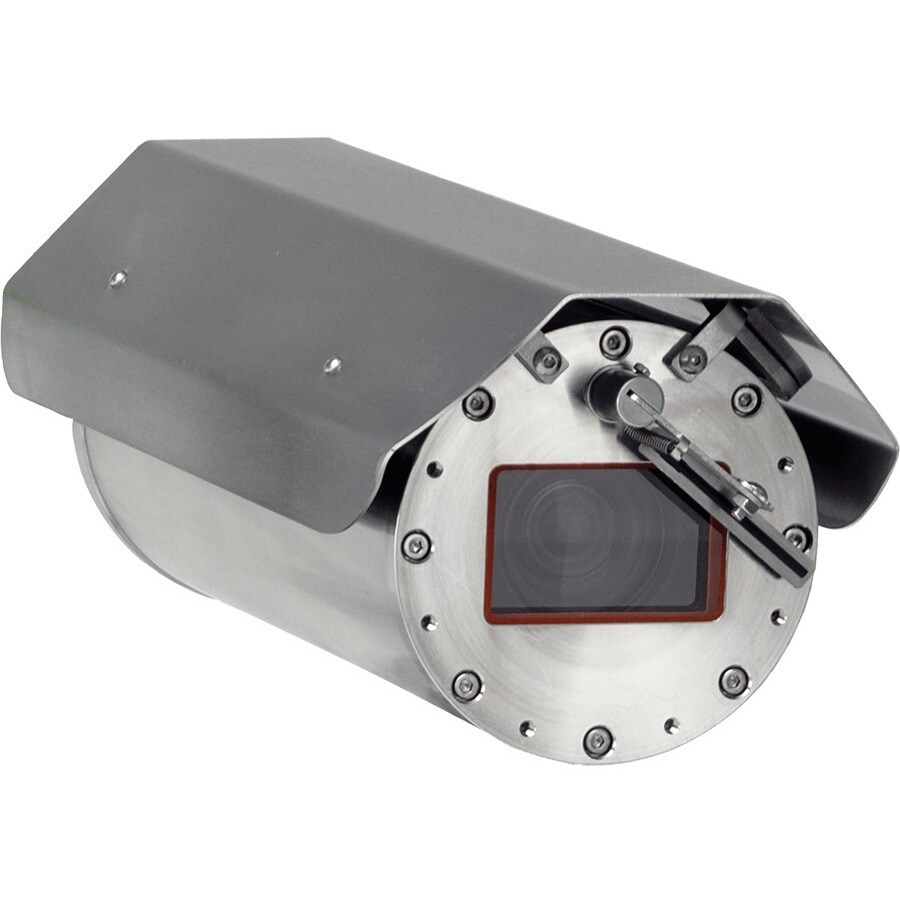

ExCam XF Q1785 Explosion-Protected Network Camera is a high-performance, fixed box network camera with outstanding 32x optical zoom in an explosion-protected stainless-steel housing. ExCam XF Q1785 has also been developed to withstand the typical shock and vibration associated with hazardous environments. Feature highly appreciate it when monitoring conveyor belts.

Like all our explosion-protected cameras, you can use ExCam XF Q1785 for visual verification of safety information from your sensor system. Plus, you can incorporate applications that provide man-down alarms, hardhat detection, and more.

Tough in extreme environments

ExCam XF Q1785 is certified to international standards to ensure safe operation in explosion prone applications. With built-in PoE support, a pre-connected 5-meters (16 ft) armored cable, and an Ex e junction box, the ExCam XF Q1785 is easy to install and use, and makes it simple to locate and repair any problems that might arise.

This tough network camera is specifically designed for installation in potentially hazardous environments and can withstand temperatures between -60 °C to 60 °C (-76 °F to 140 °F). ExCam XF Q1785 also supports electronic image stabilization (EIS), which greatly improves video quality in situations where the camera is subject to vibration such as gusty winds or passing vehicles. Furthermore, EIS allows you to install your camera out of reach on high walls, poles or ceilings with minimum impact on image quality.

Where ever you need it

ExCam XF Q1785 is designed for 24/7 long-range surveillance and provides high resolution footage even under extreme lighting conditions. The camera's 32x optical zoom, in combination with HDTV 1080p resolution, delivers superb zoomed-in views of people and objects of interest. This allows you to install the camera far away from the object and still capture all the details. It's got Forensic WDR for clarity even when there's both dark and light areas in the scene and Lightfinder for high-quality - color - images recorded in near darkness. And Zipstream preserves the forensic detail you need, while lowering bandwidth and storage requirements by 50% or more.

And there's more...

Go ahead and place ExCam Q1785 almost anywhere in relation to your targeted surveillance area. It comes with AXIS Guard Suite pre-installed to help reduce false alarms, and thanks to barrel distortion correction you can rely on great image quality, even at the edges of the image.

  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage24 V DC
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/66500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution2 Megapixel
Field of ViewHorizontal field of view: 60°-2.3° - Vertical field of view: 39°-1.3°
Environmental Conditions
Minimum Operating Temperature-60°C
Maximum Operating Temperature60°C
Maximum Operating Humidity100%
Lens
Optical Zoom32x
Maximum Aperturef/1.4
Maximum Focal Length137 mm
Minimum Focal Length4.30 mm
Minimum Aperturef/4
Lens IncludedYes
Miscellaneous
FeaturesPassword Protection
Motion Detection
HTTPS Encryption
Electronic Image Stabilization
Defog
Active Tampering Alarm
PTZ
SD Card Local Storage
Shock Detection
White Balance
Privacy Masking
Wiper
Wide Dynamic Range
Ingress Protection RatingIP66
IP68
General Information
Product TypeNetwork Camera
Manufacturer Part Number01572001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelExCam XF Q1785
Product NameExCam XF Q1785 Explosion-Protected Network Camera
Product LineExCam
Brand NameAXIS
Video
Video FormatsH.264
H.264 (MP)
H.264 (MPEG-4 Part 10/AVC)
H.264 BP
Motion JPEG
H.264 HP
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Physical Characteristics
Weight (Approximate)11.10 kg
DurabilityVibration Resistant
Corrosion Resistant
Form FactorBox
Mount TypePole Mount
Wall Mount
Ceiling Mount
Junction Box Mount
Product ColorStainless Steel
Color FamilyGrey
