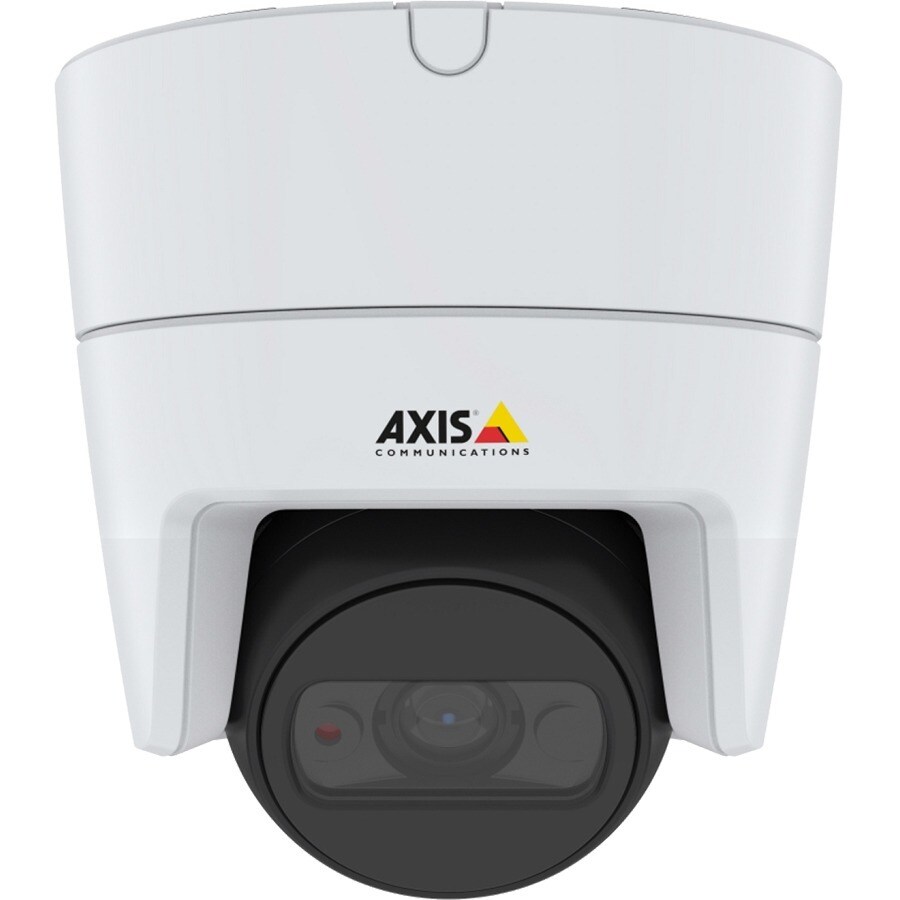

AXIS M3116-LVE CompactMini DOME

AXIS M3116-LVE CompactMini DOME

AXIS M3116-LVE CompactMini DOME

Product Overview

AXIS M3116-LVE 4 Megapixel Indoor/Outdoor Network Camera - Colour - Dome - White - 20 m Infrared Night Vision - H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), H.264 HP, H.265, H.265 (MPEG-H Part 2/HEVC), H.265 (MP), Motion JPEG - 2688 x 1512 - 2.40 mm Fixed Lens - 30 fps - RGB CMOS - Pole Mount, Ceiling Mount, Conduit Mount, Pendant Mount, Wall Mount, Gang Box Mount, Junction Box Mount, Lighting Track Mount, Corner Mount, Bracket Mount - IK08 - IP66, IP67 - Impact Resistant, Vanda

AXIS M3116-LVE is an affordable, flat-faced dome that offers 4 MP video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It's ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.

Smooth, sharp video


AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It's perfect for monitoring inside and outside of various premises where there's often poor light conditions.

Light up the night


This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you'll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there's no need for extra lighting- you get unobtrusive surveillance both day and night.

Fits in anywhere


AXIS M3116-LVE offers flexible and reliable installation. It's suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.

It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.

  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 2688 x 1512 resolution for surveillance in real-time
  • Up to 20 m of night vision

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution4 Megapixel
Field of ViewHorizontal field of view : 130 ° ;Vertical field of view : 72 °
Environmental Conditions
Minimum Operating Temperature-30°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/2.1
Maximum Focal Length2.40 mm
Lens IncludedYes
Technical Information
Night VisionYes
HD RecordingYes
Night Vision Distance20 m
Night Vision TypeInfrared
Physical Characteristics
Weight (Approximate)390 g
DurabilityImpact Resistant
Vandal Resistant
Form FactorDome
Mount TypeWall Mount
Pendant Mount
Lighting Track Mount
Junction Box Mount
Gang Box Mount
Corner Mount
Conduit Mount
Ceiling Mount
Bracket Mount
Pole Mount
Diameter101 mm
Height94 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number01605001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM3116-LVE
Product NameM3116-LVE Network Camera
Product SeriesM31
Brand NameAXIS
Video
Video FormatsH.265 (MPEG-H Part 2/HEVC)
Motion JPEG
H.264 (MPEG-4 Part 10/AVC)
H.264 BP
H.264 HP
H.265
H.265 (MP)
H.264
H.264 (MP)
Maximum Video Resolution2688 x 1512
Maximum Frame Rate30 fps
Miscellaneous
FeaturesWide Dynamic Range
White Balance
SD Card Local Storage
Removable IR Cut-off Filter
PTZ
Privacy Masking
Password Protection
Motion Detection
HTTPS Encryption
Defog
Day/Night
Auto Gain Control
Active Tampering Alarm
Impact Protection RatingIK08
Ingress Protection RatingIP66
IP67
NDAA CompliantYes
