Product Overview

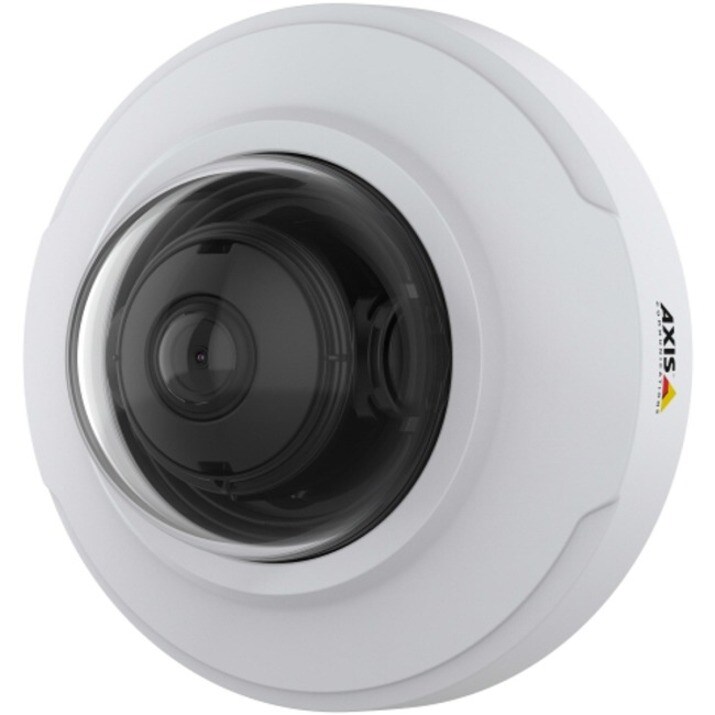

AXIS M3066-V 4 Megapixel HD Network Camera - Mini Dome - White - H.264, H.265, MJPEG - 2304 x 1728 Fixed Lens - 30 fps - RGB CMOS - HDMI - Pendant Mount, Wall Mount, Conduit Mount, Recessed Mount, Gang Box Mount

Are you looking for an attractively priced, ultra-compact mini dome that delivers sharp 4 MP video quality even in poor light? From retail stores to hotel interiors, AXIS M3066-V offers flexible installation options as well as support for intelligent analytics.

Great value for money

AXIS M3066-V features Wide Dynamic Range (WDR) for clarity when there's both dark and light areas in the scene. It offers 4 MP video quality and day/night functionality to ensure light sensitivity and high quality black and white images in poor light. And, the HDMI port lets you display live video on a public viewing monitor or setup a virtual window for the backdoor or entrance. This discreet fixed mini dome supports intelligent analytics such as AXIS Queue Monitor for improved business efficiency. Plus, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.

Cost-efficient installation

To keep implementation costs low, AXIS M3066-V is designed for fast and easy installation. It comes factory focused so there's no manual focusing required. The sleek design benefits from no visible screws, and the casing simply snaps on. Plus, the camera's connectors are easily accessible so you can quickly connect to the HDMI port or insert an SD card. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.

Fits in anywhere

Designed for reliable and effortless installation, this ultra-compact camera can be easily mounted on walls or ceilings. Kits are also available for recessed and pendant mounting as well as installation on conduits. The impact-resistant, IP42-rated casing can be repainted to blend in discreetly and seamlessly with any interior color scheme. And, there's an optional black casing available. Furthermore, this product is made with 52% recycled plastics and it's free of hazardous brominated and chlorinated flame retardants (BFR/CFR free). This not only helps to increase the cameras health and performance, it also lowers environmental impacts.

  • Features RGB CMOS sensor
  • For remote surveillance needs, this network camera is best suited
  • Up to 2304 x 1728 resolution for surveillance in real-time

Technical Specifications

Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32500 Second
Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution4 Megapixel
Field of ViewHorizontal field of view : 131 ° ; Vertical field of view : 97 °
Environmental Conditions
Minimum Operating Temperature0°C
Maximum Operating Temperature45°C
Maximum Operating Humidity85%
Physical Characteristics
Weight (Approximate)150 g
Form FactorMini Dome
Mount TypeWall Mount
Recessed Mount
Pendant Mount
Conduit Mount
Gang Box Mount
Diameter101 mm
Height56 mm
Product ColorWhite
Color FamilyWhite
Lens
Maximum Aperturef/2.1
Maximum Focal Length2.40 mm
Lens IncludedYes
Miscellaneous
FeaturesDay/Night
Digital Wide Dynamic Range (D-WDR)
Impact Protection RatingIK08
Ingress Protection RatingIP42
Video
Video FormatsMJPEG
H.265
H.264
Maximum Video Resolution2304 x 1728
Maximum Frame Rate30 fps
General Information
Product TypeNetwork Camera
Manufacturer Part Number01708-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM3066-V
Product NameM3066-V Network Camera
Product SeriesM30
Brand NameAXIS
