Product Overview

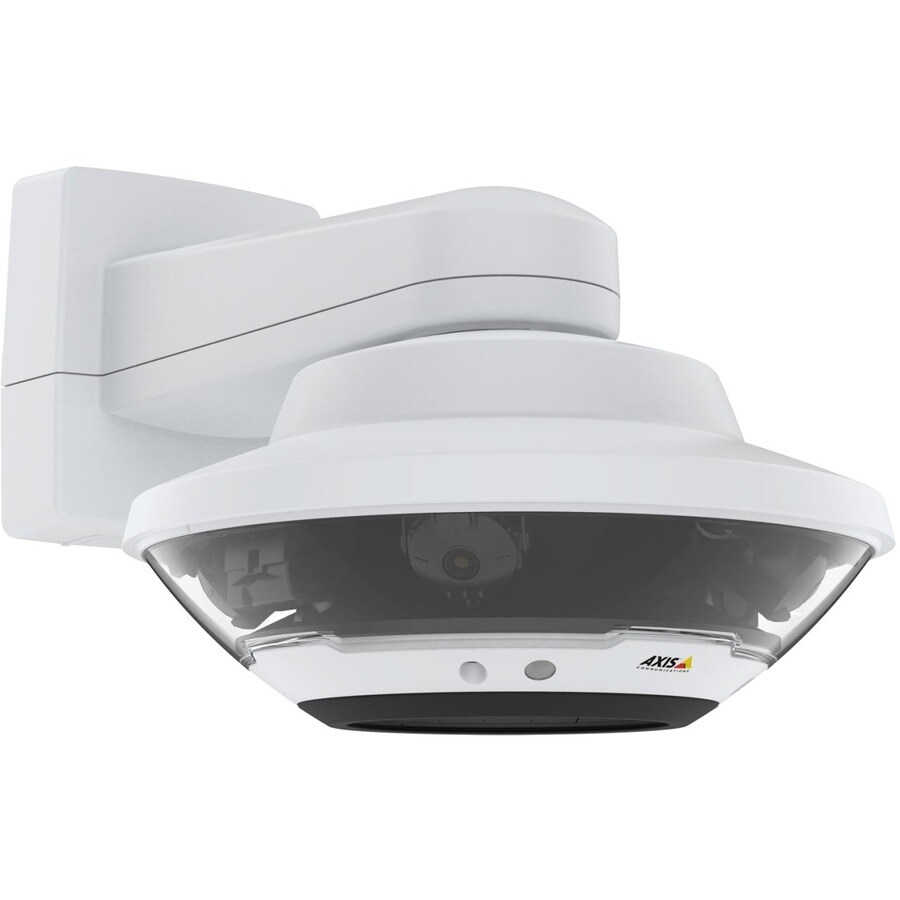

AXIS Q6100-E 5 Megapixel HD Network Camera - Colour - Dome - White - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.264, H.265, Zipstream - 2592 x 1944 - 2.80 mm Fixed Lens - 20 fps - RGB CMOS - IK10 - IP66

AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares. When used with AXIS Q63-Series camera, an AXIS Camera Heater Power Supply is required.

Total situational awareness- 24/7

Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.

Great images to cover your areas of interest

AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Easy, cost-efficient installation

Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.

  • Features RGB CMOS sensor
  • For remote surveillance needs, this network camera is best suited
  • Up to 2592 x 1944 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/20 Second
Shortest Shutter Speed1/32500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Environmental Conditions
Minimum Operating Temperature-40°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/2
Maximum Focal Length2.80 mm
Lens IncludedYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution5 Megapixel
Field of ViewHorizontal field of view: 360° Vertical field of view: 84
Number of Sensors4
Video
Video FormatsZipstream
H.265 (MPEG-H Part 2/HEVC)
H.265
H.264 (MPEG-4 Part 10/AVC)
H.264
Maximum Video Resolution2592 x 1944
Maximum Frame Rate20 fps
Physical Characteristics
Weight (Approximate)4 kg
Form FactorDome
Diameter361 mm
Height192 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number01710001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ6100-E
Product NameQ6100-E Network Camera
Product SeriesQ61
Brand NameAXIS
Miscellaneous
FeaturesPTZ
Password Protection
Tampering Alarm
SD Card Local Storage
Motion Detection
Audio Detection
Day/Night
HTTPS Encryption
Impact Protection RatingIK10
Ingress Protection RatingIP66
