Q9216-SLV WHITE corner-mountCAM
Q9216-SLV WHITE corner-mountCAM
Product Overview
AXIS Q9216-SLV 4 Megapixel HD Network Camera - Dome - White - 15 m - H.264, H.265, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG - 2304 x 1728 Fixed Lens - 60 fps - RGB CMOS - Conduit Mount, Corner Mount - Impact Resistant

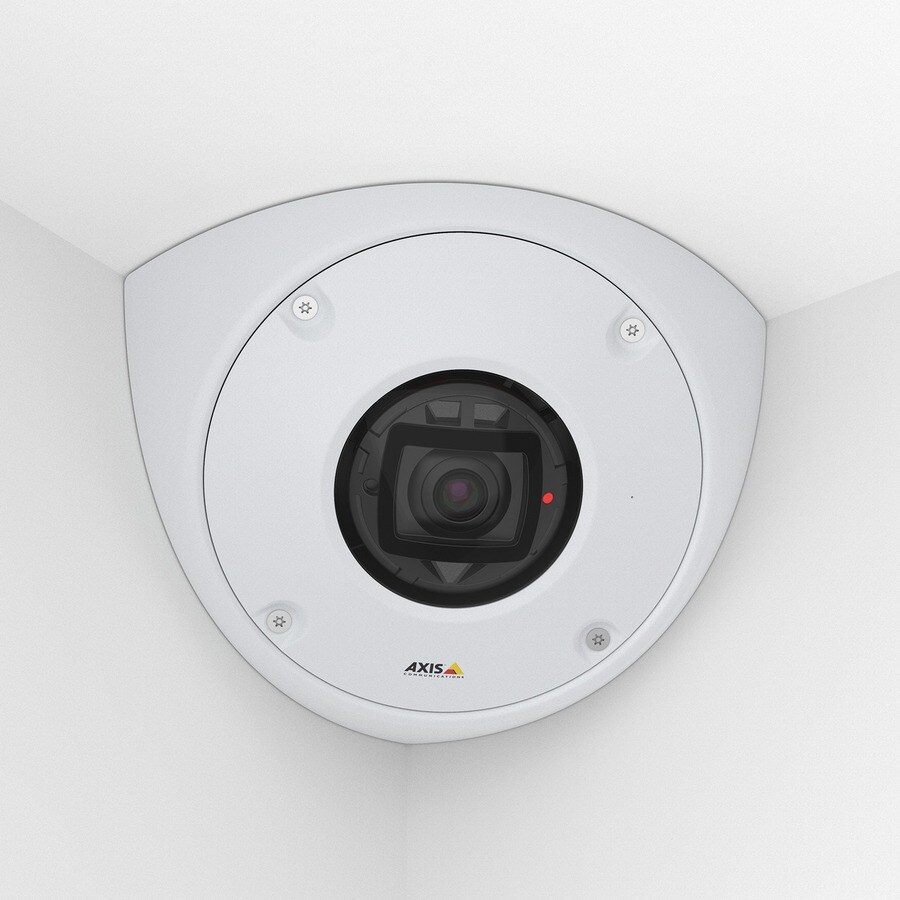

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it's ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.- Anti-ligature, robust (IK10+)
- Corner camera - no blind spots
- WDR and invisible IR (940 nm)
- Compact design - easy to install
- Zipstream supporting H.264 and H.265
- Features RGB CMOS sensor
- Network camera - Helps achieve high-quality video results
- Up to 2304 x 1728 resolution for surveillance in real-time
- Provides night vision of objects at a distance of up to 15 m
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Exposure
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/32500 Second |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Technical Information
| HD Recording | Yes |
| Night Vision Distance | 15 m |
Display & Graphics
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Field of View | Horizontal field of view: 125° Vertical field of view: 95° |
Environmental Conditions
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 50°C |
| Maximum Operating Humidity | 85% |
Lens
| Maximum Aperture | f/2 |
| Maximum Focal Length | 2.40 mm |
| Lens Mount Type | M12-mount |
| Lens Included | Yes |
Physical Characteristics
| Weight (Approximate) | 1.60 kg |
| Durability | Impact Resistant |
| Form Factor | Dome |
| Mount Type | Conduit Mount |
| Corner Mount | |
| Height | 131 mm |
| Width | 209 mm |
| Depth | 176 mm |
| Product Color | White |
| Color Family | White |
General Information
| Product Type | Network Camera |
| Manufacturer Part Number | 01767-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | Q9216-SLV |
| Product Name | Q9216-SLV Network Camera |
| Brand Name | AXIS |
Video
| Video Formats | MJPEG |
| H.265 (MPEG-H Part 2/HEVC) | |
| H.264 (MPEG-4 Part 10/AVC) | |
| H.264 | |
| H.265 | |
| Maximum Video Resolution | 2304 x 1728 |
| Maximum Frame Rate | 60 fps |
Miscellaneous
| Features | Built-in Microphone |
| Day/Night | |
| HTTPS Encryption | |
| Motion Detection | |
| Password Protection | |
| Privacy Masking | |
| SD Card Local Storage | |
| Tampering Alarm | |
| Shock Detection | |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP69 |
| IP66 | |
| IP6K9K |
