EXCAM XF P1377 Exp protected PoE powered

EXCAM XF P1377 Exp protected PoE powered

EXCAM XF P1377 Exp protected PoE powered

Product Overview

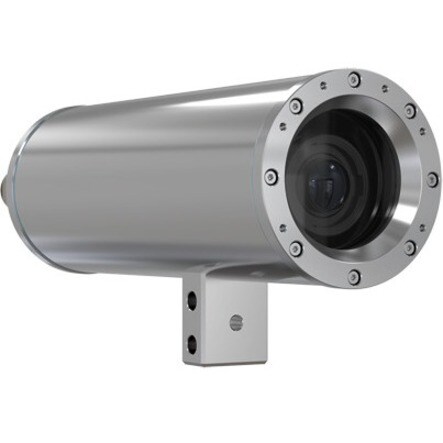

AXIS ExCam XF P1377 5 Megapixel Outdoor Network Camera - Colour - H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), H.264 HP, H.265, H.265 (MPEG-H Part 2/HEVC), Motion JPEG - 2592 x 1944 - 3.90 mm- 10 mm Varifocal Lens - 2.6x Optical - 180 fps - RGB CMOS - Junction Box Mount, Pole Mount, Wall Mount - IP66 - Explosion Proof

ExCam XF P1377 is designed to deliver sharp images of people and objects even in challenging light conditions. Enclosed in a stainless steel housing, it's internationally certified (ATEX, IECEx, EAC Ex, IA and CCOE) for use in potentially combustible environments and can withstand temperatures as low as -60 °C and as high as 60 °C (-76 °F to 140°F). It offers high quality, high resolution images, built-in cybersecurity features, extended capabilities for analytics and significantly more efficient video compression.

Packed with valuable functionality

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. Based on open standards, ExCam XF P1377 supports a wide range of 3rd party analytics so it's easy to add analytics and other applications to meet specific security and business requirements.

Excellent image quality in any light

With 25/30 fps in 5 MP and up to 180 fps in HDTV 720p, ExCam XF P1377 captures excellent detailed images of fast-moving people and objects. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. Additionally, it features electronic image stabilization for stable images in situations where the camera is subject to vibrations. Axis Zipstream with support for H.264/H.265 provides exceptional savings on bandwidth and storage requirements without compromising image quality.

For demanding conditions

With a robust, explosion-protected housing, ExCam XF P1377 is certified for use in potentially combustible environments, according to international standards ATEX, IECEx, EAC Ex, IA and CCOE. It can withstand temperatures as low as -60 °C and as high as 60 °C (-76 °F to 140°F).

ExCam XF P1377 also makes installation and configuration fast, easy, and cost-effective. It's powered by Power over Ethernet (PoE) with just one ethernet cable for both power and network access. It comes with a pre-connected 5 m (16 ft) non-armored cable. And, intelligent i-CS lens technology facilitates fast and easy configuration with remote zoom.

  • Features RGB CMOS sensor
  • For remote surveillance needs, this network camera is best suited
  • Up to 2592 x 1944 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage26 V DC
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/5000 Second
Shortest Shutter Speed1/33500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution5 Megapixel
Field of View4:3 aspect ratio: Horizontal field of view: 75°-31° - Vertical field of view: 55°-23° 16:9 aspect ratio: Horizontal field of view: 75°-31° - Vertical field of view: 41°-17°
Environmental Conditions
Minimum Operating Temperature-50°C
Maximum Operating Temperature60°C
Maximum Operating Humidity100%
Miscellaneous
FeaturesMotion Detection
Password Protection
Privacy Masking
PTZ
Removable IR Cut-off Filter
SD Card Local Storage
Shock Detection
White Balance
Wide Dynamic Range
Active Tampering Alarm
Built-in Microphone
Day/Night
Defog
Electronic Image Stabilization
HTTPS Encryption
Microphone In
Ingress Protection RatingIP66
Physical Characteristics
Weight (Approximate)6.20 kg
DurabilityExplosion Proof
Mount TypeWall Mount
Pole Mount
Junction Box Mount
Lens
Optical Zoom2.6x
Maximum Aperturef/1.5
Maximum Focal Length10 mm
Minimum Focal Length3.90 mm
Lens Mount TypeCS-Mount
Lens IncludedYes
General Information
Product TypeNetwork Camera
Manufacturer Part Number01929001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelXF P1377
Product NameExCam XF P1377 Explosion-Protected Camera
Product LineExCam
Brand NameAXIS
Video
Video FormatsMotion JPEG
H.265 (MPEG-H Part 2/HEVC)
H.265
H.264 HP
H.264 BP
H.264
H.264 (MP)
H.264 (MPEG-4 Part 10/AVC)
Maximum Video Resolution2592 x 1944
Maximum Frame Rate180 fps
