Product Overview

AXIS Q6010-E 20 Megapixel Outdoor Network Camera - Colour - Dome - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.264, H.265 - 2592 x 1944 - 2.80 mm Fixed Lens - 20 fps - Corner Mount, Ceiling Mount, Pole Mount, Parapet Mount, Wall Mount, Pendant Mount - IK10 - IP66 - Vandal Resistant

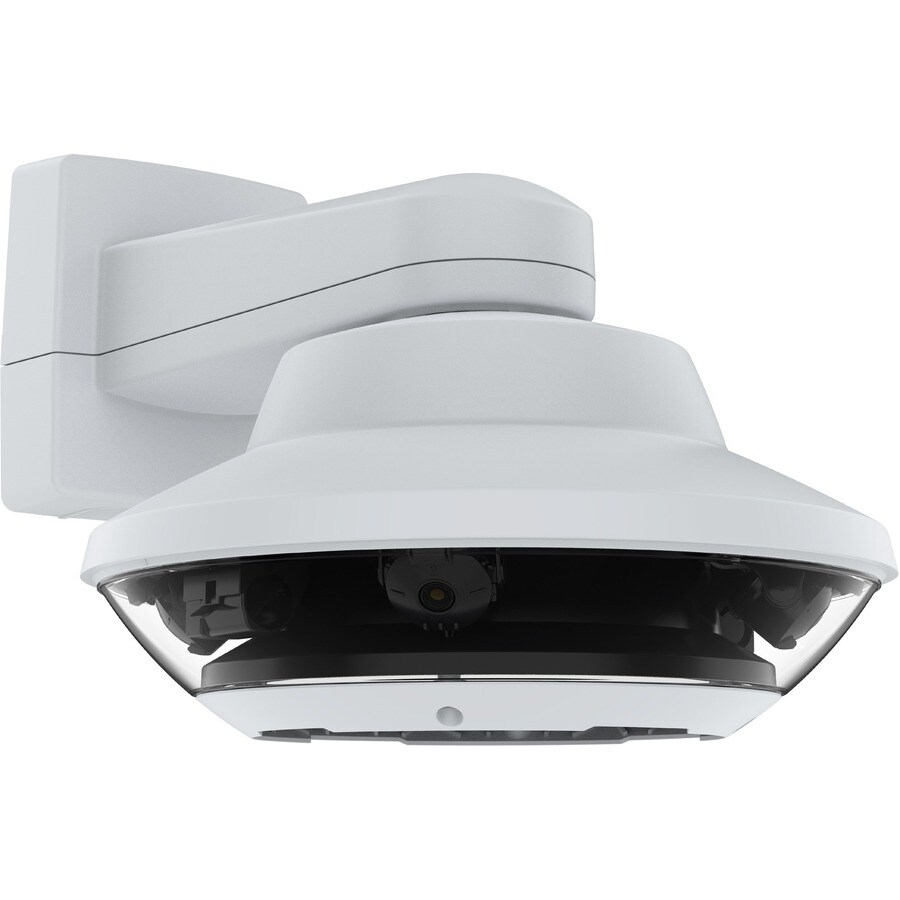

AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with any AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.

Total situational awareness- 24/7

Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with any AXIS Q60-E PTZ Network Camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.

Great image quality - day and night

AXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.

Cost-efficient installation

Using the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.

  • For remote surveillance needs, this network camera is best suited
  • Up to 2592 x 1944 resolution for surveillance in real-time

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/20 Second
Shortest Shutter Speed1/32500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Effective Camera Resolution20 Megapixel
Field of ViewHorizontal 360°, Vertical 84°
Number of Sensors4
Environmental Conditions
Minimum Operating Temperature-50°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/2
Maximum Focal Length2.80 mm
Lens IncludedYes
Miscellaneous
FeaturesPassword Protection
SD Card Local Storage
Wide Dynamic Range
Motion Detection
HTTPS Encryption
Day/Night
Active Tampering Alarm
Impact Protection RatingIK10
Ingress Protection RatingIP66
Video
Video FormatsH.265
H.264 (MPEG-4 Part 10/AVC)
H.264
H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution2592 x 1944
Maximum Frame Rate20 fps
General Information
Product TypeNetwork Camera
Manufacturer Part Number01980001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ6010-E
Product NameQ6010-E Network Camera
Product SeriesQ60
Brand NameAXIS
Physical Characteristics
Weight (Approximate)4.50 kg
DurabilityVandal Resistant
Form FactorDome
Mount TypePole Mount
Pendant Mount
Parapet Mount
Corner Mount
Ceiling Mount
Wall Mount
Diameter395 mm
Height201 mm
