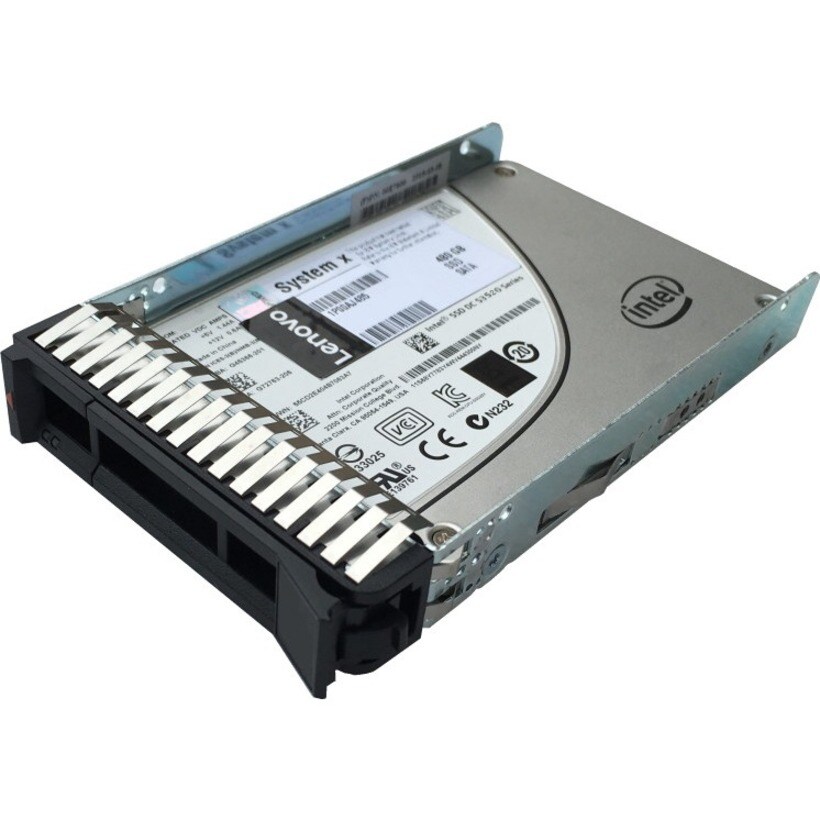

INTEL S3520 1.6TB ENTER SATA 2.5IN SSD
INTEL S3520 1.6TB ENTER SATA 2.5IN SSD
Product Overview
INTEL S3520 1.6TB ENTERPRISE ENTRY SATA G3HS 2.5 SSD
Abstract
The S3520 Enterprise Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S3520 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S3520 SSDs and consider their use in IT solutions.
Introduction
The S3520 Enterprise Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution with industry leading performance. Compared with the Intel S3510 series, these new drives offer significantly improved endurance and lower power consumption. The S3520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Did you know?
By combining the latest MLC NAND flash memory technology with Intel's latest controller technology, the design of the S3520 Enterprise Entry SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.
Rigorous testing of S3520 Enterprise Entry SATA SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty.
- Have data stored faster with SATA/600 interface that optimizes burst performance
- 256-bit encryption protects your PC from hackers and thieves by encoding all your data
- The high-read speed of 450 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 380 MB/s, get a quick response when updating or transferring files
- Store as many documents, pictures and videos as you need with 1.60 TB capacity
Technical Specifications
| Wireless LAN | No |
| Operating Power Consumption | 3.50 W |
| Maximum Read Transfer Rate | 450 MB/s |
| Maximum Write Transfer Rate | 380 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Hot Swappable | Yes |
| Weight (Approximate) | 66 g |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 7 mm |
| Width | 70 mm |
| Depth | 100 mm |
| Storage Capacity | 1.60 TB |
| Encryption Standard | 256-bit |
| Compatibility |
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 01GR817 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Name | Intel S3520 1.6TB Enterprise Entry SATA G3HS 2.5" SSD |
| Product Series | DC S3520 |
| Brand Name | Lenovo |
