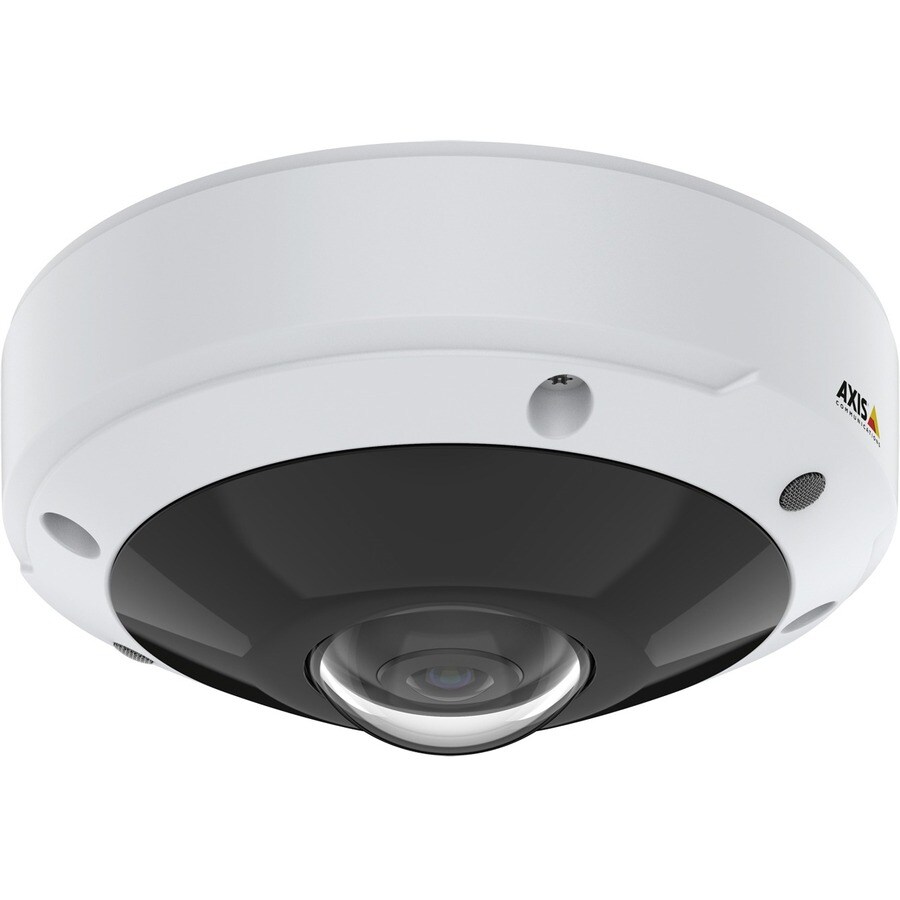

AXIS M3077-PLVE 6 MP sensor 360 mini dom
AXIS M3077-PLVE 6 MP sensor 360 mini dom
Product Overview
AXIS M3077 6 Megapixel Outdoor HD Network Camera - Colour - Dome - White - 20 m Infrared Night Vision - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.264, H.265, MJPEG - 2560 x 1920 - 1.56 mm Fixed Lens - 60 fps - RGB CMOS - Pendant Mount, Conduit Mount, Ceiling Mount, Pole Mount, Wall Mount, Corner Mount, Lighting Track Mount, Parapet Mount - IK10 - IP66
6 MP outdoor-ready with 360° panoramic view and audio capture:With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
- Features RGB CMOS sensor
- For remote surveillance needs, this network camera is best suited
- Up to 2560 x 1920 video resolution
- Up to 20 m of night vision
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Storage
| Storage Type | Memory Card |
Exposure
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/16000 Second |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Display & Graphics
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 6 Megapixel |
| Field of View | Horizontal field of view: 183° Vertical field of view: 183° |
Environmental Conditions
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 50°C |
| Maximum Operating Humidity | 100% |
Lens
| Maximum Aperture | f/2 |
| Maximum Focal Length | 1.56 mm |
| Lens Included | Yes |
Miscellaneous
| Features | Audio Detection |
| Auto Gain Control | |
| Wide Dynamic Range | |
| Video Management System | |
| Automatic White Balance | |
| Built-in IR LED | |
| Built-in Microphone | |
| Day/Night | |
| Motion Detection | |
| Multi-view Stream | |
| Noise Reduction | |
| Privacy Masking | |
| PTZ | |
| Removable IR Cut-off Filter | |
| SD Card Local Storage | |
| Tampering Alarm | |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
Technical Information
| Night Vision | Yes |
| HD Recording | Yes |
| Night Vision Distance | 20 m |
| Night Vision Type | Infrared |
Video
| Video Formats | H.264 |
| H.264 (MPEG-4 Part 10/AVC) | |
| H.265 | |
| H.265 (MPEG-H Part 2/HEVC) | |
| MJPEG | |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 60 fps |
General Information
| Product Type | Network Camera |
| Manufacturer Part Number | 02018001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | M3077 |
| Product Name | M3077-PLVE Network Camera |
| Product Series | M30 |
| Brand Name | AXIS |
Physical Characteristics
| Weight (Approximate) | 700 g |
| Form Factor | Dome |
| Mount Type | Corner Mount |
| Lighting Track Mount | |
| Parapet Mount | |
| Pole Mount | |
| Conduit Mount | |
| Ceiling Mount | |
| Wall Mount | |
| Pendant Mount | |
| Diameter | 149 mm |
| Height | 66 mm |
| Product Color | White |
| Color Family | White |
