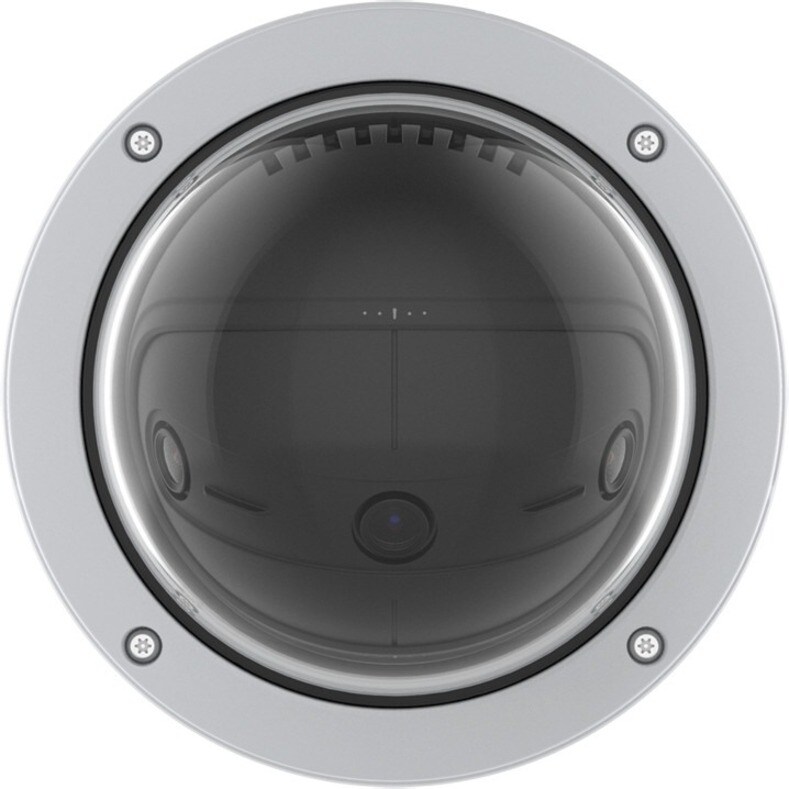

AXIS P3818-PVE 180 dgr panoramic overvie
AXIS P3818-PVE 180 dgr panoramic overvie
Product Overview
AXIS Panoramic P3818-PVE 13 Megapixel Outdoor 4K Network Camera - Colour - Dome - White - TAA Compliant - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.265, H.264, Zipstream - 5120 x 2560 - 3.20 mm Fixed Lens - 30 fps - RGB CMOS - Junction Box Mount, Wall Mount, Ceiling Mount, Recessed Mount, Pendant Mount, Pole Mount - IK10 - IP66, IP67 - Impact Resistant, Vandal Resistant
With 13 MP resolution, AXIS P3818-PVE offers seamless stitching of all three images. It delivers a 180º panoramic overview of extensive areas with excellent image usability for quick and intuitive situational awareness.
Complete coverage with support for audio input
AXIS P3818-PVE is perfect when you need to see the whole picture. This multisensor camera offers seamless stitching of all three images to deliver a seamless 180° panoramic overview of extensive areas and excellent image usability. You get 180° horizontal coverage, and 90° vertical coverage with no blind spots. It's possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Featuring edge-to-edge technology, it's easy to add support for audio-out using AXIS network speakers, and audio-input directly into the camera enables you to listen in to transactions or incidents.
Brilliant, seamless images
The single smooth and cohesive video stream is what really sets AXIS P3818-PVE apart. This 13 MP multisensor camera offers seamless 180° panoramic coverage and captures ultra-high resolution images with incredible details up to 30 fps. With seamless stitching across all 3 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center. And, the camera automatically optimizes white balance and exposure time. Furthermore, thanks to Forensic WDR, it offers excellent image usability.
Cost-efficient, flexible, and secure
This cost-efficient camera gives you the benefits of three cameras while paying for just one. And, fewer cameras are needed to cover large areas. It features remote pan/tilt/roll functionality for fast, cost-efficient installation. Additionally, it offers a wide variety of mounting options - recessed, flush, pendant, or even back-to-back. Plus, it offers adjustable positions for fast and easy mounting on walls, ceilings, or in a corridor. AXIS P3818-PVE offers built-in cybersecurity features including Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Built-in cybersecurity features
Prevent unauthorized access and safeguard your system
Wide Dynamic Range - WDR
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Lightfinder
Capture color images in low-light conditions.
- 13 MP multisensor with seamless stitching
- 180° horizontal, 90° vertical coverage
- Seamless pan/tilt/roll
- AXIS Edge Vault
- Built-in cybersecurity features
Technical Specifications
Network (RJ-45) | Yes |
Storage Type | Memory Card |
HD Recording | Yes |
Longest Shutter Speed | 1/25 Second |
Shortest Shutter Speed | 1/91000 Second |
Connectivity Technology | Wired |
Remote Management | Yes |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 13 Megapixel |
Field of View | Horizontal field of view: 180° Vertical field of view: 90° |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 50°C |
Maximum Operating Humidity | 100% |
Maximum Aperture | f/2 |
Maximum Focal Length | 3.20 mm |
Lens Included | Yes |
Features | Removable IR Cut-off Filter |
SD Card Local Storage | |
White Balance | |
Wide Dynamic Range | |
Password Protection | |
Privacy Masking | |
Active Tampering Alarm | |
Audio Detection | |
Auto Gain Control | |
Built-in Microphone | |
Day/Night | |
HTTPS Encryption | |
Motion Detection | |
Noise Reduction | |
TAA Compliant | Yes |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP67 |
IP66 |
Product Type | Network Camera |
Manufacturer Part Number | 02060001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Model | P3818-PVE |
Product Name | P3818-PVE Panoramic Camera |
Product Line | Panoramic |
Brand Name | AXIS |
Video Formats | Zipstream |
Motion JPEG | |
H.265 (MPEG-H Part 2/HEVC) | |
H.264 (MPEG-4 Part 10/AVC) | |
H.264 | |
H.265 | |
Maximum Video Resolution | 5120 x 2560 |
Maximum Frame Rate | 30 fps |
Weight (Approximate) | 2.20 kg |
Durability | Vandal Resistant |
Impact Resistant | |
Form Factor | Dome |
Mount Type | Wall Mount |
Ceiling Mount | |
Junction Box Mount | |
Pendant Mount | |
Pole Mount | |
Recessed Mount | |
Diameter | 195 mm |
Height | 170 mm |
Product Color | White |
Color Family | White |
