Product Overview

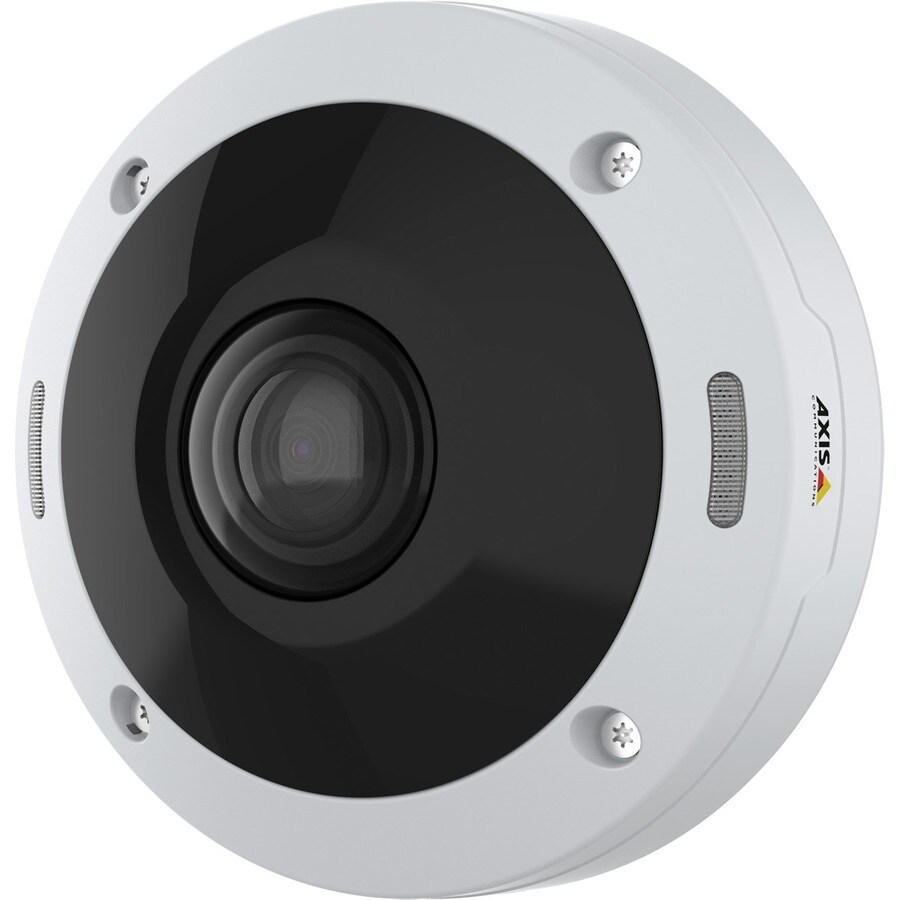

AXIS M4308-PLE 12 Megapixel Outdoor Network Camera - Colour - Dome - White - 15 m Infrared Night Vision - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264 BP, H.264 (MP), H.264 (MP), H.265 (MP), Zipstream, H.264, H.265 - 2880 x 2880 - 1.30 mm Fixed Lens - 30 fps - CMOS - Recessed Mount, Bracket Mount - IK10, IK09 - IP66 - Vandal Resistant

This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.

Extended possibilities

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.

Sharp images and audio

Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera's peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you'll be sure to record everything with no blind spots.

Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It's delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • For remote surveillance needs, this network camera is best suited
  • Up to 2880 x 2880 video resolution
  • Up to 15 m of night vision

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/22000 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeCMOS
Effective Camera Resolution12 Megapixel
Field of ViewHorizontal field of view: 183° Vertical field of view: 183°
Environmental Conditions
Minimum Operating Temperature-40°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/2.4
Maximum Focal Length1.30 mm
Lens IncludedYes
Technical Information
Night VisionYes
HD RecordingYes
Night Vision Distance15 m
Night Vision TypeInfrared
Video
Video FormatsH.264
H.265 (MPEG-H Part 2/HEVC)
H.264 (MPEG-4 Part 10/AVC)
H.265 (MP)
H.265
H.264 BP
H.264 (MP)
Zipstream
Motion JPEG
Maximum Video Resolution2880 x 2880
Maximum Frame Rate30 fps
General Information
Product TypeNetwork Camera
Manufacturer Part Number02100001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM4308-PLE
Product NameM4308-PLE Panoramic Camera
Brand NameAXIS
Physical Characteristics
Weight (Approximate)850 g
DurabilityVandal Resistant
Form FactorDome
Mount TypeRecessed Mount
Bracket Mount
Diameter149 mm
Height69 mm
Product ColorWhite
Color FamilyWhite
Miscellaneous
FeaturesBuilt-in Infrared Illuminator
Wide Dynamic Range
White Balance
SD Card Local Storage
Password Protection
Motion Detection
HTTPS Encryption
Day/Night
Built-in Microphone
Audio Detection
Impact Protection RatingIK09
IK10
Ingress Protection RatingIP66
