Product Overview
AXIS Ex Connection Rail 4 Ports Ethernet Switch - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 Layer Supported - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, Rack-mountable

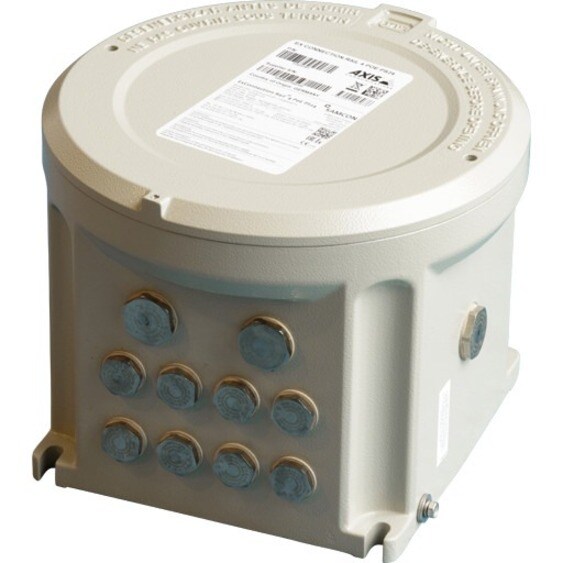

Ex Connection Rail PoE is available with 4 or 8 ports. They are high-performance PoE switches with 24 V DC power supply for hazardous areas. They are designed to connect explosion-protected network cameras in the ExCam series over long distances. The network connection can be realized via optical fibers or copper-bound Ethernet. The power supply provides additional power to heat up the cameras in sub-zero environments. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and ready for wall mounting.- Long-distance connection
- Resistant to corrosion
- Provides extra power for sub-zero environments
- Ready for wall mounting
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 4 networking ports
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 1.0 |
Power Description
| Power Source | AC/DC |
| PoE (RJ-45) Port | Yes |
Network & Communication
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3af |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 1 x Fast Ethernet Network |
| 4 x Fast Ethernet PoE+ | |
| 1 x Fast Ethernet Expansion Slot |
Media & Performance
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Physical Characteristics
| Weight (Approximate) | 16 kg |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Length | 227 mm |
| Product Material | Aluminium Alloy |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 02106-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Name | Ex Connection Rail 4-port PoE |
| Product Line | Ex Connection Rail |
| Brand Name | AXIS |
