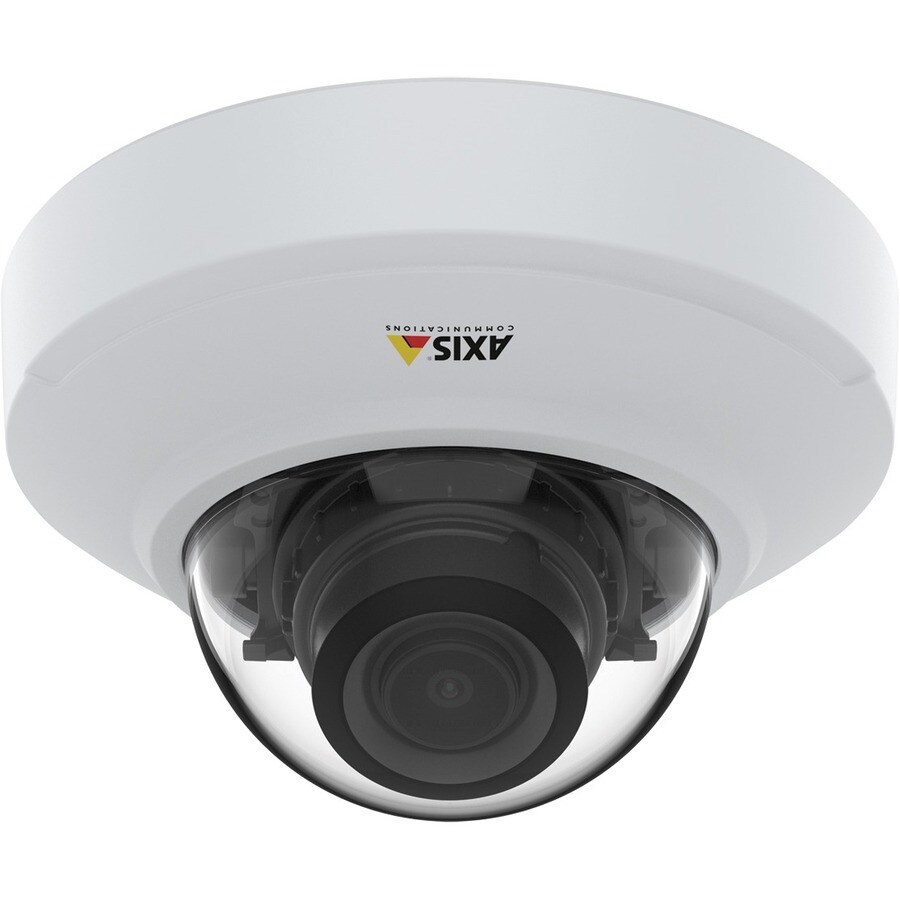

AXIS M4216-V Compact varifocal D/N mini
AXIS M4216-V Compact varifocal D/N mini
Product Overview
AXIS M4216-V 4 Megapixel Network Camera - Colour - Dome - H.265 (MPEG-H Part 2/HEVC), H.264 (MPEG-4 Part 10/AVC), H.264M, H.264H, H.265M, H.265H, MJPEG - 2304 x 1728 - 3 mm- 6 mm Varifocal Lens - 2x Optical - 60 fps - RGB CMOS - HDMI - Wall Mount, Ceiling Mount, Recessed Mount, Gang Plate - IK08 - IP42 - Water Resistant, Dust Resistant, Impact Resistant
Compact, varifocal, D/N mini dome with dust- and vandal-resistant casing for easy indoor mounting. 3-6 mm lens with remote zoom and focus simplifying the installation. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 4MP in 4:3, 3MP in 16:9, max 30 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. HDMI output (micro). MicroSD memory card slot for optional local video storage. AXIS Edge Vault for increased Cyber Security
- Features RGB CMOS sensor
- For remote surveillance needs, this network camera is best suited
- Up to 2304 x 1728 resolution for surveillance in real-time
Technical Specifications
| Storage Type | Memory Card |
| HD Recording | Yes |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/37500 Second |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Field of View | Horizontal field of view: 100°-45° Vertical field of view: 72°-34° |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 45°C |
| Maximum Operating Humidity | 85% |
| Optical Zoom | 2x |
| Maximum Aperture | f/1.9 |
| Maximum Focal Length | 6 mm |
| Minimum Focal Length | 3 mm |
| Lens Included | Yes |
| Features | SD Card Local Storage |
| Shock Detection | |
| Vehicle Detection | |
| Wide Dynamic Range | |
| Day/Night | |
| Human Detection | |
| Mirror | |
| Motion Detection | |
| Password Protection | |
| Privacy Masking | |
| PTZ | |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
| Product Type | Network Camera |
| Manufacturer Part Number | 02112-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | M4216-V |
| Product Name | M4216-V Dome Camera |
| Product Series | M42 |
| Brand Name | AXIS |
| Video Formats | H.264H |
| H.264 (MPEG-4 Part 10/AVC) | |
| H.264M | |
| MJPEG | |
| H.265 (MPEG-H Part 2/HEVC) | |
| H.265H | |
| H.265M | |
| Maximum Video Resolution | 2304 x 1728 |
| Maximum Frame Rate | 60 fps |
| Weight (Approximate) | 350 g |
| Durability | Dust Resistant |
| Impact Resistant | |
| Water Resistant | |
| Form Factor | Dome |
| Mount Type | Lighting Track Mount |
| Gang Plate | |
| Ceiling Mount | |
| Wall Mount | |
| Pendant Mount | |
| Recessed Mount | |
| Diameter | 121 mm |
| Height | 71 mm |
