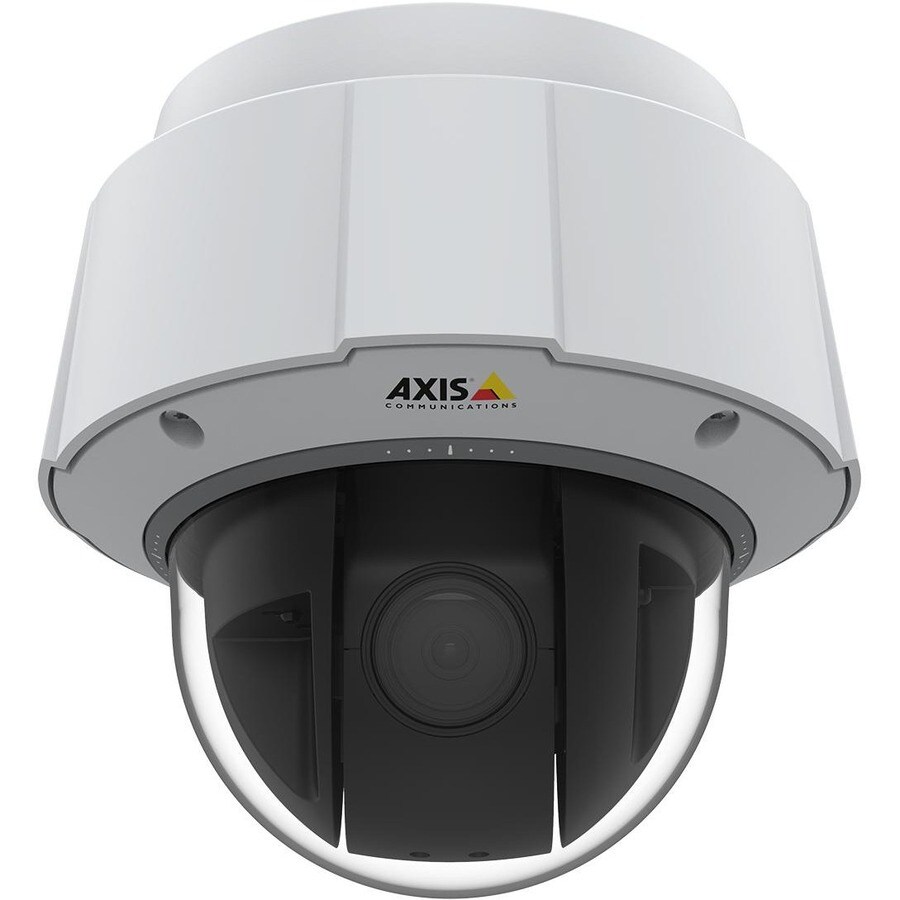

AXIS Q6078-E 50HZ PTZ

AXIS Q6078-E 50HZ PTZ

AXIS Q6078-E 50HZ PTZ

Product Overview

AXIS Q6078-E Outdoor 4K Network Camera - Colour - H.264, H.265, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, Zipstream - 3840 x 2160 - 4.40 mm- 88.40 mm Varifocal Lens - 20x Optical - 60 fps - CMOS - IK10 - IP66, IP67 - Vandal Resistant, Dust Resistant, Snow Resistant, Impact Resistant, Rain Resistant

This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It's ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.

Great overviews and superior detail

Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.

Whenever, wherever it's needed

This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.

Designed with cybersecurity in mind

 AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

  • UHD 4K with 20x optical zoom
  • Outstanding images with great details
  • Zipstream with support for H.264/H.265
  • AXIS Object Analytics
  • Built-in cybersecurity features

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/10000 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor Size1/2.5"
Image Sensor TypeCMOS
Field of ViewHorizontal field of view: 68.3°-4.2° Vertical field of view: 42.1°-2.34°
Environmental Conditions
Minimum Operating Temperature-50°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Optical Zoom20x
Maximum Aperturef/2.0
Maximum Focal Length88.40 mm
Minimum Focal Length4.40 mm
Minimum Aperturef/3.8
Lens IncludedYes
Miscellaneous
Package Contents
  • Q6078-E PTZ Camera
  • Axis High PoE 60 W SFP Midspan
  • 1-Port RJ45 Push-Pull Connector
  • Sunshield
  • Installation Guide
FeaturesDefog
Electronic Image Stabilization
HTTPS Encryption
Motion Detection
Password Protection
Privacy Masking
PTZ
White Balance
Wide Dynamic Range
Back Light Compensation (BLC)
Cross Line Detection
Day/Night
Impact Protection RatingIK10
Ingress Protection RatingIP66
IP67
Physical Characteristics
Weight (Approximate)3.75 kg
DurabilityRain Resistant
Impact Resistant
Dust Resistant
Snow Resistant
Vandal Resistant
Diameter232 mm
General Information
Product TypeNetwork Camera
Manufacturer Part Number02147-006
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ6078-E
Product NameQ6078-E PTZ Camera
Product SeriesQ60
Brand NameAXIS
Video
Video FormatsH.265 (MPEG-H Part 2/HEVC)
H.264H (MPEG-4 Part 10/AVC)
Zipstream
H.264B (MPEG-4 Part 10/AVC)
H.265
H.264
Motion JPEG
Maximum Video Resolution3840 x 2160
Maximum Frame Rate60 fps
