Product Overview

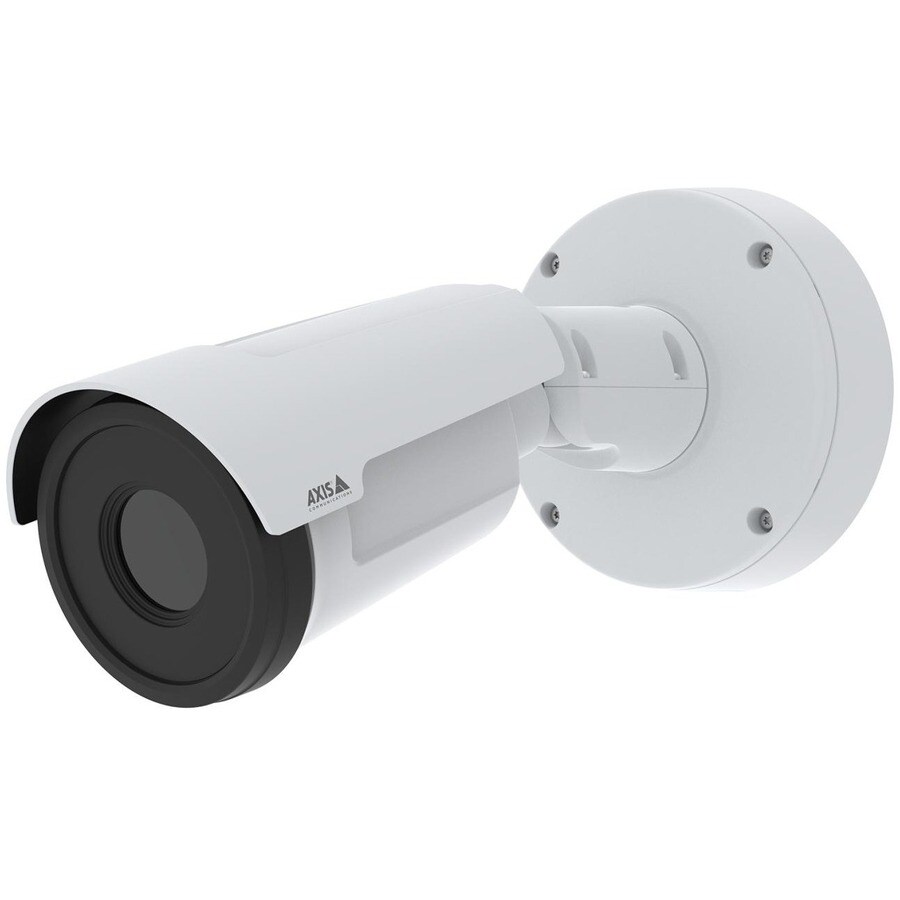

AXIS Q1961-TE Outdoor Network Camera - White - TAA Compliant - H.264, Zipstream, H.264B, H.264H, H.264M, Motion JPEG, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.265 (MP), H.265, Zipstream - 768 x 576 - 7 mm Fixed Lens - 8 fps - Uncooled Microbolometer - IK10 - IP66, IP67 - Impact Resistant, Corrosion Resistant

Ideal for improving operational efficiency, this halogen-free, thermometric camera lets you remotely monitor temperatures and trigger temperature-based events. Robust and impact-resistant, it offers early fire detection analytics and built-in cybersecurity features.

What's the temperature?

AXIS Q1961-TE lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F)*. So, you don't need to be onsite to know if your equipment is getting close to overheating - you'll receive a notification if the temperature passes a set threshold, or if it increases or decreases too rapidly. This allows you time to act to avoid unwanted downtime and it enables predictive maintenance planning. AXIS Q1961-TE supports up to 10 configurable polygonal detection areas, making it possible to monitor areas for specific temperature levels. With spot temperature reading, you can click on the image and see the exact temperature in the specific area. Furthermore, through metadata, you'll have access to temperature statistics.

Detect early signs of fire

In addition to offering powerful analytics capabilities, AXIS Q1961-TE comes with early fire detection preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. With smart filtering, it can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles, so you'll receive fewer false notifications.

Depend on it - robust and secure

Ideal for installation in harsh environments, this robust temperature measuring camera is highly resistant to corrosion. It offers great reliability and includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Electronic image stabilization (EIS) provides smooth video even in scenes with vibrations. Furthermore, thanks to edge-to-edge technology it's possible to connect a network speaker to enable audio alarms.

  • For remote surveillance needs, this network camera is best suited
  • Features Uncooled Microbolometer sensor
  • Up to 768 x 576 resolution for surveillance in real-time

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingNo
Display & Graphics
Image Sensor TypeUncooled Microbolometer
Field of ViewHorizontal field of view: 55°
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Power Description
Input Voltage10 V DC
28 V DC
Environmental Conditions
Minimum Operating Temperature-40°C
Maximum Operating Temperature60°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/1.18
Maximum Focal Length7 mm
Lens IncludedYes
Miscellaneous
FeaturesMotion Detection
Privacy Masking
SD Card Local Storage
Active Tampering Alarm
Audio Detection
Auto Gain Control
Electronic Image Stabilization
Fire Detection
Heater
Mirror
TAA CompliantYes
Impact Protection RatingIK10
Ingress Protection RatingIP66
IP67
Physical Characteristics
Weight (Approximate)1.40 kg
DurabilityImpact Resistant
Corrosion Resistant
Length272 mm
Diameter132 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number02173-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ1961-TE
Product NameQ1961-TE Thermal Camera
Product SeriesQ19
Brand NameAXIS
Video
Video FormatsH.264B
H.264H
H.264M
H.264
H.264 (MPEG-4 Part 10/AVC)
H.265
Zipstream
Motion JPEG
H.265 (MP)
H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution768 x 576
Maximum Frame Rate8 fps
Thermal Video Resolution384 x 288
