Product Overview

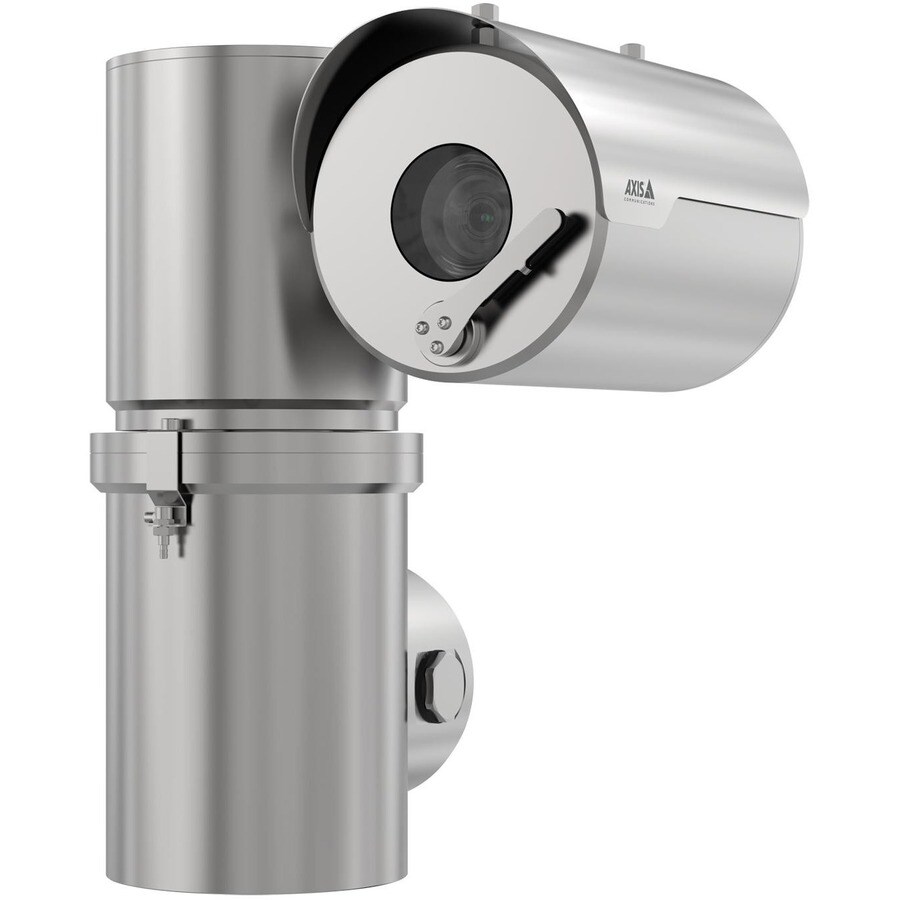

AXIS XPQ1785 Outdoor Full HD Network Camera - Colour - Turret - Night Vision - Zipstream, H.264, H.264B, H.264M, Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), MJPEG - 1920 x 1080 - 4.30 mm- 137 mm Varifocal Lens - 32x Optical - 60 fps - RGB CMOS - Wall Mount, Pole Mount - IK10, IK08 - IP67, IP66, IP68 - Weather Proof, Explosion Proof

Ideal for health, safety, environment (HSE) applications within potentially combustible areas, this robust PTZ camera includes early smoke and fire detection analytics. It has worldwide certifications for use in Class I/II/III Division 1 and Zone 1,21.

Protect your personnel and production

Featuring smoke alert analytics, AXIS XPQ1785 serves as an additional layer of safety, monitoring for signs of smoke or fire. If detected, operators are alerted so they can assess the situation to determine appropriate responses. Additionally, it allows you to safeguard the production processes from a distance. This helps ensure that you only send personnel into restricted, potentially combustible environments when necessary.

Total situational awareness

AXIS XPQ1785 offers HDTV 1080p resolution at up to 60 fps. It features 32x optical zoom and a continuous 360° pan and +/- 90° tilt rotation for fast camera repositioning and smooth, continuous tracking of objects. It's got Axis Forensic WDR for clarity even when there are both dark and light areas in the scene. Thanks to Lightfinder, you get sharp, color images in low light. And Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality. Plus, electronic image stabilization keeps the picture steady when the camera is exposed to vibrations.

Globally certified and suitable for all environments

AXIS XPQ1785 is a globally certified Class I/II/III Division 1 and Zone 1,21 stainless steel (316L) PTZ camera for use in hazardous areas (according to NEC, CEC, IECEx, ATEX, and more). It can withstand wide temperatures ranging from -60°C to 60°C (-76°F to 140°F). And, it's IP66, IP67, IP68-rated for protection against water and dust ingress. Furthermore, ease of installation is supported by a compact and low-weight design, with both RJ45 and SFP for fiber or coax and 110-240 V AC power input.

  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Display & Graphics
Image Sensor TypeRGB CMOS
Field of ViewHorizontal field of view: 60°-2.3° Vertical field of view: 39°-1.3°
Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/66500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Technical Information
Night VisionYes
HD RecordingYes
Environmental Conditions
Minimum Operating Temperature-60°C
Maximum Operating Temperature60°C
Maximum Operating Humidity100%
Lens
Optical Zoom32x
Maximum Aperturef/1.4
Maximum Focal Length137 mm
Minimum Focal Length4.30 mm
Minimum Aperturef/4
Lens IncludedYes
Miscellaneous
Package Contents
  • XPQ1785 Explosion-Protected PTZ Camera
  • Washer nozzle
  • M25 to ¾" NPT adapters Connector kit
  • Installation kit
FeaturesSmoke Detector
Wide Dynamic Range
Cross Line Detection
Day/Night
Defog
Electronic Image Stabilization
HTTPS Encryption
Video Management System
White Balance
PTZ
Password Protection
Motion Detection
Impact Protection RatingIK08
IK10
Ingress Protection RatingIP66
IP67
IP68
General Information
Product TypeNetwork Camera
Manufacturer Part Number02278001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelXPQ1785
Product NameXPQ1785 Explosion-Protected PTZ Camera
Brand NameAXIS
Physical Characteristics
Weight (Approximate)23 kg
DurabilityWeather Proof
Explosion Proof
Form FactorTurret
Mount TypePole Mount
Wall Mount
Height370.8 mm
Width238.8 mm
Depth302.3 mm
Video
Video FormatsZipstream
H.264M
H.264
MJPEG
H.264M (MPEG-4 Part 10/AVC)
Motion JPEG
H.264B (MPEG-4 Part 10/AVC)
H.264B
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
