Product Overview

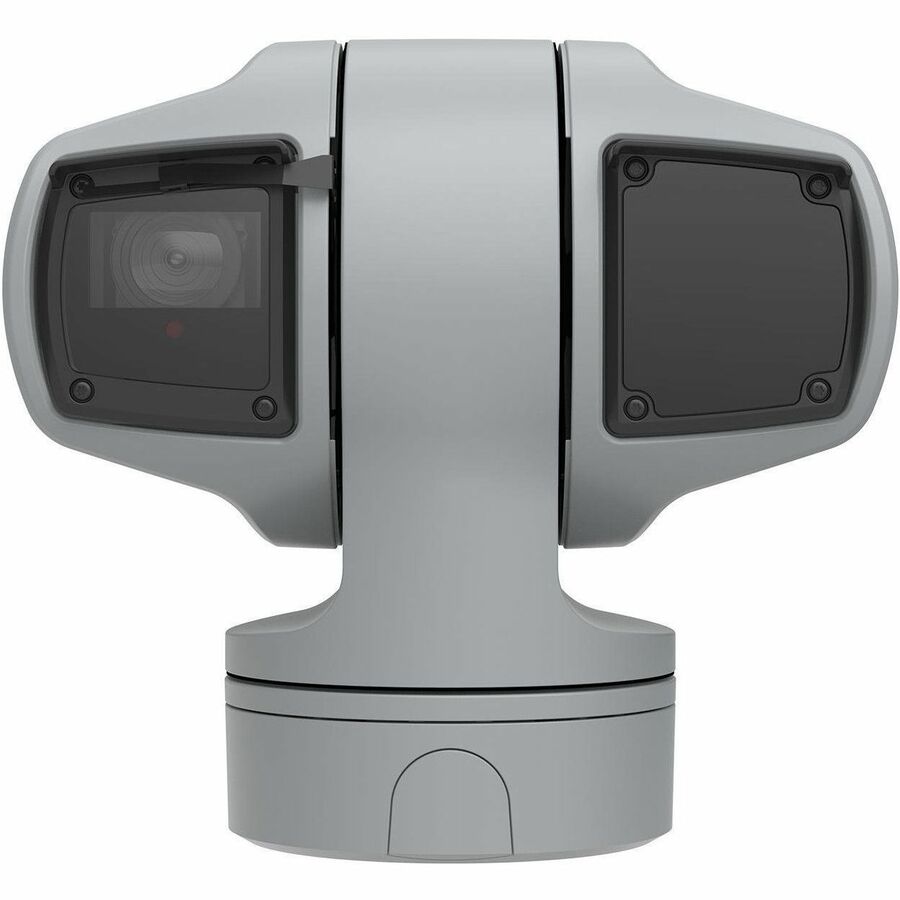

AXIS Q6225-LE Full HD Network Camera - Colour - Urban Grey - 400 mm Infrared Night Vision - H.264, H.265, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG - 1920 x 1080 - 6.91 mm- 214.64 mm Varifocal Lens - 31x Optical - 60 fps - CMOS - Gigabit Ethernet - IK10 - IP66, IP68 - Vandal Resistant

Ideal for wide and long-distance surveillance, AXIS Q6225-LE is specially designed with high precision PTZ and long-range OptimizedIR. It features a ½" sensor, 31x optical zoom, and built-in analytics to alert you when needed.

Heavy-duty and robust

This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. And it can withstand winds up to 245 km/h (152 mph). With vandal-resistant IK10-rated casing andNEMA 4X, NEMA TS-2, and IP66/IP68 ratings, you can rest assured that the camera housing is resistant to both harsh weather conditions and impacts. Thanks to the flexible design the camera can be mounted facing up or down depending on your needs. Furthermore, out-of-the-box it includes a bracket with sliders for safe and easy top-mounted installations.

Great image quality both far and wide

AXIS Q6225-LE offers HDTV 1080p resolution with 31x optical zoom. Thanks to long-rangeOptimizedIRup to 400 m (1312 ft) the camera's IR LEDs can automatically adjust to the camera zoom, so the entire field of view is always evenly illuminated. Plus, high-speed pan/tilt performance ensures exceptional coverage of large areas and great detail when zooming in. Featuring a very light-sensitive ½" inch sensor,Forensic WDR, and Lightfinder it ensures sharp, clear images even when there's both dark and light areas in the scene. Additionally,Zipstreamwith H.264/ H.265 significantly reduces bandwidth and storage requirements without sacrificing quality.

Intelligent protection

This high-performance PTZ camera is packed with built-in analytics to alert you when needed. It comes with AXIS Guard Suite analytics, including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for detecting motion, intrusion, and loitering. It also features autotracking functionality. And Axis Gatekeeper automatically moves the camera to a preset position when motion is detected in a pre-defined area. Thanks to Axis Object Analytics you can detect and classify people and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.

  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 resolution for surveillance in real-time
  • Up to 400 mm of night vision

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/111000 Second
Power Description
Maximum Power Consumption90 W
Power Source TypePoE
Environmental Conditions
Minimum Operating Temperature-50°C
Maximum Operating Temperature55°C
Maximum Operating Humidity100%
Network & Communication
ProtocolsIPv4
SOCKS
LLDP
mDNS (Bonjour)
MQTT v3.1.1
NTCIP
NTP
NTS
ONVIF
RFC 3164/5424
HTTP
HTTP/2
HTTPS
ICMP
ICMPv4/ICMPv6
IGMPv1/v2/v3
IPv6
SNMPv1/v2c/v3 (MIB2)
SMTP
ARP
CDP
CIFS/SMB
DDNS
DHCPv4/v6
DiffServ (QoS)
DNS/DNSv6
FTP
SRTP/RTSPS
SSH
TCP
TLS
UDP
UDP/TCP/TLS
UPnP
ZeroConf
RTCP
RTP
RTSP
SFTP
Connectivity TechnologyWired
Ethernet TechnologyGigabit Ethernet
Remote ManagementYes
Display & Graphics
Color SupportedColour
Image Sensor Size1/2"
Image Sensor TypeCMOS
Field of ViewHorizontal field of view: 63.8°- 2.2° Vertical field of view: 37°- 1.3°
Physical Characteristics
Weight (Approximate)8.70 kg
DurabilityVandal Resistant
Product ColorUrban Grey
Color FamilyGrey
Technical Information
Recording FormatsFull HD
Night VisionYes
HD RecordingYes
Night Vision Distance400 mm
Camera IrisP-iris
Night Vision TypeInfrared
General Information
Product TypeNetwork Camera
Manufacturer Part Number02316301
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ6225-LE
Product NameQ6225-LE Network Camera
Brand NameAXIS
Lens
Lens TypeVarifocal
Optical Zoom31x
Maximum Aperturef/1.36
Maximum Focal Length214.64 mm
Minimum Focal Length6.91 mm
Minimum Aperturef/4.6
Lens IncludedYes
Video
Video FormatsH.264H (MPEG-4 Part 10/AVC)
H.264M (MPEG-4 Part 10/AVC)
H.265
H.265 (MPEG-H Part 2/HEVC) Main Profile
H.264
Motion JPEG
H.264B (MPEG-4 Part 10/AVC)
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Miscellaneous
FeaturesWhite Balance
Wide Dynamic Range
Audio Detection
Day/Night
Defog
Electronic Image Stabilization
Privacy Masking
PTZ
SD Card Local Storage
Video Management System
Impact Protection RatingIK10
Ingress Protection RatingIP68
IP66
