Product Overview

M5075 1080P CEILING MOUNT MINI PTZ, 5X OPTICAL ZOOM AND AUTOFOCUSING, BUILT-IN MICROPHONE

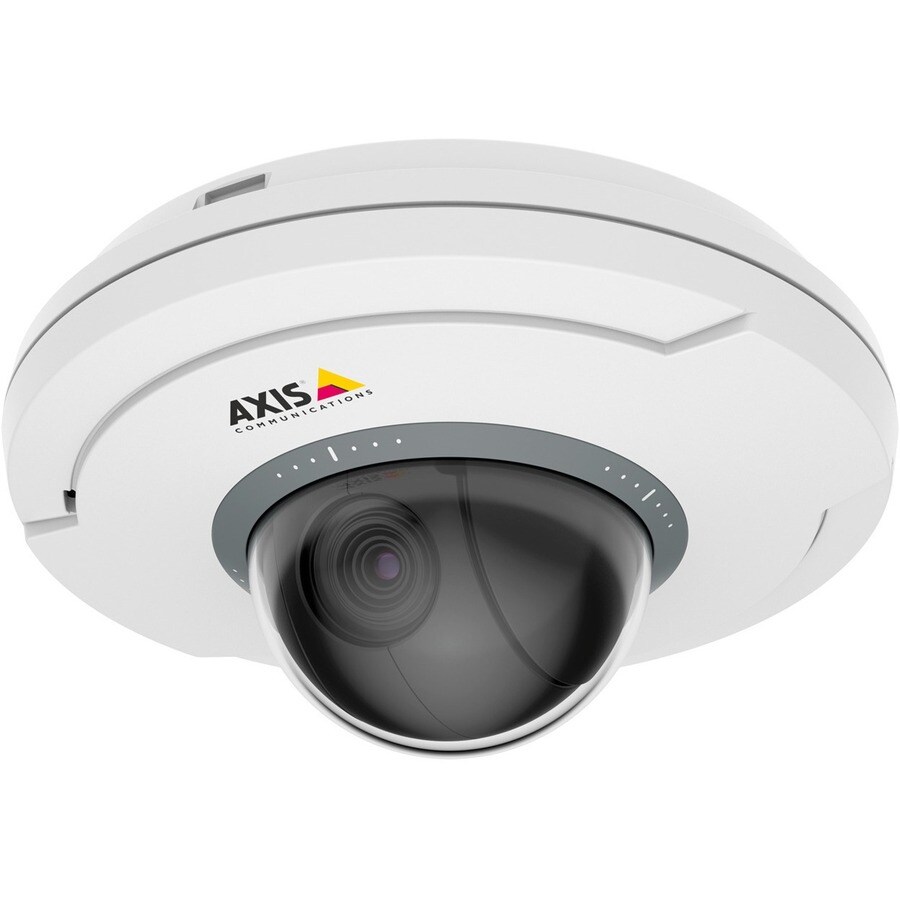

AXIS M5075 is a discreet, palm-sized PTZ camera designed to fit in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture - and all the important details.

Small size. Small price

With a diameter of just 130 x 63 mm (5.1 x 2.5 in), this compact and discreet palm-sized PTZ camera blends discreetly into any environment. It comes at a price point that's nothing if not reasonable. Featuring a built-in microphone, it enables audio analytics such as scream and glass break detection. Thanks to Zipstream with H.264/H.265 it significantly reduces storage and bandwidth without compromising image quality. This affordable camera can be used with installation material from the previous model (AXIS M5054). Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.

See it all - and see it clearly

AXIS M5075 delivers sharp, detailed video in HDTV 1080p/2 MP resolution with great image usability. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Plus, autofocus ensures detailed, sharp images-every time. With Wide Dynamic Range (WDR) technology, it preserves important forensic detail when there's both dark and light areas in the same scene. Furthermore, constant angle focusing ensures the field of view doesn't change even when the focus changes.

Built-in analytics

This plug & play functionality is a cost-effective way to gain insight for more efficient and effective security. It includes built-in analytics that transforms the camera into a business tool to help you make smart decisions about operations and resource allocation. For instance, it includes audio volume detection which uses the built-in microphone to trigger an event. Scream detection triggers an event when the microphone detects a scream in the camera's proximity. Furthermore, AXIS Video motion detection triggers an event when movement is detected in a predefined area.

  • Features RGB CMOS sensor
  • For remote surveillance needs, this network camera is best suited
  • Up to 1920 x 1080 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Display & Graphics
Image Sensor TypeRGB CMOS
Field of ViewHorizontal field of view: 14°-71° Vertical field of view: 8°-40° Autofocus
Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/17000 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Environmental Conditions
Minimum Operating Temperature0°C
Maximum Operating Temperature45°C
Maximum Operating Humidity90%
Lens
Optical Zoom5x
Maximum Aperturef/1.4
Maximum Focal Length11 mm
Minimum Focal Length2.20 mm
Minimum Aperturef/2.5
Lens IncludedYes
Video
Video FormatsH.264
H.264 (MPEG-4 Part 10/AVC)
H.264 HP
H.264M
H.265
H.265 (MP)
Zipstream
H.265 (MPEG-H Part 2/HEVC)
MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Physical Characteristics
Weight (Approximate)380 g
Mount TypeCeiling Mount
Lighting Track Mount
Diameter130 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number02346001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM5075
Product NameM5075 PTZ Camera
Product SeriesM50
Brand NameAXIS
Miscellaneous
Package Contents
  • M5075 PTZ Camera
  • AXIS M50 Mounting Kit
  • Installation Guide
  • Windows Decoder 1-User License
FeaturesPTZ
SD Card Local Storage
Tampering Alarm
White Balance
Password Protection
Privacy Masking
Wide Dynamic Range
Built-in Microphone
HTTPS Encryption
Motion Detection
Ingress Protection RatingIP51
