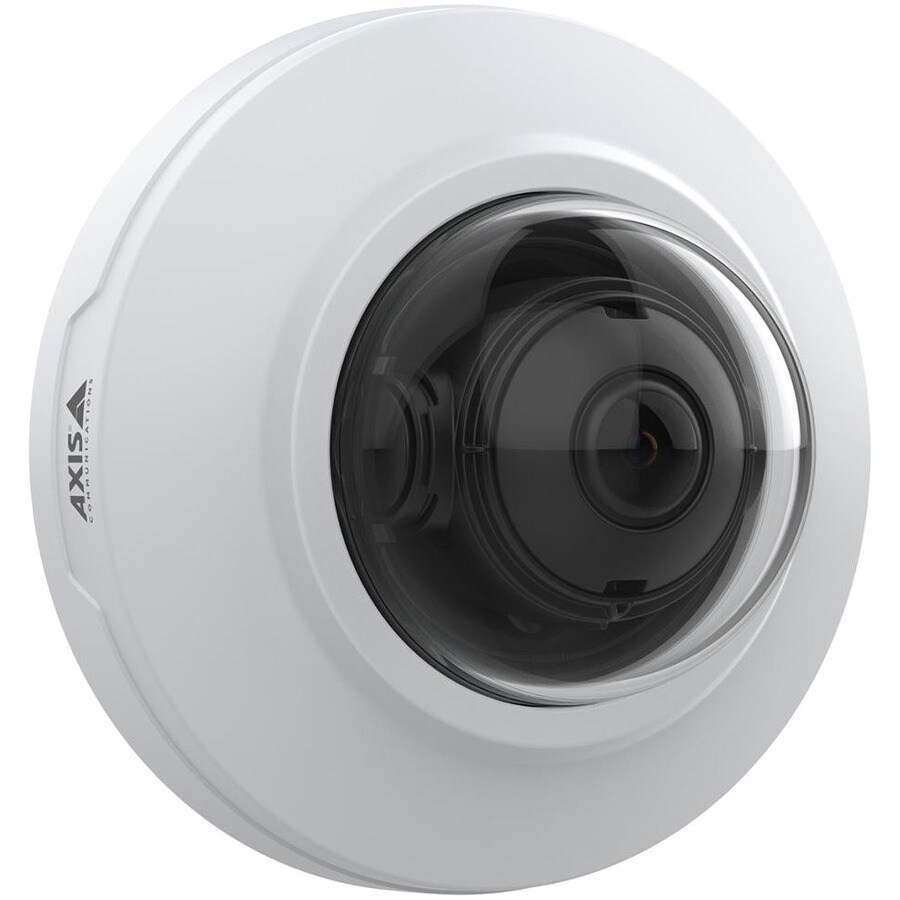

AXIS M3086-V

AXIS M3086-V

AXIS M3086-V

Product Overview

AXIS M3086-V 4 Megapixel Indoor Network Camera - Colour - Mini Dome - White - TAA Compliant - H.264, H.265, Zipstream, H.264H, H.264M, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) - 2688 x 1512 - 2.40 mm Fixed Lens - 30 fps - RGB CMOS - HDMI - Ceiling Mount, Wall Mount - IK08 - IP42 - Water Resistant, Dust Resistant, Impact Resistant, Vandal Resistant

Fixed 4 MP mini dome with deep learning

  • Great image quality in 4 MP
  • Compact, discreet design
  • WDR and Lightfinder
  • Support for analytics with deep learning
  • Built-in cybersecurity features

This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.

Great image quality

AXIS M3086-V offers great 4 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there's both dark and light areas in the scene. And, with Lightfinder, you get sharp, color images even in low light. Furthermore, it offers a wide-angle view of 130° and comes factory-focused so there's no manual focusing required.

Extended possibilities

AXIS M3086-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.

Compact and cost-efficient

This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 2688 x 1512 resolution for surveillance in real-time

Technical Specifications

Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/38500 Second
Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Image Sensor TypeRGB CMOS
Effective Camera Resolution4 Megapixel
Field of ViewHorizontal field of view: 130° Vertical field of view: 93°
Environmental Conditions
Minimum Operating Temperature0°C
Maximum Operating Temperature45°C
Maximum Operating Humidity85%
Lens
Maximum Aperturef/2.1
Maximum Focal Length2.40 mm
Lens IncludedYes
Miscellaneous
Package Contents
  • M3086-V Dome Camera
  • Installation guide
  • Windows decoder 1 user license
FeaturesPassword Protection
Removable IR Cut-off Filter
Vehicle Detection
Wide Dynamic Range
Day/Night
HTTPS Encryption
Human Detection
Built-in Microphone
Cross Line Detection
Multi-view Stream
TAA CompliantYes
Impact Protection RatingIK08
Ingress Protection RatingIP42
General Information
Product TypeNetwork Camera
Manufacturer Part Number02374001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM3086-V
Product NameM3086-V Dome Camera
Product SeriesM30
Brand NameAXIS
Video
Video FormatsH.264 (MPEG-4 Part 10/AVC)
H.264H
H.264M
H.265
H.264
Zipstream
H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution2688 x 1512
Maximum Frame Rate30 fps
Physical Characteristics
Weight (Approximate)150 g
DurabilityImpact Resistant
Vandal Resistant
Water Resistant
Dust Resistant
Form FactorMini Dome
Mount TypeWall Mount
Ceiling Mount
Diameter101 mm
Height56 mm
Product ColorWhite
Color FamilyWhite
