Product Overview

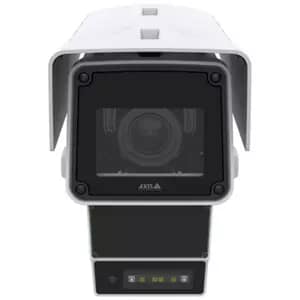

AXIS Q1656-DLE 4 Megapixel Network Camera - Colour - Box - White - 38 m Infrared Night Vision - Zipstream, H.265, Motion JPEG, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.264 - 2688 x 1512 - 3.90 mm- 10 mm Varifocal Lens - 3.9x Optical - 60 fps - CMOS - Gigabit Ethernet - Wall Mount - IK08 - IP66 - Impact Resistant
This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable widearea intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object’s radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing.
- Two powerful technologies in one device
- Increased scene intelligence
- Accurate detection 24/7
- Built-in cybersecurity features
- Premium Axis Q-line camera functionality
Technical Specifications
| Network (RJ-45) | Yes |
| Maximum Power Consumption | 25.5 W |
| Night Vision | Yes |
| Limited Warranty Duration | 5 Year |
| Product Type | Network Camera |
| Manufacturer Part Number | 02420-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | Q1656-DLE |
| Product Name | Q1656-DLE Network Camera |
| Product Series | Q16 |
| Brand Name | AXIS |
| Additional Information | Data refresh rate: 10 Hz Coverage: 2700 m2 (29000 sq ft) |
| Features | Built-in IR LED,Day/Night,Heater |
| Security Features | * Edge security Software: Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) * Network security: IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| Connectivity Technology | Wired |
| Ethernet Technology | Ethernet |
| Remote Management | Yes |
| Weight (Approximate) | 5 kg |
| Form Factor | Box |
| Height | 234 mm |
| Width | 404 mm |
| Depth | 159 mm |
