AXIS M1135-E MK II Outdoor NEMA 4X IP66
AXIS M1135-E MK II Outdoor NEMA 4X IP66
Product Overview

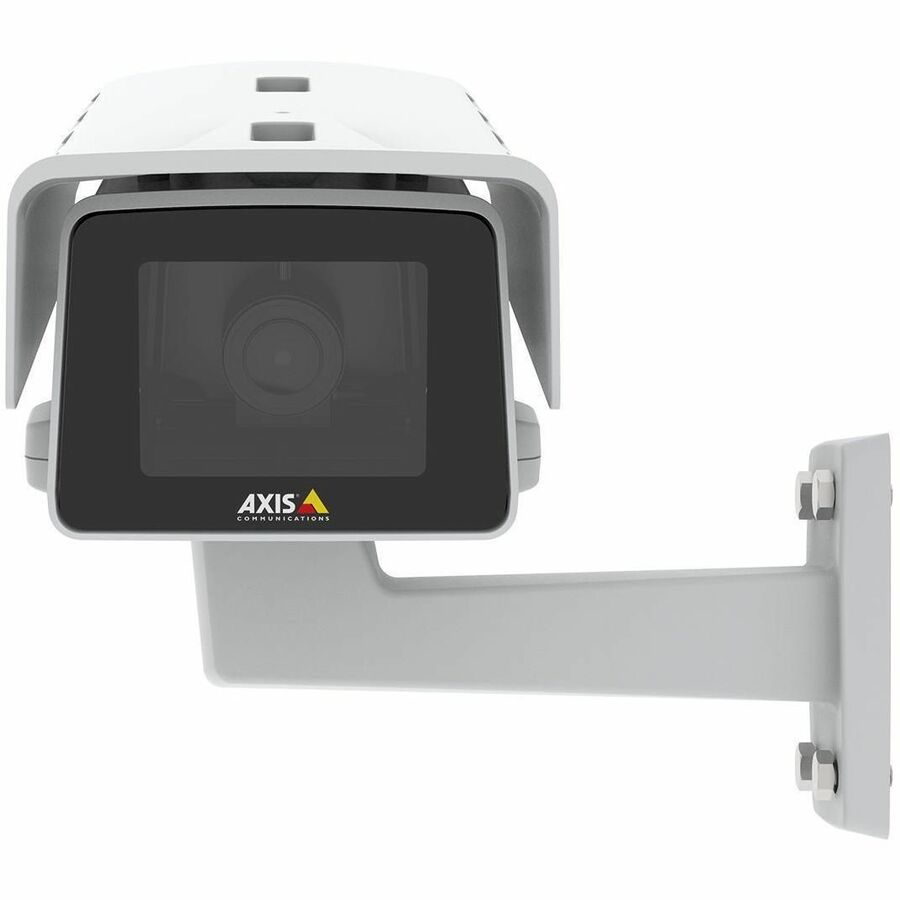

AXIS M1135-E MK II Outdoor NEMA 4X IP66 and IK10-rated light weight HDTV 1080p resolution day/night compact fixed box camera with CS-mount providing Forensic WDR and Lightfind
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Power Description
| Input Voltage | 28 V DC |
Storage
| Storage Type | Memory Card |
Technical Information
| HD Recording | Yes |
Display & Graphics
| Effective Camera Resolution | 2 Megapixel |
| Field of View | 90° - 33° |
Environmental Conditions
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | 50°C |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Physical Characteristics
| Form Factor | Box |
| Mount Type | Wall Mount |
Miscellaneous
| Features | Wide Dynamic Range |
| Audio Detection | |
| Tampering Alarm | |
| SD Card Local Storage | |
| Built-in Microphone | |
| Day/Night | |
| TAA Compliant | Yes |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
Lens
| Optical Zoom | 3.5x |
| Maximum Aperture | f/1.4 |
| Maximum Focal Length | 10.50 mm |
| Minimum Focal Length | 3 mm |
| Lens Mount Type | CS-Mount |
| Lens Included | Yes |
Video
| Video Formats | H.264 |
| H.265 | |
| Zipstream | |
| Motion JPEG | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
General Information
| Product Type | Network Camera |
| Manufacturer Part Number | 02485001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | M1135-E MK II |
| Product Name | M1135 MK II Network Camera |
| Product Series | M11 |
| Brand Name | AXIS |
