Product Overview

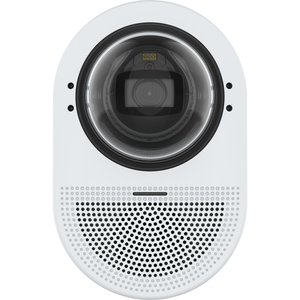

AXIS Q9307-LV 5 Megapixel Indoor Network Camera - Colour - Dome - White - 40 m Infrared Night Vision - H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream, H.264, H.265, H.264B, H.264H, H.264M - 2592 x 1944 - 3 mm- 8 mm Varifocal Lens - 2.7x Optical - 30 fps - RGB CMOS - Gigabit Ethernet - Bracket Mount, Junction Box Mount, Wall Mount, Ceiling Mount, Gang Box Mount - IK08 - IP44 - Vandal Resis

All-in-one audio-visual monitoring device:

This all-in-one device combines sharp video, audio, actionable analytics, and LED indicators. With four built-in microphones and a built-in speaker, it supports two-way communication. It comes with coughing fit and stressed voice analytics adding an extra audible dimension to active incident management. AXIS Live Privacy Shield lets you remotely monitor activities while safeguarding privacy. And the LED indicators clearly show when the camera is recording or when audio is being used. This vandal-resistant, IK08-rated camera withstands daily wipe-downs with chemical detergents. Plus, with just one device to install, it offers cost-efficient one-drop installation.

  • 5 MP video with two-way audio
  • Preinstalled audio and video analytics
  • Remote monitoring while safeguarding privacy
  • Withstands chemical wipe-downs
  • Cost-efficient all-in-one device
  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 2592 x 1944 resolution for surveillance in real-time
  • Up to 40 m of night vision

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Environmental Conditions
Minimum Operating Temperature0°C
Maximum Operating Temperature40°C
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second
Power Description
Input Voltage12 V DC
Maximum Power Consumption25.50 W
Power Source TypeDC
PoE
Display & Graphics
Color SupportedColour
Image Sensor Size1/2.7"
Image Sensor TypeRGB CMOS
Effective Camera Resolution5 Megapixel
Field of ViewHorizontal field of view: 104°-40°/Vertical field of view: 74°-29°
Network & Communication
ProtocolsARP
CDP
CIFS/SMB
DDNS
DHCPv4/v6
DiffServ (QoS)
DNS/DNSv6
UDP
UDP/TCP/TLS
UPnP
ZeroConf
SRTP/RTSPS
SSH
Syslog
TCP
TLS
QoS
RFC 3164/5424
RTCP
RTP
RTSP
SFTP
SMTP
SNMPv1/v2c/v3 (MIB2)
FTP
HTTP
HTTP/2
HTTPS
ICMP
ICMPv4/ICMPv6
IEEE 802.1AR
IEEE 802.1X (EAP-TLS)
IGMPv1/v2/v3
IPv4
IPv6 USGv6
LLDP
mDNS (Bonjour)
MQTT v3.1.1
NTP
NTS
Connectivity TechnologyWired
Ethernet TechnologyGigabit Ethernet
Remote ManagementYes
Technical Information
Night VisionYes
HD RecordingYes
Night Vision Distance40 m
Camera IrisP-iris
Night Vision TypeInfrared
Lens
Lens TypeVarifocal
Optical Zoom2.7x
Maximum Aperturef/1.3
Maximum Focal Length8 mm
Minimum Focal Length3 mm
Lens IncludedYes
General Information
Product TypeNetwork Camera
Manufacturer Part Number02487-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ9307-LV
Product NameQ9307-LV Dome Camera
Brand NameAXIS
Physical Characteristics
Weight (Approximate)1.25 kg
DurabilityChemical Resistant
Vandal Resistant
Form FactorDome
Mount TypeCeiling Mount
Bracket Mount
Junction Box Mount
Gang Box Mount
Wall Mount
Product ColorWhite
Color FamilyWhite
Video
Video FormatsH.264
H.264B
H.264B (MPEG-4 Part 10/AVC)
H.264H
H.264H (MPEG-4 Part 10/AVC)
H.264M
H.264M (MPEG-4 Part 10/AVC)
H.265
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Zipstream
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
Miscellaneous
FeaturesVehicle Detection
Tampering Alarm
Noise Reduction
Multi-view Stream
Motion Detection
Human Detection
Day/Night
Built-in Microphone
Audio Detection
Video Management System
Voice Detection
Wide Dynamic Range
Smart Object Detection
Indoor/OutdoorIndoor
Impact Protection RatingIK08
Ingress Protection RatingIP44

Price Trend

Current Price
AUD 2,206.00
