AXIS Q1808-LE 4/3in image sensor robust
AXIS Q1808-LE 4/3in image sensor robust
Product Overview

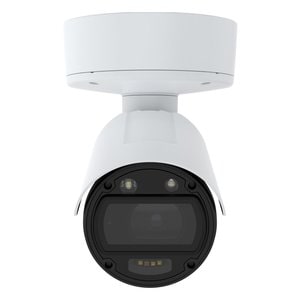

AXIS Q1808-LE 10 Megapixel Outdoor Network Camera - Colour - Bullet - TAA Compliant - 120 m Infrared Night Vision - H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, H.264, H.265, Zipstream, H.264M, H.264B, H.264H - 3712 x 2784 - 60 fps - RGB CMOS - Gigabit Ethernet - IK10, IK08 - IP66, IP67 - Impact Resistant - Wide Dynamic Range, Day/Night, Video Management System, Motion Detection, Multi-view Strea
This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It's available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.
Excellent forensic details and powerful performance
Featuring a 4/3"image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, adeep learning processing unit (DLPU)lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Great coverage in wide, open areas
With a wide (12 - 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.
Excellent details at great distances
With a tele (50 - 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it's ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 120 m (394 ft) without the need for extra lighting.
Enjoy big savings
Not only does this powerful camera deliver outstanding 4K details, but thanks toZipstreamH.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you'll enjoy the optimal level of Zipstream for your video storage - regardless of yourVMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode together with low power profile reduces power demands by as much as 50% in certain temperature ranges.
- Features RGB CMOS sensor
- For remote surveillance needs, this network camera is best suited
- Up to 3712 x 2784 video resolution
- Up to 120 m of night vision
Technical Specifications
Network (RJ-45) | Yes |
Storage Type | Memory Card |
Longest Shutter Speed | 2 Second |
Shortest Shutter Speed | 1/45500 Second |
PTZ Modes | Digital PTZ |
Weight (Approximate) | 3.20 kg |
Durability | Impact Resistant |
Form Factor | Bullet |
Color Supported | Colour |
Image Sensor Size | 4/3" |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 10 Megapixel |
Field of View | Horizontal field of view: 21°-7° Vertical field of view: 12°-4° |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 60°C |
Minimum Storage Temperature | -40°C |
Maximum Storage Temperature | 60°C |
Maximum Operating Humidity | 100% |
Minimum Storage Humidity | 5% |
Maximum Storage Humidity | 95% |
Product Type | Network Camera |
Manufacturer Part Number | 02507-001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Model | Q1808-LE |
Product Name | Q1808-LE Bullet Camera |
Brand Name | AXIS |
Protocols | DHCPv4/v6 |
DiffServ (QoS) | |
LLDP | |
IPv6 USGv6 | |
DNS/DNSv6 | |
FTP | |
SRTP/RTSPS | |
SSH | |
TCP | |
TLS | |
UDP | |
UPnP | |
ZeroConf | |
mDNS (Bonjour) | |
MQTT | |
MQTT v3.1.1 | |
NTP | |
NTS | |
ONVIF | |
RTCP | |
RTP | |
RTSP | |
SFTP | |
SIP | |
SMTP | |
SNMPv1/v2c/v3 (MIB2) | |
ARP | |
CDP | |
CIFS/SMB | |
DDNS | |
HTTP | |
HTTPS | |
ICMP | |
ICMPv4/ICMPv6 | |
IEEE 802.1AR | |
IEEE 802.1X (EAP-TLS) | |
IGMPv1/v2/v3 | |
IPv4 | |
Connectivity Technology | Wired |
Ethernet Technology | Gigabit Ethernet |
Remote Management | Yes |
Input Voltage | 10 V DC |
20 V AC | |
28 V DC | |
24 V AC | |
Maximum Power Consumption | 51 W |
Power Source Type | DC |
AC | |
PoE |
Video Formats | H.264 |
H.264B | |
H.264B (MPEG-4 Part 10/AVC) | |
H.264H | |
H.264H (MPEG-4 Part 10/AVC) | |
H.264M | |
H.264M (MPEG-4 Part 10/AVC) | |
Zipstream | |
H.265 | |
H.265 (MPEG-H Part 2/HEVC) Main Profile | |
Motion JPEG | |
Maximum Video Resolution | 3712 x 2784 |
Maximum Frame Rate | 60 fps |
Features | PTZ |
Motion Detection | |
HTTPS Encryption | |
Day/Night | |
Audio Compression | |
Wide Dynamic Range | |
Privacy Masking | |
Multi-view Stream | |
Video Management System | |
White Balance | |
TAA Compliant | Yes |
Indoor/Outdoor | Outdoor |
Impact Protection Rating | IK10 |
IK08 | |
Ingress Protection Rating | IP67 |
IP66 |
Night Vision | Yes |
HD Recording | Yes |
Night Vision Distance | 120 m |
Camera Iris | Auto |
P-iris | |
Languages Support | Thai |
Traditional Chinese | |
Turkish | |
Vietnamese | |
Czech | |
Dutch | |
English | |
Finnish | |
French | |
German | |
Italian | |
Japanese | |
Korean | |
Swedish | |
Spanish | |
Simplified Chinese | |
Russian | |
Polish | |
Portuguese | |
Infrared (IR) Cut-off Filter | Yes |
Night Vision Type | Infrared |
Wide Dynamic Range Detail | 120 dB |
