AXIS Q1808-LE 150MM 4/3in image sensor 4
AXIS Q1808-LE 150MM 4/3in image sensor 4
Product Overview

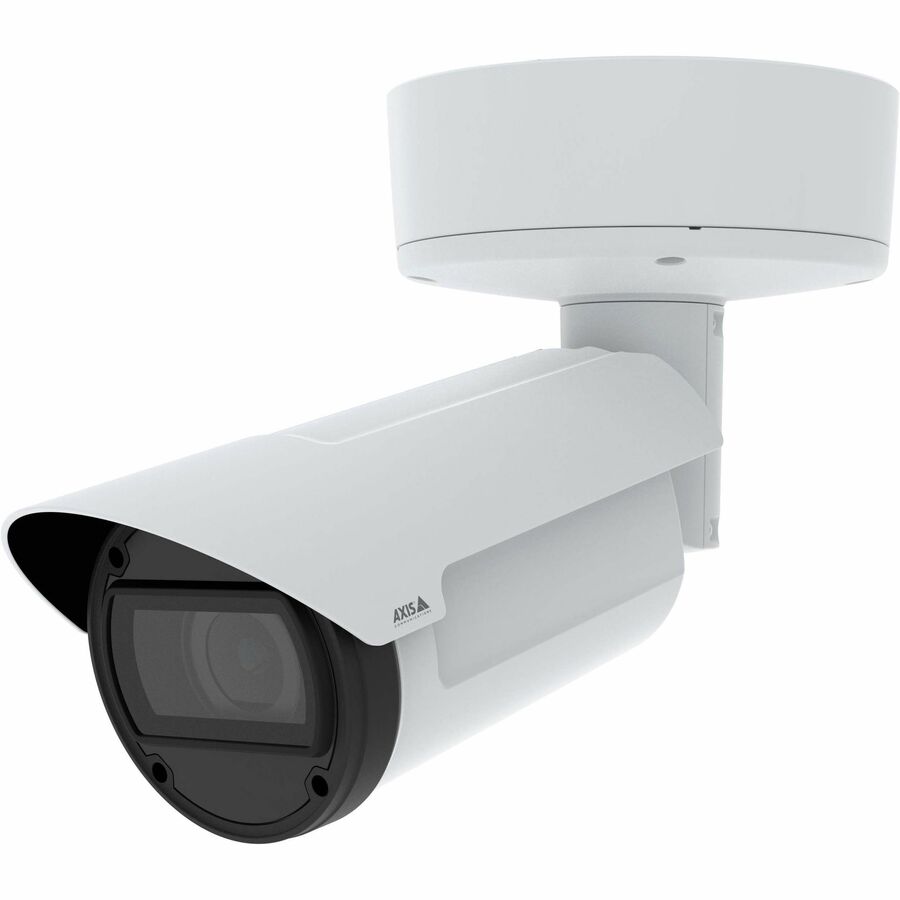

AXIS Q1808-LE 2 Megapixel Outdoor Network Camera - Colour - Bullet - TAA Compliant - 120 m Infrared Night Vision - H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, H.264, H.265, Zipstream, H.264M, H.264B, H.264H - 3712 x 2784 - 50 mm- 150 mm Varifocal Lens - 30x Optical - 60 fps - RGB CMOS - Gigabit Ethernet - IK10, IK08 - IP66, IP67 - Impact Resistant
AXIS Q1808-LE 150MM 4/3in image sensor robust outdoor NEMA 4X IP66 IP67 and IK10-rated 10 MP/ 4K resolution day/night fixed bullet camera w/ Deep Learning Processing Unit (DLPU).- Features RGB CMOS sensor
- Network camera - Helps achieve high-quality video results
- Up to 3712 x 2784 resolution for surveillance in real-time
- Provides night vision of objects at a distance of up to 120 m
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Storage
| Storage Type | Memory Card |
Exposure
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/45500 Second |
Environmental Conditions
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 60°C |
| Maximum Operating Humidity | 100% |
Physical Characteristics
| Weight (Approximate) | 3.20 kg |
| Durability | Impact Resistant |
| Form Factor | Bullet |
Display & Graphics
| Image Sensor Size | 4/3" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 2 Megapixel |
| Field of View | Horizontal field of view: 21°-7° Vertical field of view: 12°-4° |
Network & Communication
| Protocols | SSH |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| ZeroConf | |
| IEEE 802.1AR | |
| IEEE 802.1X (EAP-TLS) | |
| IGMPv1/v2/v3 | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| mDNS (Bonjour) | |
| MQTT | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SIP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Remote Management | Yes |
Lens
| Optical Zoom | 30x |
| Maximum Aperture | f/4 |
| Maximum Focal Length | 150 mm |
| Minimum Focal Length | 50 mm |
| Lens Included | Yes |
Power Description
| Input Voltage | 20 V AC |
| 24 V AC | |
| 10 V DC | |
| 28 V DC | |
| Maximum Power Consumption | 51 W |
General Information
| Product Type | Network Camera |
| Manufacturer Part Number | 02508001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | Q1808-LE |
| Brand Name | AXIS |
Technical Information
| Night Vision | Yes |
| HD Recording | Yes |
| Night Vision Distance | 120 m |
| Camera Iris | P-iris |
| Auto | |
| Night Vision Type | Infrared |
Video
| Video Formats | H.264M |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264 | |
| H.264B | |
| H.264B (MPEG-4 Part 10/AVC) | |
| Zipstream | |
| Motion JPEG | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| H.264H | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| Maximum Video Resolution | 3712 x 2784 |
| Maximum Frame Rate | 60 fps |
Miscellaneous
| Features | Video Management System |
| White Balance | |
| Wide Dynamic Range | |
| Motion Detection | |
| Multi-view Stream | |
| Privacy Masking | |
| PTZ | |
| Audio Compression | |
| Day/Night | |
| HTTPS Encryption | |
| TAA Compliant | Yes |
| Impact Protection Rating | IK08 |
| IK10 | |
| Ingress Protection Rating | IP67 |
| IP66 |
