Product Overview

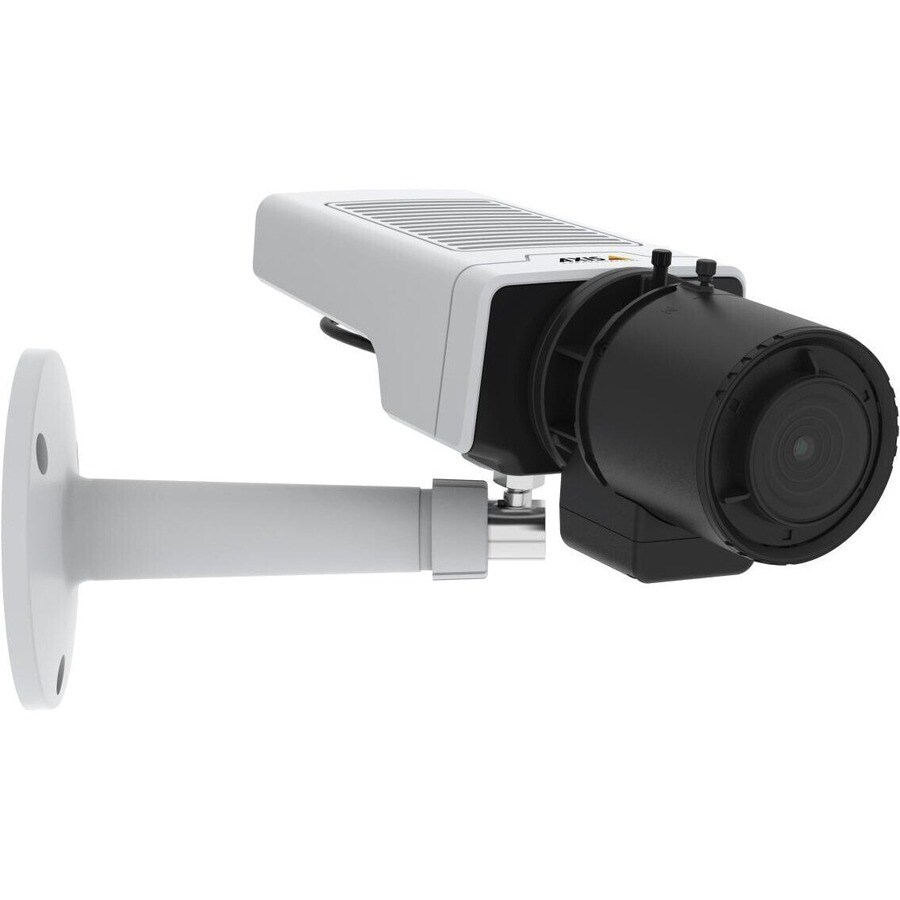

AXIS M1137 MK II 5 Megapixel Network Camera - Colour - Box - H.265, H.264, Motion JPEG, Zipstream - 2592 x 1944 - 3.50 mm- 10 mm Varifocal Lens - 2.9x Optical - 30 fps - RGB CMOS - Fast Ethernet - Tripod Mount

This affordable and compact box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.

More bang for your buck

This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn't been compromised. And, Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS Object Analytics preinstalled, so you can detect and classify humans and vehicles.

Great image quality even in low light

With 5 MP resolution at up to 30 fps, AXIS M1137 Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And, with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Ideal for various surveillance situations, it includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.

Designed for deterrence

Designed to act as a deterrent, AXIS M1137 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis ceiling speaker.

  • Features RGB CMOS sensor
  • For remote surveillance needs, this network camera is best suited
  • Up to 2592 x 1944 video resolution

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second
Power Description
Input Voltage10 V DC
28 V DC
Environmental Conditions
Minimum Operating Temperature-20°C
Maximum Operating Temperature50°C
Maximum Operating Humidity85%
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Remote ManagementYes
Physical Characteristics
Weight (Approximate)165 g
Form FactorBox
Mount TypeTripod Mount
Miscellaneous
FeaturesPrivacy Masking
Password Protection
Audio Detection
SD Card Local Storage
Tampering Alarm
Vehicle Detection
Mirror
Day/Night
Wide Dynamic Range
Built-in Microphone
Display & Graphics
Image Sensor Size1/2.7"
Image Sensor TypeRGB CMOS
Effective Camera Resolution5 Megapixel
Field of View99°-31° / 71°-24°
Lens
Optical Zoom2.9x
Maximum Aperturef/1.8
Maximum Focal Length10 mm
Minimum Focal Length3.50 mm
Lens Mount TypeCS-Mount
Lens IncludedYes
Video
Video FormatsH.264
H.265
Motion JPEG
Zipstream
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
General Information
Product TypeNetwork Camera
Manufacturer Part Number02581-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM1137 MK II
Product NameM1137 Mk II Box Camera
Product SeriesM11
Brand NameAXIS
