Product Overview

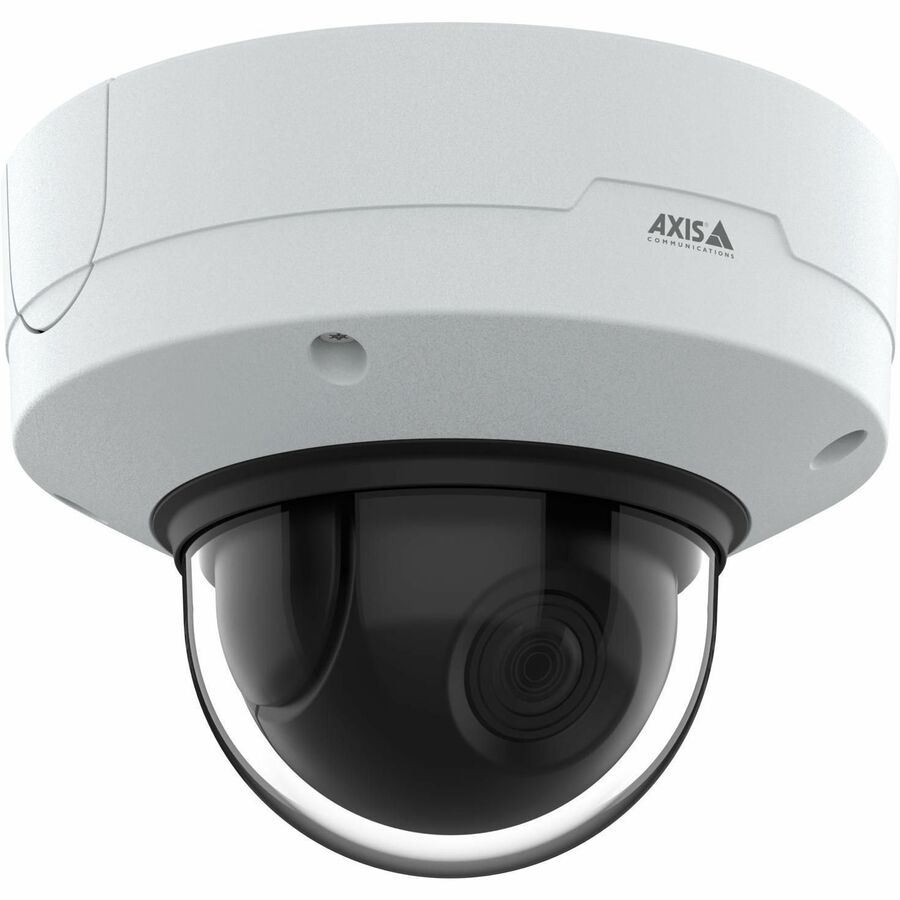

AXIS Q3628-VE 8 Megapixel Outdoor 4K Network Camera - Colour - Dome - White - Night Vision - H.265, Zipstream, H.264, H.264B, H.264H, H.264M, Motion JPEG - 3840 x 2160 - 6.20 mm- 12.90 mm Varifocal Lens - 2.1x Optical - 60 fps - CMOS - Junction Box Mount - IK10 - IP66, IP6K9K - Vandal Resistant, Weather Resistant, Shock Resistant, Vibration Resistant

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it's quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view

This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality

AXIS Q3628-VE offers outstanding image quality and forensic details in 8 MP resolution-even in low light. Plus,Lightfinder2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before-on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments

This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cyber security features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Network camera - Helps achieve high-quality video results
  • Up to 3840 x 2160 resolution for surveillance in real-time

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage12 V DC
Storage
Storage TypeMemory Card
Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/66500 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Technical Information
Night VisionYes
HD RecordingYes
Environmental Conditions
Minimum Operating Temperature-50°C
Maximum Operating Temperature55°C
Maximum Operating Humidity100%
Display & Graphics
Image Sensor Size1/2"
Image Sensor TypeCMOS
Effective Camera Resolution8 Megapixel
Field of ViewHorizontal field of view: 103°-48° Vertical field of view: 56°-27°
Lens
Optical Zoom2.1x
Maximum Aperturef/1.6
Maximum Focal Length12.90 mm
Minimum Focal Length6.20 mm
Minimum Aperturef/2.9
Lens IncludedYes
Physical Characteristics
Weight (Approximate)2.10 kg
DurabilityShock Resistant
Vandal Resistant
Vibration Resistant
Weather Resistant
Form FactorDome
Mount TypeJunction Box Mount
Diameter184 mm
Height141 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number02617-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelQ3628-VE
Product NameQ3628-VE Dome Camera
Product SeriesQ36
Brand NameAXIS
Video
Video FormatsH.264H
H.264B
H.264
H.265
Motion JPEG
Zipstream
H.264M
Maximum Video Resolution3840 x 2160
Maximum Frame Rate60 fps
Miscellaneous
FeaturesWide Dynamic Range
Password Protection
Human Detection
Highlight Compensation (HLC)
Motion Detection
Noise Detection
Mirror
Vehicle Detection
3D Digital Noise Reduction
Back Light Compensation (BLC)
Cross Line Detection
Impact Protection RatingIK10
Ingress Protection RatingIP6K9K
IP66
