M1137-E MK II i-CS Outdoor NEMA 4X IP66

M1137-E MK II i-CS Outdoor NEMA 4X IP66

M1137-E MK II i-CS Outdoor NEMA 4X IP66

Product Overview

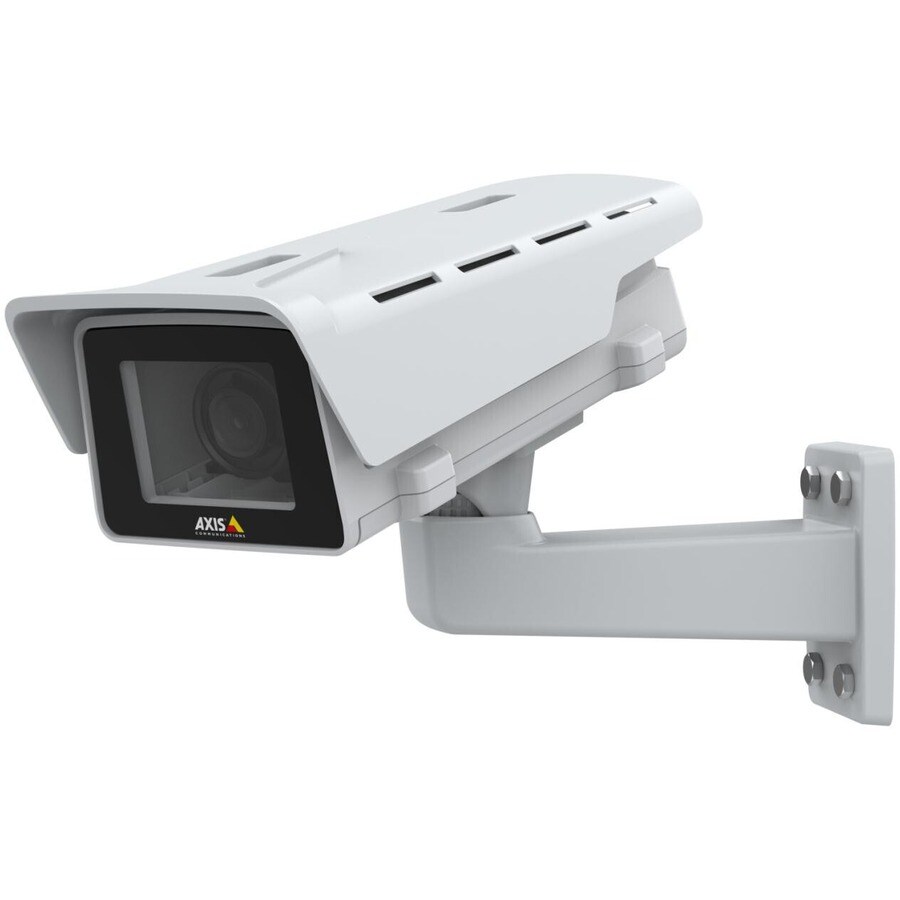

AXIS M1137-E Mk II 5 Megapixel Outdoor Network Camera - Colour - Box - White - H.265, H.264, Motion JPEG, Zipstream, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) - 2592 x 1944 - 3.50 mm- 10 mm Varifocal Lens - 2.9x Optical - 30 fps - RGB CMOS - Fast Ethernet - Wall Mount - IK10 - IP66 - Water Resistant, Corrosion Resistant, Dust Resistant, Impact Resistant

This compact, outdoor-ready box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.

More bang for your buck

This affordable Axis M-line camera offers audio input allowing you to record video with sound. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn't been compromised. And, Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS Object Analytics preinstalled, so you can detect and classify humans and vehicles.

Great image quality even in low light

With 5 MP resolution at up to 30 fps, AXIS M1137-E Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And, with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Ideal for various surveillance situations, it includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.

Designed for deterrence

This outdoor-ready camera comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts. Designed to act as a deterrent, it lets potential offenders know you're watching and helps prevent unwanted activities. Furthermore, AXIS M1137-E Mk II provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis horn speaker.

  • Features RGB CMOS sensor
  • Network camera - Helps achieve high-quality video results
  • Up to 2592 x 1944 resolution for surveillance in real-time

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingYes
Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second
Power Description
Input Voltage28 V DC
10 V DC
Environmental Conditions
Minimum Operating Temperature-25°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Remote ManagementYes
Display & Graphics
Image Sensor Size1/2.7"
Image Sensor TypeRGB CMOS
Effective Camera Resolution5 Megapixel
Field of View99°-31° / 71°-24°
Lens
Optical Zoom2.9x
Maximum Focal Length10 mm
Minimum Focal Length3.50 mm
Lens Mount TypeCS-Mount
Lens IncludedYes
General Information
Product TypeNetwork Camera
Manufacturer Part Number02623-001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM1137-E Mk II
Product NameM1137-E Mk II Box Camera
Product SeriesM11
Brand NameAXIS
Video
Video FormatsZipstream
H.264 (MPEG-4 Part 10/AVC)
Motion JPEG
H.264
H.265
H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
Physical Characteristics
Weight (Approximate)1.80 kg
DurabilityImpact Resistant
Water Resistant
Dust Resistant
Corrosion Resistant
Form FactorBox
Mount TypeWall Mount
Product ColorWhite
Color FamilyWhite
Miscellaneous
FeaturesMirror
Password Protection
Privacy Masking
SD Card Local Storage
Tampering Alarm
Day/Night
Wide Dynamic Range
Vehicle Detection
Built-in Microphone
Audio Detection
Impact Protection RatingIK10
Ingress Protection RatingIP66
