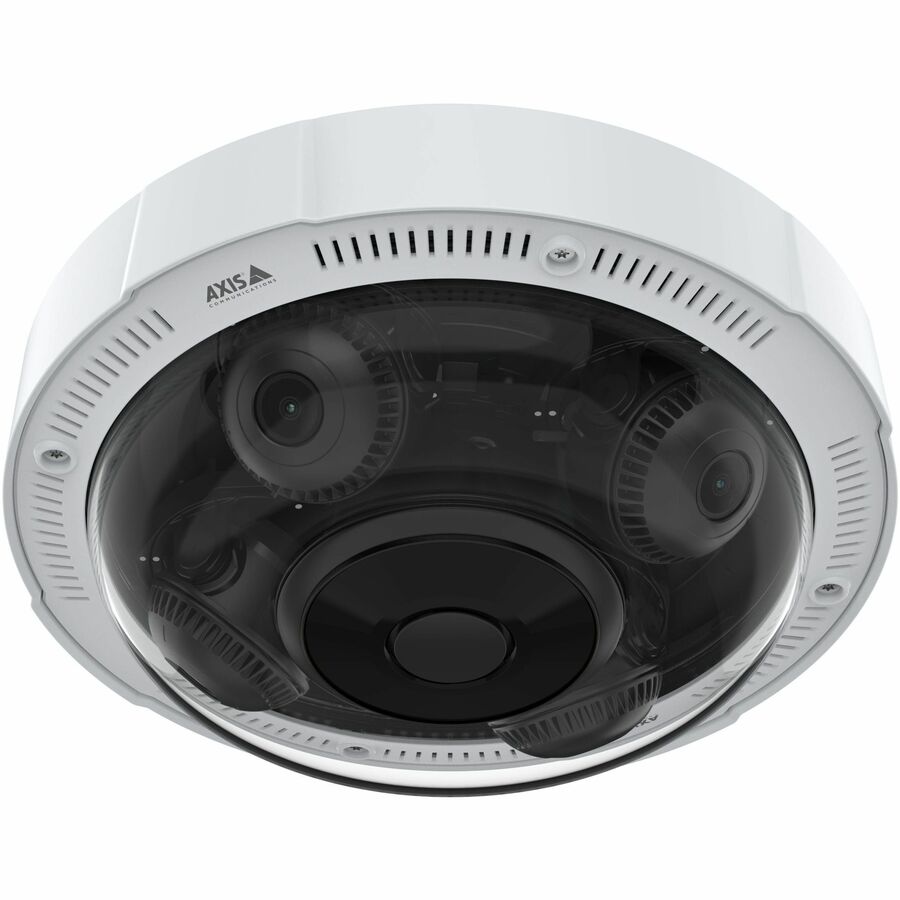

P3737-PLE Panoramic Camera offers 4x5 MP
P3737-PLE Panoramic Camera offers 4x5 MP
Product Overview
AXIS Panoramic P3737-PLE 5 Megapixel 2K Network Camera - Colour - White - TAA Compliant - Zipstream, Motion JPEG, H.265 (MPEG-H Part 2/HEVC) Main Profile, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264B, H.264M, H.264H, H.265B, H.265H, ... - 2560 x 1440 - 3.20 mm- 8.10 mm Varifocal Lens - 2.5x Optical - 30 fps - CMOS - Gigabit Ethernet - IK09 - IP66, IP67 - Tamper Resistant
This multidirectional camera offers four channels with 5 MP per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device's integrity and protects it from unauthorized access
> 4x 5 MP at 20 fps per channel
> 360° IR illumination with individually controlled LEDs
> Flexible mounting options
> Support for advanced analytics
> Axis Edge Vault safeguards the device
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Network camera - Helps achieve high-quality video results
- Up to 2560 x 1440 resolution for surveillance in real-time
Technical Specifications
Network (RJ-45) | Yes |
Maximum Power Consumption | 23.30 W |
Storage Type | Memory Card |
Longest Shutter Speed | 1.5 Second |
Shortest Shutter Speed | 1/28000 Second |
HD Recording | Yes |
Camera Iris | Fixed |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | 50°C |
Maximum Operating Humidity | 100% |
Weight (Approximate) | 2 kg |
Durability | Tamper Resistant |
Product Color | White |
Color Family | White |
Protocols | SNMP (v1/v2c/v3) |
NTS | |
SRTP/RTSPS | |
SSH | |
TCP | |
TLS | |
UDP | |
UDP/TCP/TLS | |
UPnP | |
SNMPv1/v2c/v3 (MIB2) | |
NTP | |
MQTT v3.1.1 | |
MQTT | |
RTCP | |
RTP | |
RTSP | |
SFTP | |
SMB/CIFS | |
SMTP | |
ARP | |
CDP | |
DDNS | |
DHCPv4/v6 | |
DHCPv6 | |
DNS | |
DNS/DNSv6 | |
DNSv6 | |
FTP | |
HTTP | |
HTTPS | |
ICMP | |
ICMPv4/ICMPv6 | |
IEEE 802.1AR | |
IEEE 802.1X | |
IGMPv1/v2/v3 | |
IPv4 | |
IPv6 USGv6 | |
LLDP | |
mDNS (Bonjour) | |
Connectivity Technology | Wired |
Ethernet Technology | Gigabit Ethernet |
Remote Management | Yes |
Image Sensor Size | 1/2.7" |
Image Sensor Type | CMOS |
Effective Camera Resolution | 5 Megapixel |
Field of View | Horizontal field of view: 99°-37° Vertical field of view: 70°-28° Diagonal field of view: 134°-47° |
Number of Sensors | 4 |
Optical Zoom | 2.5x |
Maximum Aperture | f/1.9 |
Maximum Focal Length | 8.10 mm |
Minimum Focal Length | 3.20 mm |
Minimum Aperture | f/3.2 |
Lens Included | Yes |
Product Type | Network Camera |
Manufacturer Part Number | 02634001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Model | P3737-PLE |
Product Name | P3737-PLE Panoramic Camera |
Product Line | Panoramic |
Product Series | P37 |
Brand Name | AXIS |
Video Formats | H.264B |
H.264B (MPEG-4 Part 10/AVC) | |
H.264H | |
H.264H (MPEG-4 Part 10/AVC) | |
H.264M | |
H.265H | |
H.265B | |
Motion JPEG | |
Zipstream | |
H.265M | |
H.265 (MPEG-H Part 2/HEVC) Main Profile | |
H.264M (MPEG-4 Part 10/AVC) | |
Maximum Video Resolution | 2560 x 1440 |
Maximum Frame Rate | 30 fps |
Features | 3D Digital Noise Reduction |
Back Light Compensation (BLC) | |
Wide Dynamic Range | |
Vehicle Detection | |
Password Protection | |
Cross Line Detection | |
Highlight Compensation (HLC) | |
Human Detection | |
Mirror | |
Motion Detection | |
Noise Detection | |
TAA Compliant | Yes |
Impact Protection Rating | IK09 |
Ingress Protection Rating | IP67 |
IP66 |
