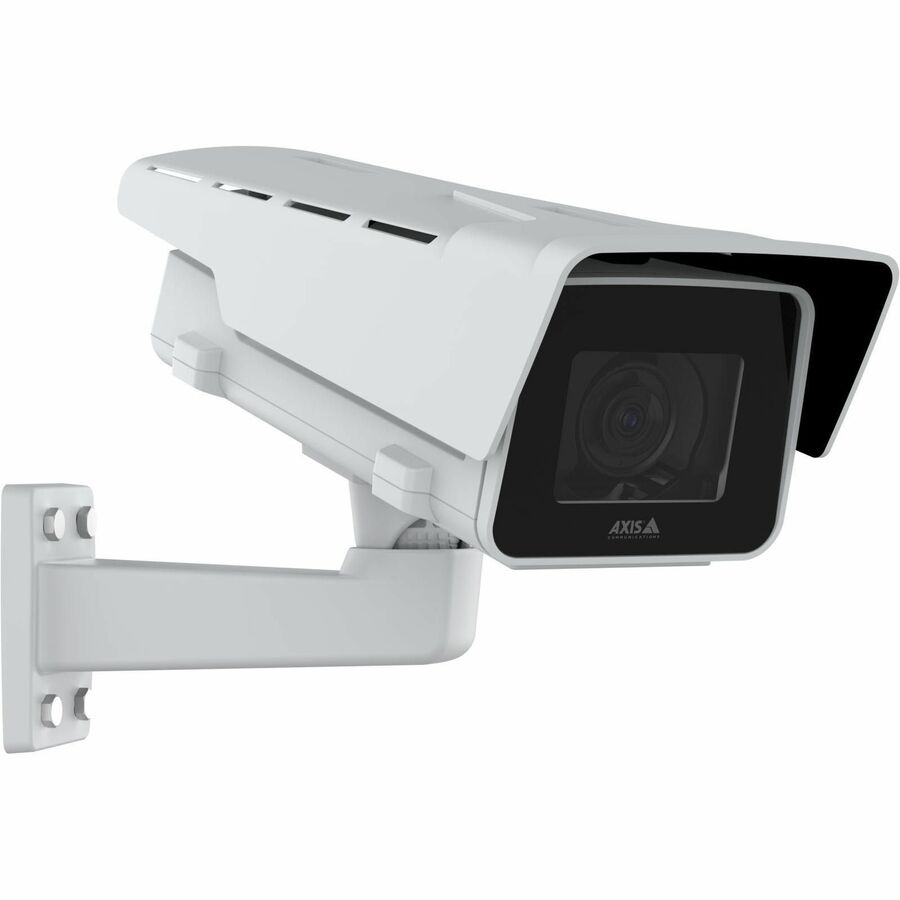

AXIS P1385-E day/night box camera 1/2.8i
AXIS P1385-E day/night box camera 1/2.8i
Product Overview
AXIS P1385-E 2 Megapixel Outdoor Full HD Network Camera - Colour - Box - White - TAA Compliant - H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream, H.264, H.265, H.264B, H.264H, H.264M - 1920 x 1080 - 2.80 mm- 13 mm Varifocal Lens - 4.6x Optical - 60 fps - RGB CMOS - Gigabit Ethernet - Wall Mount, CS Mount - IK10 - IP66, IP67 - Weather Resistant, Impact Resistant, Shock Proof - Audio Support
This robust camera delivers excellent image quality in 2 MP. It can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. And Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Scene profiles can be automatically optimized for specific scenarios. PoE and redundant DC power ensure flexible installation. With a DLPU, you can run advanced features and powerful analytics on the edge. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
- Excellent image quality in HDTV 1080p
- -40 °C to 60 °C (-40 °F to 140 °F)
- Robust and impact-resistant design
- Analytics with deep learning
- Built-in cybersecurity with Axis Edge Vault
- Features RGB CMOS sensor
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
Technical Specifications
Audio Support | Yes |
Network (RJ-45) | Yes |
Storage Type | Memory Card |
Longest Shutter Speed | 2 Second |
Shortest Shutter Speed | 1/37000 Second |
PTZ Modes | Digital PTZ |
Preset Point |
Color Supported | Colour |
Image Sensor Size | 1/2.8" |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 2 Megapixel |
Field of View | Horizontal field of view: 121°-26° Vertical field of view: 64°-15° |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 60°C |
Minimum Storage Temperature | -40°C |
Maximum Storage Temperature | 65°C |
Maximum Operating Humidity | 100% |
Input Voltage | 28 V DC |
10 V DC | |
Maximum Power Consumption | 25.50 W |
Power Source Type | DC |
PoE |
Lens Type | Varifocal |
Optical Zoom | 4.6x |
Maximum Aperture | f/1.4 |
Maximum Focal Length | 13 mm |
Minimum Focal Length | 2.80 mm |
Lens Mount Type | CS-Mount |
Lens Included | Yes |
Product Type | Network Camera |
Manufacturer Part Number | 02734-001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Model | P1385-E |
Product Name | P1385-E Box Camera |
Product Series | P13 |
Brand Name | AXIS |
Protocols | SRTP/RTSPS |
ZeroConf | |
TCP | |
TLS | |
UDP | |
UDP/TCP/TLS | |
SSH | |
UPnP | |
ARP | |
CDP | |
CIFS/SMB | |
DDNS | |
DHCPv4/v6 | |
DiffServ (QoS) | |
DNS/DNSv6 | |
FTP | |
HTTP | |
HTTP/2 | |
HTTPS | |
ICMP | |
ICMPv4/ICMPv6 | |
IEEE 802.1AR | |
IEEE 802.1X (EAP-TLS) | |
IGMPv1/v2/v3 | |
IPv4 | |
IPv6 USGv6 | |
LLDP | |
mDNS (Bonjour) | |
MQTT v3.1.1 | |
NTP | |
NTS | |
ONVIF | |
RFC 3164/5424 | |
RTCP | |
RTSP | |
SFTP | |
SMTP | |
SNMPv1/v2c/v3 (MIB2) | |
Connectivity Technology | Wired |
Ethernet Technology | Gigabit Ethernet |
Remote Management | Yes |
Weight (Approximate) | 2.28 kg |
Durability | Impact Resistant |
Shock Proof | |
Weather Resistant | |
Form Factor | Box |
Mount Type | Wall Mount |
CS Mount | |
Product Color | White |
Color Family | White |
Product Material | Aluminium |
Plastic |
Video Formats | H.265 (MPEG-H Part 2/HEVC) Main Profile |
Motion JPEG | |
H.265 | |
H.264 | |
H.264M (MPEG-4 Part 10/AVC) | |
Zipstream | |
H.264B | |
H.264B (MPEG-4 Part 10/AVC) | |
H.264H | |
H.264H (MPEG-4 Part 10/AVC) | |
H.264M | |
Maximum Video Resolution | 1920 x 1080 |
Maximum Frame Rate | 60 fps |
Features | 2D Noise Reduction |
3D Noise Reduction | |
Wide Dynamic Range | |
White Balance | |
Privacy Masking | |
Noise Reduction | |
Audio Detection | |
Day/Night | |
Defog | |
Forensic WDR | |
TAA Compliant | Yes |
Indoor/Outdoor | Outdoor |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP67 |
IP66 |
Recording Formats | Full HD |
HD Recording | Yes |
Camera Iris | DC |
P-iris | |
Languages Support | Polish |
Korean | |
Japanese | |
Italian | |
German | |
French | |
Finnish | |
English | |
Dutch | |
Czech | |
Vietnamese | |
Turkish | |
Traditional Chinese | |
Thai | |
Swedish | |
Spanish | |
Portuguese | |
Russian | |
Simplified Chinese | |
Infrared (IR) Cut-off Filter | Yes |
AI-powered | Yes |
Wide Dynamic Range Detail | 120 dB |
