Product Overview

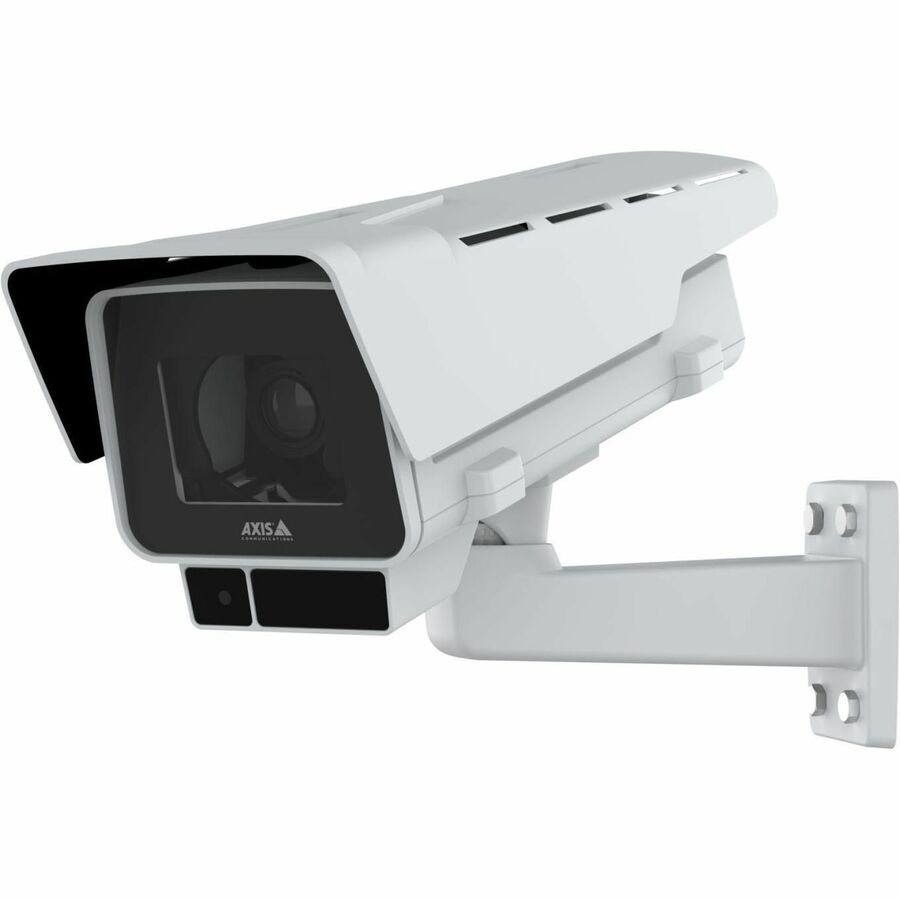

AXIS P1388-LE 8 Megapixel Outdoor 4K Network Camera - Colour - Box - White - TAA Compliant - 50 m Infrared Night Vision - H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream, H.264B, H.264M, H.264H, H.265 - 3840 x 2160 - 3.90 mm- 10 mm Varifocal Lens - 2.6x Optical - 60 fps - CMOS - Gigabit Ethernet - Wall Mount - IK10 - IP66, IP67 - Impact Resistant, Vandal Resistant, Snow Resistant, Rain Res
This robust, outdoor camera has a clear deterrent effect. It offers excellent 8 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.
Made for the great outdoors
This IP66-, IP67-, IK10- andNEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images.AXIS P13 Weathershield Extension Ais also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 4K. Lightfinder 2.0 andForensic WDRensure true colors and great detail in challenging light or near darkness. And it offersP-Irisfor images with better contrast, clarity, resolution, and depth of field. Additionally,OptimizedIRenables surveillance in total darkness up to 50 m (164 ft). And, with shock detection and a tampering alarm, you'll be informed if there are any attempts to interfere with the camera.
Secure and powerful
AXIS P1388-LE offersAxis Edge Vault, a hardware-basedcybersecurityplatform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes adeep learning processing unit (DLPU)so you can run advanced features and powerful analytics on the edge. For instance,AXIS Object Analyticscan detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Wide Dynamic Range - WDR
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Lightfinder
Capture color images in low-light conditions.
Zipstream
Save bandwidth and space without sacrificing valuable information.
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 resolution for surveillance in real-time
- Provides night vision of objects at a distance of up to 50 m
Technical Specifications
Network (RJ-45) | Yes |
Storage Type | Memory Card |
Longest Shutter Speed | 2 Second |
Shortest Shutter Speed | 1/66500 Second |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 60°C |
Maximum Operating Humidity | 100% |
Color Supported | Colour |
Image Sensor Size | 1/1.8" |
Image Sensor Type | CMOS |
Effective Camera Resolution | 8 Megapixel |
Field of View | Horizontal field of view: 122°-46° Vertical field of view: 64°-26° |
Input Voltage | 10 V DC |
28 V DC | |
Maximum Power Consumption | 25.50 W |
Power Source Type | DC |
PoE |
Protocols | DiffServ (QoS) |
DHCPv4/v6 | |
FTP | |
HTTP | |
HTTP/2 | |
HTTPS | |
ICMP | |
ICMPv4/ICMPv6 | |
IEEE 802.1AR | |
IEEE 802.1X (EAP-TLS) | |
IGMPv1/v2/v3 | |
IPv4 | |
IPv6 USGv6 | |
mDNS (Bonjour) | |
MQTT v3.1.1 | |
NTP | |
NTS | |
QoS | |
RFC 3164/5424 | |
RTCP | |
RTP | |
RTSP | |
SFTP | |
SMB/CIFS | |
SMTP | |
SNMPv1/v2c/v3 (MIB2) | |
SRTP/RTSPS | |
UPnP | |
ZeroConf | |
DNS/DNSv6 | |
UDP/TCP/TLS | |
UDP | |
LLDP | |
DDNS | |
ARP | |
CDP | |
SSH | |
Syslog | |
TCP | |
TLS | |
Connectivity Technology | Wired |
Ethernet Technology | Gigabit Ethernet |
Remote Management | Yes |
Lens Type | Varifocal |
Optical Zoom | 2.6x |
Maximum Aperture | f/1.5 |
Maximum Focal Length | 10 mm |
Minimum Focal Length | 3.90 mm |
Lens Mount Type | CS-Mount |
Lens Included | Yes |
Product Type | Network Camera |
Manufacturer Part Number | 02738-001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Model | P1388-LE |
Product Name | AXIS P1388-LE Box Camera |
Product Series | P13 |
Brand Name | AXIS |
Recording Formats | 4K |
Night Vision | Yes |
HD Recording | Yes |
Night Vision Distance | 50 m |
Camera Iris | DC |
P-iris | |
Night Vision Type | Infrared |
AI-powered | Yes |
Weight (Approximate) | 2.46 kg |
Durability | Impact Resistant |
Rain Resistant | |
Snow Resistant | |
Vandal Resistant | |
Form Factor | Box |
Mount Type | Wall Mount |
Product Color | White |
Color Family | White |
Video Formats | H.264B |
H.264B (MPEG-4 Part 10/AVC) | |
H.264H | |
H.264H (MPEG-4 Part 10/AVC) | |
H.264M | |
H.264M (MPEG-4 Part 10/AVC) | |
Zipstream | |
H.265 | |
H.265 (MPEG-H Part 2/HEVC) Main Profile | |
Motion JPEG | |
Maximum Video Resolution | 3840 x 2160 |
Maximum Frame Rate | 60 fps |
Features | Gain Control |
Motion Detection | |
Multi-view Stream | |
PTZ | |
SD Card Local Storage | |
Video Management System | |
Wide Dynamic Range | |
Audio Detection | |
Built-in IR LED | |
Day/Night | |
Electronic Image Stabilization | |
TAA Compliant | Yes |
Indoor/Outdoor | Outdoor |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP66 |
IP67 |
