Product Overview

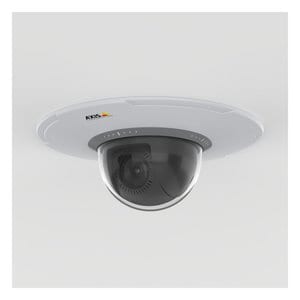

AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Colour - 4 Pack - Dome - White - H.264, H.265, Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Zipstream - 2668 x 1512 - 4.70 mm- 47 mm Varifocal Lens - 10x Optical - 60 fps - RGB CMOS - Fast Ethernet - IK09 - IP66 - Vandal Resistant - Day/Night, Wide Dynamic Range, Ingress Protection, HTTPS Encryption, Password Protection, Privacy Masking, Wh
Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.
Don't miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images-every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includesForensic WDRfor clarity when there's both dark and light areas in the scene.
Flexible installations-indoors and out
AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU)enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles-all tailored to your specific needs.
Enjoy more for less
This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. AxisZipstreamwith H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, AxisEdge Vault, a hardware-basedcybersecurityplatform, safeguards the device and protects sensitive information from unauthorized access.
- 4 MP and 10x optical zoom
- Continuous 360° pan
- Support for analytics with deep learning
- Compact design
- PoE or 24 V with audio and I/O connectivity
Technical Specifications
Network (RJ-45) | Yes |
Storage Type | Memory Card |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | 50°C |
Longest Shutter Speed | 0.2 Second |
Shortest Shutter Speed | 1/27000 Second |
HD Recording | Yes |
Camera Iris | P-iris |
Auto |
Color Supported | Colour |
Image Sensor Size | 1/3" |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 4 Megapixel |
Field of View | Horizontal: 59.1°-6.5°, Vertical: 35°-3.67° |
Protocols | ARP |
SNMP | |
ZeroConf | |
SNMPv1/v2c/v3 (MIB2) | |
CDP | |
CIFS/SMB | |
DDNS | |
DHCPv4/v6 | |
DiffServ (QoS) | |
DNS/DNSv6 | |
FTP | |
HTTP | |
HTTP/2 | |
HTTPS | |
ICMP | |
ICMPv4/ICMPv6 | |
IEEE 802.1AR | |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) | |
IGMPv1/v2/v3 | |
IPv4 | |
IPv6 USGv6 | |
LLDP | |
MQTT v3.1.1 | |
NTP | |
NTS | |
ONVIF | |
RTCP | |
RTP | |
RTSP | |
SFTP | |
SMTP | |
SRTP/RTSPS | |
SSH | |
Syslog | |
TCP | |
TLS | |
UDP | |
UPnP | |
Connectivity Technology | Wired |
Ethernet Technology | Fast Ethernet |
Remote Management | Yes |
Weight (Approximate) | 1 kg |
Durability | Vandal Resistant |
Form Factor | Dome |
Product Color | White |
Color Family | White |
Input Voltage | 28 V DC |
20 V DC | |
Maximum Power Consumption | 12.95 W |
Power Source Type | DC |
PoE |
Lens Type | Varifocal |
Optical Zoom | 10x |
Maximum Aperture | f/1.6 |
Maximum Focal Length | 47 mm |
Minimum Focal Length | 4.70 mm |
Minimum Aperture | f/3 |
Lens Included | Yes |
Product Type | Network Camera |
Manufacturer Part Number | 02768-021 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Packaged Quantity | 4 |
Manufacturer | Axis Communications |
Product Model | M5526-E |
Product Name | M5526-E PTZ Camera |
Product Series | M55 |
Brand Name | AXIS |
Video Formats | H.264H (MPEG-4 Part 10/AVC) |
Motion JPEG | |
H.264 | |
H.264B (MPEG-4 Part 10/AVC) | |
Zipstream | |
H.264M (MPEG-4 Part 10/AVC) | |
H.265 | |
H.265 (MPEG-H Part 2/HEVC) Main Profile | |
Maximum Video Resolution | 2668 x 1512 |
Maximum Frame Rate | 60 fps |
Package Contents |
|
Features | White Balance |
Wide Dynamic Range | |
HTTPS Encryption | |
Ingress Protection | |
Noise Reduction | |
Password Protection | |
Privacy Masking | |
PTZ | |
3D Noise Reduction | |
Day/Night | |
Environmentally Friendly | Yes |
Indoor/Outdoor | Indoor/Outdoor |
Impact Protection Rating | IK09 |
Ingress Protection Rating | IP66 |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) |
