Product Overview

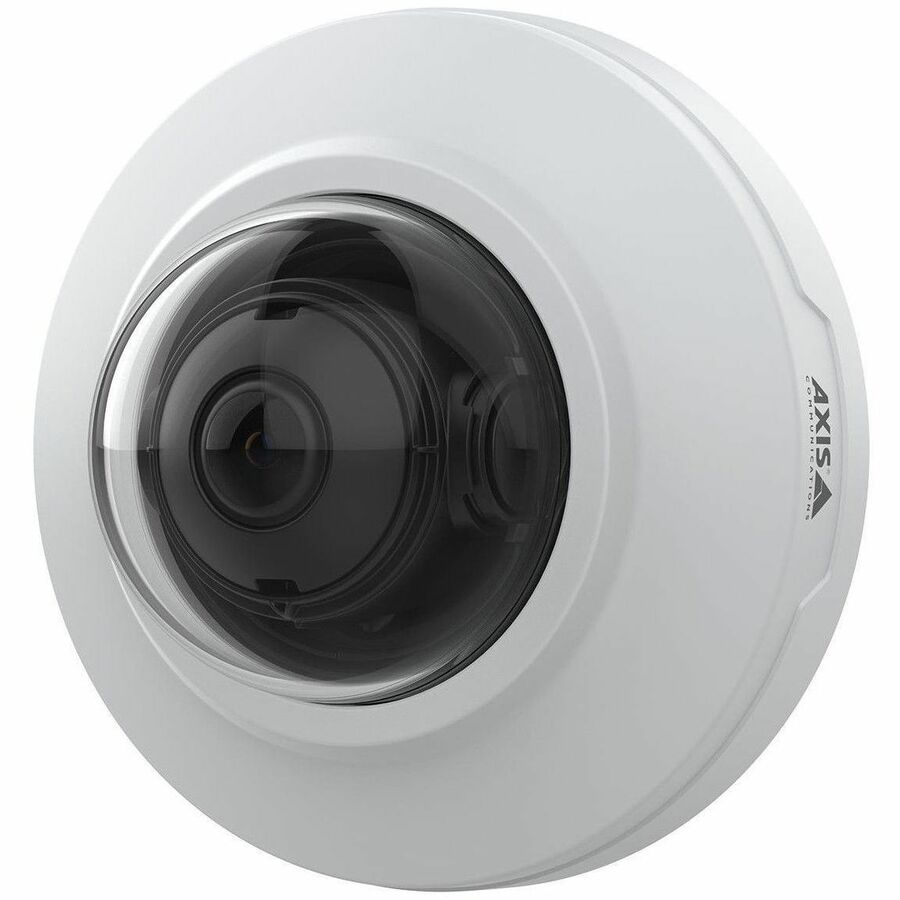

AXIS M3086-V 4 Megapixel Indoor Network Camera - Colour - Mini Dome - White - H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, H.264, H.265, Zipstream - 2688 x 1512 - 2.40 mm Fixed Lens - 30 fps - RGB CMOS - Fast Ethernet - IK08 - IP42 - Vandal Resistant, Water Resistant, Impact Resistant, Dust Resistant
This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there's both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects - all tailored to your specific needs. Furthermore, this compact, easy-toinstall, vandal-resistant camera offers a wide-angle view of 130° and comes factory focused so there's no manual focusing required.
- Great image quality in 4 MP
- Compact, discreet design
- WDR and Lightfinder
- Support for analytics with deep learning
- Built-in cybersecurity features
- Features RGB CMOS sensor
- Network camera - Helps achieve high-quality video results
- Up to 2688 x 1512 resolution for surveillance in real-time
Technical Specifications
| Network (RJ-45) | Yes |
| Maximum Power Consumption | 4.20 W |
| Storage Type | Memory Card |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/38500 Second |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 45°C |
| Maximum Operating Humidity | 85% |
| Protocols | UPnP |
| ZeroConf | |
| MQTT v3.1.1 | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SIP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| TCP | |
| TLS | |
| UDP | |
| HTTP | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| NTP | |
| NTS | |
| ONVIF | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| mDNS (Bonjour) | |
| MQTT | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
| Maximum Aperture | f/2.1 |
| Maximum Focal Length | 2.40 mm |
| Lens Included | Yes |
| Image Sensor Size | 1/2.7" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Field of View | Horizontal field of view: 130° Vertical field of view: 93° |
| Product Type | Network Camera |
| Manufacturer Part Number | 02832001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | M3086-V |
| Product Name | Fixed 4 MP Mini Dome with Deep Learning Network Camera |
| Brand Name | AXIS |
| Weight (Approximate) | 150 g |
| Durability | Impact Resistant |
| Dust Resistant | |
| Vandal Resistant | |
| Water Resistant | |
| Form Factor | Mini Dome |
| Diameter | 101 mm |
| Height | 56 mm |
| Product Color | White |
| Color Family | White |
| Video Formats | Zipstream |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| H.264 | |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Features | Audio Compression |
| Day/Night | |
| HTTPS Encryption | |
| Mirror | |
| Motion Detection | |
| Multi-view Stream | |
| Wide Dynamic Range | |
| Privacy Masking | |
| Video Management System | |
| White Balance | |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
