AXIS M4318-PLR

AXIS M4318-PLR

AXIS M4318-PLR

Product Overview

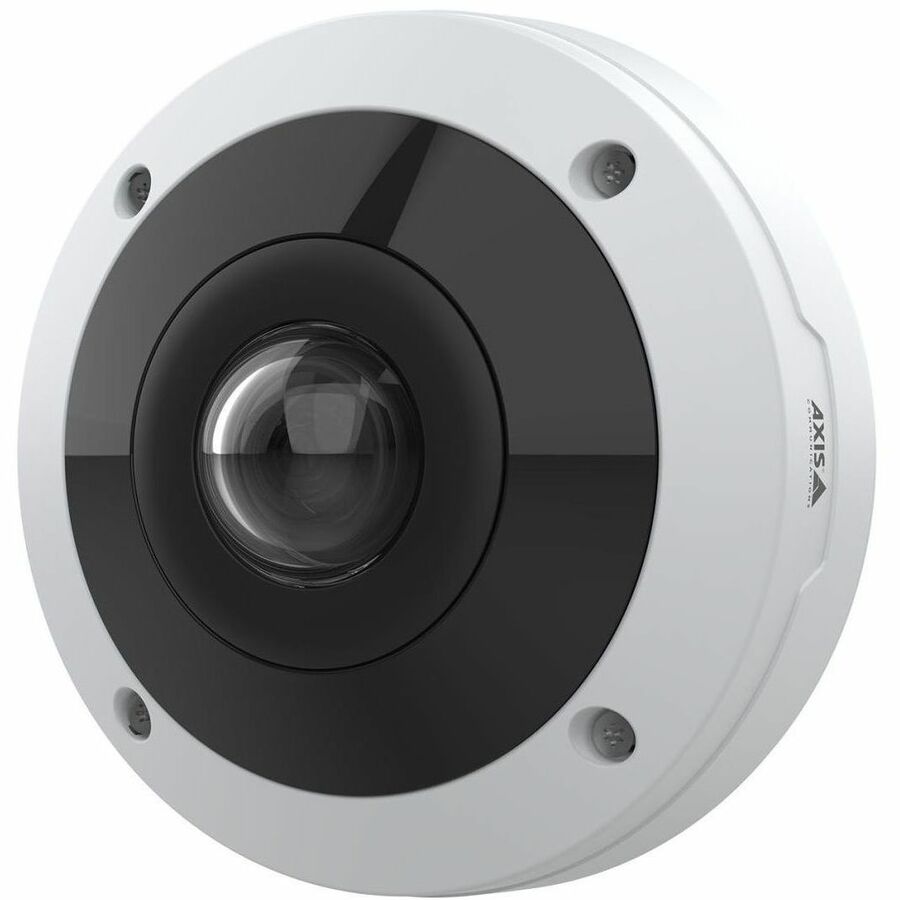

AXIS M4318-PLR 12 Megapixel Outdoor 4K Network Camera - Colour - Fisheye - White - TAA Compliant - 15 m Infrared Night Vision - H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), Motion JPEG, Zipstream, H.264M, H.264H, H.265 - 3840 x 2160 - 1.20 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - Bracket Mount, Junction Box Mount - IK10 - IP66

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.

360° view with just one camera

Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don't need to invest in several cameras-with AXIS M4318-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there's just one camera to install, one cable to drop, one IP address, onevideo managementsoftware (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.

Outstanding images

With a stereographic lens and Sharpdome 360, AXIS M4318-PLR delivers greater sharpness at the edges of the image. It features a 12 MP sensor and offers great image quality around the clock, regardless of the light conditions.Forensic WDRprovides clarity when there's both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.

Secure and easy

AXIS M4318-PLR offers built-incybersecurityfeatures to help prevent unauthorized access and safeguard your system. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis devices on your network. AxisZipstreamwith H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with adeep learning processing unit (DLPU), this high-performance cameradelivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • For remote surveillance needs, this network camera is best suited
  • Up to 3840 x 2160 video resolution
  • Up to 15 m of night vision

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Power Description
Maximum Power Consumption12.95 W
Storage
Storage TypeMemory Card
Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/8100 Second
Environmental Conditions
Minimum Operating Temperature-40°C
Maximum Operating Temperature50°C
Maximum Operating Humidity100%
Lens
Maximum Aperturef/2.2
Maximum Focal Length1.20 mm
Lens IncludedYes
Network & Communication
ProtocolsIEEE 802.1X
LLDP
IPv4
IPv6 USGv6
mDNS (Bonjour)
MQTT
MQTT v3.1.1
NTP
NTS
ONVIF
RTCP
RTP
ARP
CDP
CIFS/SMB
DDNS
DHCPv4/v6
DiffServ (QoS)
DNS/DNSv6
FTP
TLS
UDP
UPnP
ZeroConf
IGMPv1/v2/v3
SRTP/RTSPS
SNMPv1/v2c/v3 (MIB2)
SSH
TCP
HTTP
HTTPS
ICMP
ICMPv4/ICMPv6
RTSP
SFTP
SIP
SMTP
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Remote ManagementYes
Display & Graphics
Image Sensor Size1/2.3"
Image Sensor TypeCMOS
Effective Camera Resolution12 Megapixel
Field of ViewHorizontal field of view: 182° Vertical field of view: 182°
Technical Information
Night VisionYes
HD RecordingYes
Night Vision Distance15 m
Camera IrisFixed
Night Vision TypeInfrared
General Information
Product TypeNetwork Camera
Manufacturer Part Number02834001
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelM4318-PLR
Product NameM4318-PLR Panoramic Camera
Brand NameAXIS
Physical Characteristics
Weight (Approximate)860 g
Form FactorFisheye
Mount TypeBracket Mount
Junction Box Mount
Diameter149 mm
Height70 mm
Product ColorWhite
Color FamilyWhite
Video
Video FormatsH.264H
H.264H (MPEG-4 Part 10/AVC)
H.264M
H.264M (MPEG-4 Part 10/AVC)
H.265
Zipstream
Motion JPEG
Maximum Video Resolution3840 x 2160
Maximum Frame Rate30 fps
Miscellaneous
FeaturesAudio Compression
Motion Detection
Wide Dynamic Range
White Balance
Day/Night
HTTPS Encryption
Mirror
Multi-view Stream
Privacy Masking
Video Management System
TAA CompliantYes
Impact Protection RatingIK10
Ingress Protection RatingIP66
