AXIS P1265 Mk II Modular Pinhole Camera
AXIS P1265 Mk II Modular Pinhole Camera
Product Overview
AXIS P1265 Mk II Indoor/Outdoor Full HD Network Camera - Colour - White - TAA Compliant - H.264, H.265, Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Zipstream - 1920 x 1080 - 3.70 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - IP3X - Wide Dynamic Range, HTTPS Encryption, SD Card Local Storage, White Balance, Mirror, Privacy Masking, AI Analytics, Password Protection, Motion Detection, Human Dete

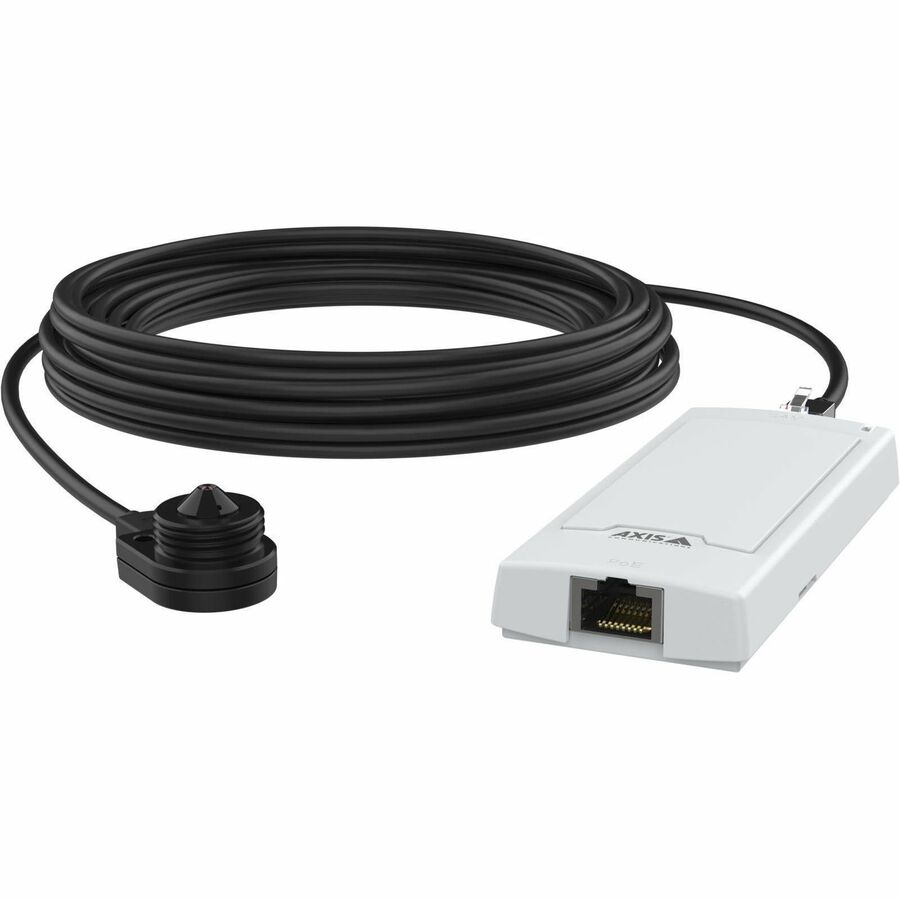

Based on the modular concept, AXIS P1265 Mk II features a tiny, pinhole-sized sensor unit that connects via cable to the main unit, so the two parts can be placed separately from each other. This pinhole sensor unit offers extremely discreet installation. Ideal for a wide range of indoor applications, it's easy to install in tight spaces, for instance, ATMs and ticketing machines. The sensor can be mounted up to 15 m from the main unit and a detachable cable ensures flexible installation and upgrade. Additionally, a deep learning processing unit enables the use of advanced analytics.
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
Technical Specifications
| Network (RJ-45) | Yes |
| Storage Type | Memory Card |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/16500 Second |
| Maximum Power Consumption | 4.10 W |
| Power Source Type | PoE |
| Color Supported | Colour |
| Image Sensor Type | CMOS |
| Field of View | Horizontal: 91°, Vertical: 45° |
| Lens Type | Fixed |
| Maximum Aperture | f/2.5 |
| Maximum Focal Length | 3.70 mm |
| Lens Mount Type | M12-mount |
| Lens Included | Yes |
| Weight (Approximate) | 75 g |
| Product Color | White |
| Color Family | White |
| Product Material | Plastic |
| Steel |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 60°C |
| Minimum Storage Temperature | -40°C |
| Maximum Storage Temperature | 65°C |
| Maximum Operating Humidity | 85% |
| Minimum Storage Humidity | 5% |
| Maximum Storage Humidity | 95% |
| Protocols | ZeroConf |
| mDNS (Bonjour) | |
| UDP | |
| TLS v1 | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IEEE 802.1AR | |
| IEEE 802.1X (EAP-TLS) | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| UPnP | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| ARP | |
| Syslog | |
| TCP | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
| Product Type | Network Camera |
| Manufacturer Part Number | 02858-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | P1265 Mk II |
| Product Name | P1265 Mk II Modular Pinhole Camera |
| Product Series | P12 |
| Brand Name | AXIS |
| Video Formats | H.264 |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| Zipstream | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Features | Password Protection |
| Wide Dynamic Range | |
| White Balance | |
| AI Analytics | |
| HTTPS Encryption | |
| Human Detection | |
| Mirror | |
| Motion Detection | |
| Privacy Masking | |
| SD Card Local Storage | |
| Vehicle Detection | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP3X |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Languages Support | French |
| German | |
| Italian | |
| Japanese | |
| Korean | |
| Polish | |
| Portuguese | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| Vietnamese | |
| Finnish | |
| English | |
| Czech | |
| Dutch | |
| AI-powered | Yes |
