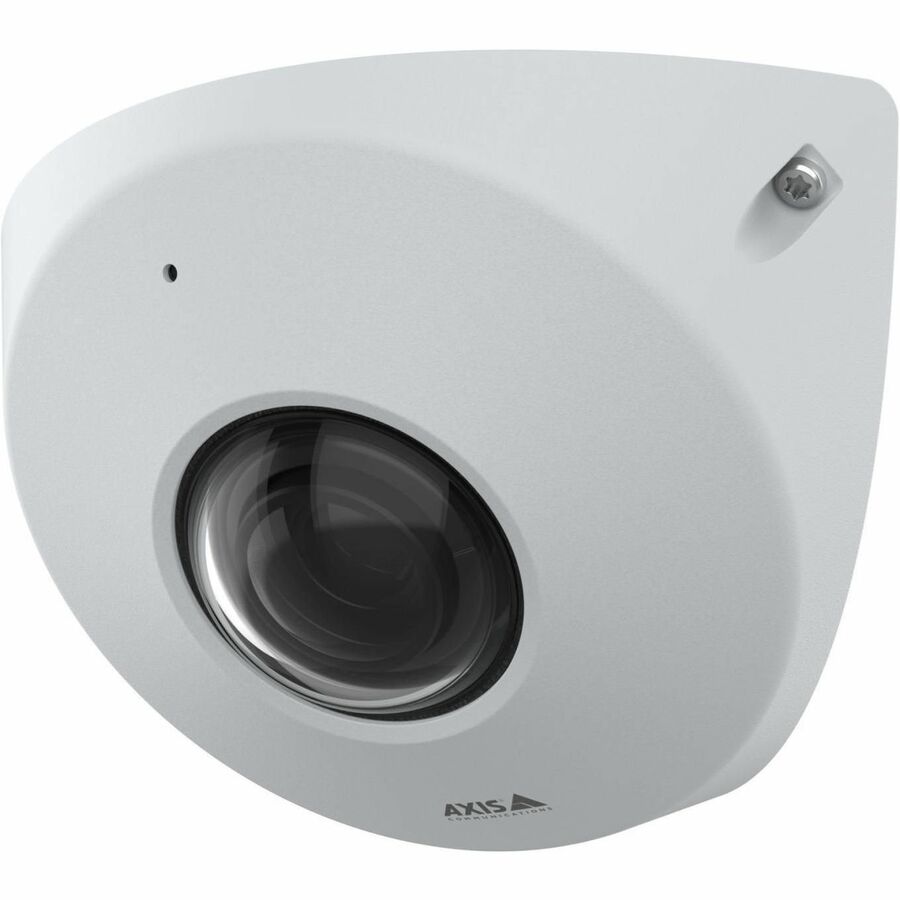

AXIS P9117-PV indoor corner mounted with
AXIS P9117-PV indoor corner mounted with
Product Overview
AXIS P9117-PV 6 Megapixel Indoor Network Camera - Colour - Dome - White - TAA Compliant - H.264, H.265, Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Zipstream - 2160 x 2160 - 1.10 mm Fixed Lens - 60 fps - RGB CMOS - Fast Ethernet - Corner Mount, Wall Mount, Ceiling Mount - IK10 - IP66 - Vandal Resistant, Dust Resistant
6 MP corner camera with no blind spots
AXIS P9117-PV delivers 360° panoramic view with no blind spots. This 6 MP corner-mounted camera includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. AXIS TP9801 Cover Steel is also available as an accessory. Featuring a deep learning processing unit, it's possible to run powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different objects of interest. With a built-in microphone, it's out-of-the-box-ready for AXIS Audio Analytics. Furthermore, Axis edge vault, a hardware-based cybersecurity platform, safeguards the device.
- Full coverage and no blind spots
- 6 MP with stereographic lens
- Built-in microphone and Axis Audio Analytics
- Vandal-resistant (IK10) and IP66-rated dust protection
- Built-in cybersecurity with Axis edge vault
Technical Specifications
| Network (RJ-45) | Yes |
| Storage Type | Memory Card |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/33500 Second |
| Maximum Power Consumption | 5.30 W |
| Power Source Type | PoE |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | 55°C |
| Maximum Operating Humidity | 85% |
| HD Recording | Yes |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Lens Type | Fixed |
| Maximum Aperture | f/2.2 |
| Maximum Focal Length | 1.10 mm |
| Lens Included | Yes |
| Protocols | ZeroConf |
| FTP | |
| DiffServ (QoS) | |
| DHCPv4/v6 | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| Syslog | |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMP | |
| DNS/DNSv6 | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IEEE 802.1AR | |
| IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
| Color Supported | Colour |
| Image Sensor Size | 1/1.8" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 6 Megapixel |
| Field of View | Overview (1:1) :Horizontal field of view: 176° Vertical field of view: 176° Corner View (4:3) :Horizontal field of view: 115° Vertical field of view: 100° |
| Product Type | Network Camera |
| Manufacturer Part Number | 02864-001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | P9117-PV |
| Product Name | P91 9117-PV Network Camera |
| Product Series | P91 |
| Brand Name | AXIS |
| Video Formats | H.264 |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| Zipstream | |
| Motion JPEG | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Maximum Video Resolution | 2160 x 2160 |
| Maximum Frame Rate | 60 fps |
| Weight (Approximate) | 760 g |
| Durability | Vandal Resistant |
| Dust Resistant | |
| Form Factor | Dome |
| Mount Type | Ceiling Mount |
| Wall Mount | |
| Corner Mount | |
| Height | 92 mm |
| Width | 146 mm |
| Depth | 122 mm |
| Product Color | White |
| Color Family | White |
| Package Contents |
|
| Features | Day/Night |
| HTTPS Encryption | |
| Ingress Protection | |
| Noise Reduction | |
| Password Protection | |
| Privacy Masking | |
| PTZ | |
| White Balance | |
| Wide Dynamic Range | |
| 3D Noise Reduction | |
| Country of Origin | Cambodia |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
