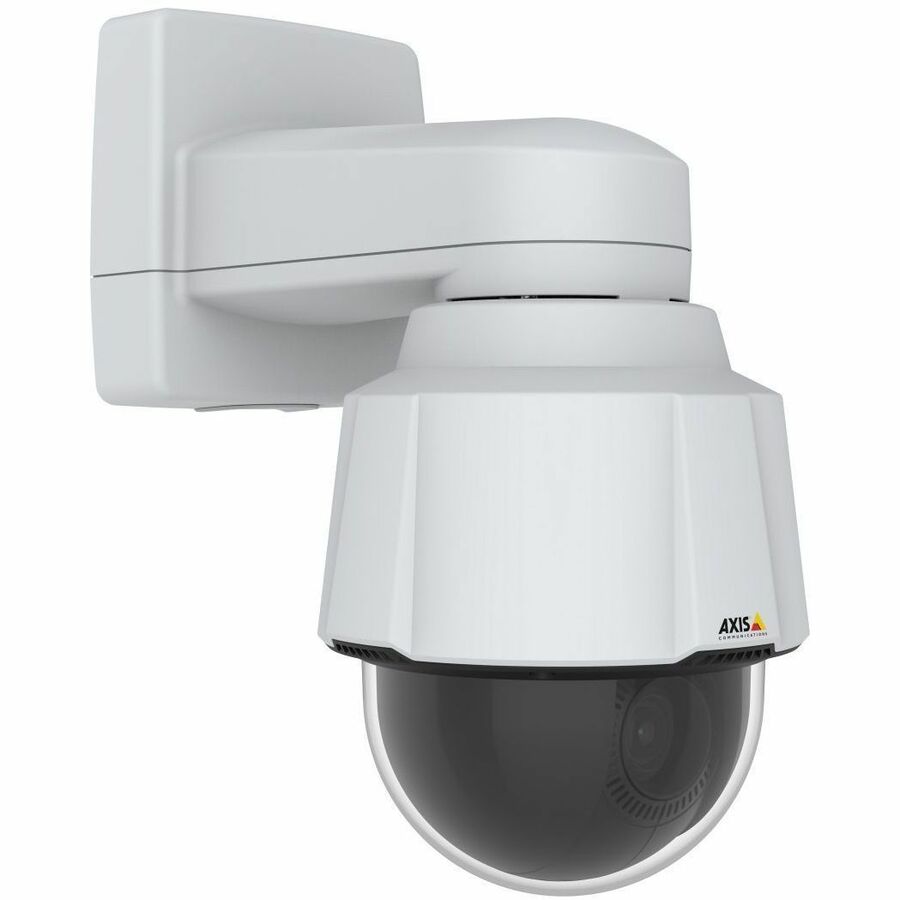

AXIS P5654-E Mk II 50 Hz
AXIS P5654-E Mk II 50 Hz
Product Overview
AXIS P5654-E Mk II Full HD Network Camera - Colour - White - TAA Compliant - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264, H.265, Zipstream, H.264B, H.264H, H.264M - 1920 x 1080 - 4 mm- 84.60 mm Varifocal Lens - 21x Optical - 60 fps - RGB CMOS - Fast Ethernet - Ceiling Mount - IK10 - IP66 - Weather Resistant, Impact Resistant
This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
- HDTV 1080p with 21x optical zoom
- Wide 77° field of view
- Lightfinder 2.0 and Forensic WDR
- Support for advanced analytics
- Axis Edge Vault safeguards the device
- Features RGB CMOS sensor
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 video resolution
Technical Specifications
| Network (RJ-45) | Yes |
| Storage Type | Memory Card |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/66500 Second |
| HD Recording | Yes |
| Camera Iris | Auto |
| Image Sensor Size | 1/2.8" |
| Image Sensor Type | RGB CMOS |
| Field of View | Horizontal field of view: 77.0° - 3.6° / Vertical field of view: 43.1° - 2.0° |
| Protocols | NTCIP |
| NTP | |
| NTS | |
| RFC 3164/5424 | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMP (MIB-2) | |
| SNMP (v1/v2c/v3) | |
| SRTP/RTSPS | |
| SSH | |
| TCP | |
| TLS | |
| UDP | |
| UDP/TCP/TLS | |
| UPnP | |
| ZeroConf | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IEEE 802.1AR | |
| IEEE 802.1X | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| LLDP | |
| mDNS (Bonjour) | |
| MQTT v3.1.1 | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | 50°C |
| Maximum Operating Humidity | 100% |
| Input Voltage | 100 V AC |
| 240 V AC | |
| Maximum Power Consumption | 37 W |
| Optical Zoom | 21x |
| Maximum Focal Length | 84.60 mm |
| Minimum Focal Length | 4 mm |
| Lens Included | Yes |
| Weight (Approximate) | 2.50 kg |
| Durability | Impact Resistant |
| Weather Resistant | |
| Mount Type | Ceiling Mount |
| Product Color | White |
| Color Family | White |
| Product Type | Network Camera |
| Manufacturer Part Number | 02914001 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | P5654-E Mk II |
| Product Name | P5654-E Mk II PTZ Network Camera |
| Brand Name | AXIS |
| Video Formats | H.264B |
| H.264 (MPEG-4 Part 10/AVC) | |
| Zipstream | |
| Motion JPEG | |
| H.265 (MPEG-H Part 2/HEVC) | |
| H.265 | |
| H.264M | |
| H.264H | |
| H.264 | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Features | Removable IR Cut-off Filter |
| Shock Detection | |
| Vehicle Detection | |
| Cross Line Detection | |
| Motion Detection | |
| Human Detection | |
| Password Protection | |
| Day/Night | |
| Defog | |
| Electronic Image Stabilization | |
| Fence Detector | |
| TAA Compliant | Yes |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
