Edge 8-Ch CWDM Mux/Dmx Module
Edge 8-Ch CWDM Mux/Dmx Module
Product Overview
Edge 8-Ch CWDM Mux/Dmx Module

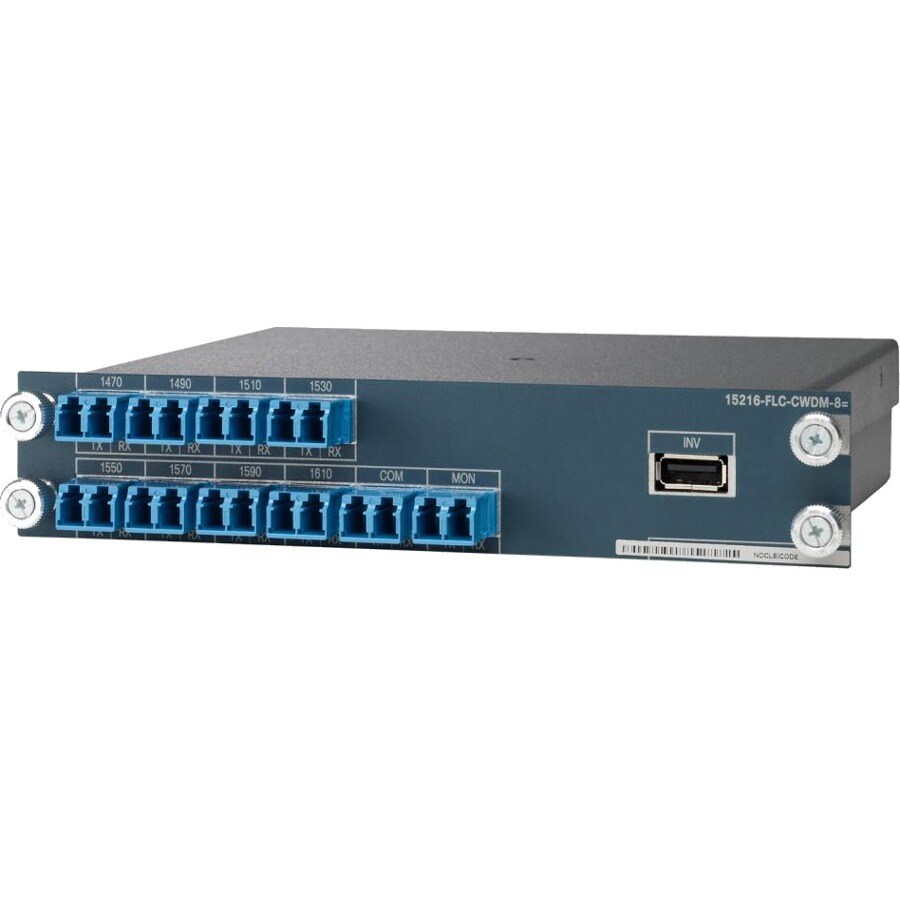

The Cisco® ONS 15216 8-Channel CWDM Multiplexer/Demultiplexer is a passive unit that in the transmit direction, combines eight ITU-T G.694.2 coarse wavelength-division multiplexing (CWDM) wavelengths into a composite signal. In the receive direction, the unit separates a composite signal into eight individual wavelengths.Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 1.0 |
General Information
| Product Type | Data Multiplexer/Demultiplexer |
| Manufacturer Part Number | 15216-FLC-CWDM-8= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | ONS 15215 8-Channel CWDM Muxponder/Demuxponder |
| Brand Name | Cisco |
Physical Characteristics
| Rack Height | 1U |
Interfaces/Ports
| Number of Data Channels | 8 |
| Number of SC Ports | 8 |
Media & Performance
| Connectivity Technology | Wired |
| Media Type Supported | Optical Fiber |
| Network Technology Supported | OC-48 |
Price Trend
Current Price
AUD 8,140.56
