Powerswitch N2224PX-ON
Powerswitch N2224PX-ON
Product Overview

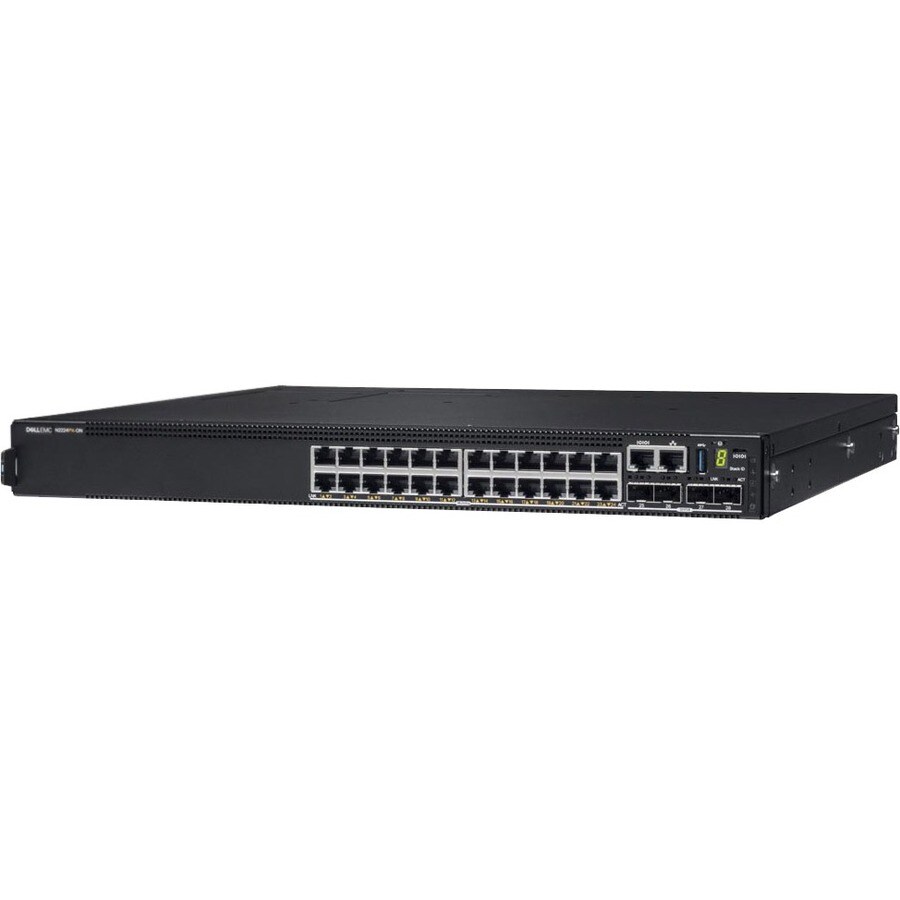

Dell EMC PowerSwitch N2200 N2224PX-ON 24 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
Dell EMC PowerSwitch N2224PX-ON
Latest generation 2.5GbE Campus Access Switches with full scale 2.5GbE MultiGig on all ports and 802.3bt Type-3 (60W) PoE on subset of ports
- N2224PX-ON - 1RU, 24x1/2.5GbE RJ-45 with 802.3bt Type-3 (60W) PoE on 12 ports and 802.3at (30W) PoE on 12 ports
- 160Gbps Stacking with up to 12 members
- 25GbE Uplinks to aggregation
- Powers and backhauls data from 802.11ac Wave 2, 802.11ax WLAN deployments and 802.3bt Type-3 high power PoE applications requiring up to 60W per port.
- Ideal for Mid to Large Enterprise Campus networks, Retail deployments requiring support for a range of PoE devices
- Rack mounting enables you to organize wires & secure cables for professional installation
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Network & Communication
| Layer Supported | 2 |
Warranty
| Additional Warranty Information |
|
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | QSFP+ |
| SFP28 | |
| Total Number of Expansion Slots | 6.0 |
Physical Characteristics
| Weight (Approximate) | 6.67 kg |
| Form Factor | Rack-mountable |
| Height | 43.4 mm |
| Width | 434.1 mm |
| Depth | 400.1 mm |
| Compatible Rack Unit | 1U |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 25 Gigabit Ethernet Expansion Slot |
| 2 x 40 Gigabit Ethernet Stack | |
| 24 x 2.5 Gigabit Ethernet PoE |
Media & Performance
| Network Technology | 2.5GBase-T |
| 40GBase-X | |
| 25GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 210-ASPC |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | N2224PX-ON |
| Product Name | PowerSwitch N2224PX-ON Ethernet Switch |
| Product Line | PowerSwitch |
| Product Series | N2200 |
| Brand Name | Dell EMC |
Price Trend
Current Price
AUD 12,581.00
