N2248X Powerswitch airflow OS6
N2248X Powerswitch airflow OS6
Product Overview

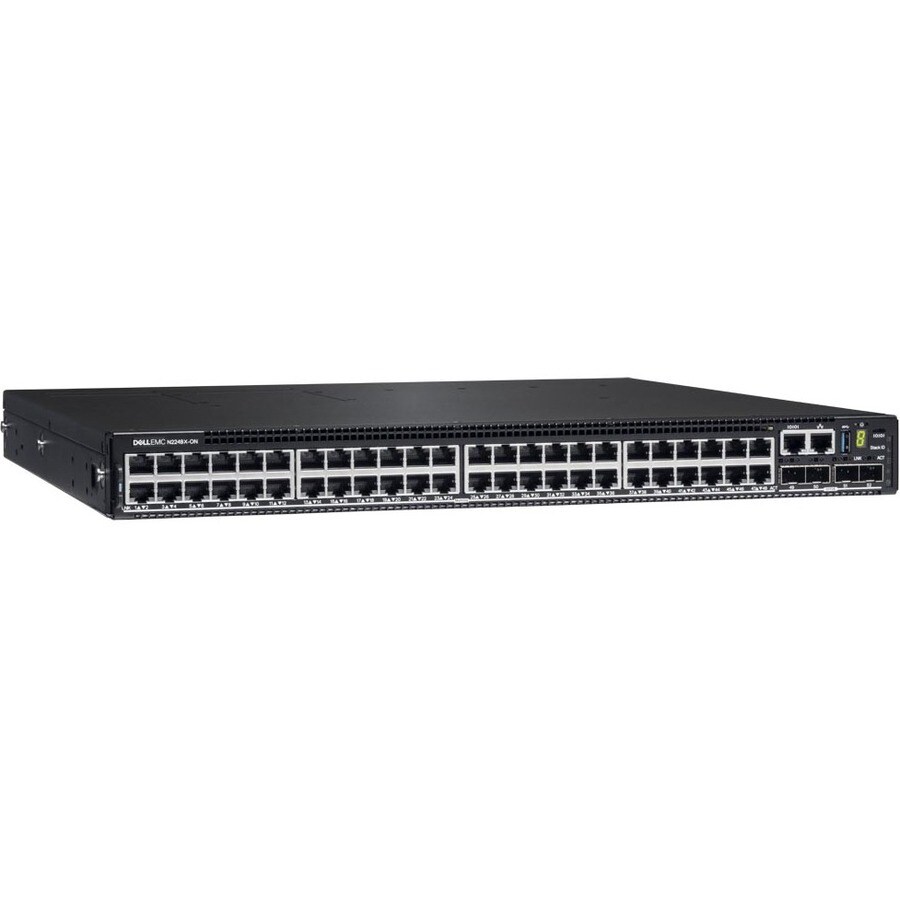

DELL EMC N2248X-ON 48X1/2.5G 4X25G 2X40G STACKING 1XAC PSU IO/PS AIRFLOW OS6
Purpose-built 24 and 48 port Multi-Gig and Multi-Gig 60W PoE access switches
Greater Power Over Ethernet capabilities - enable customers to run larger number of powered devices (video surveillance cameras, building automation, lighting, telephone systems and the like) off of the power that our switches provide.
Greater choice of Network Operating Systems (OS6, Cumulus, Pica8) from leaders in Open Technologies that provide robust connectivity each with its unique strengths.
Newest silicon capabilities, increased downlink bandwidth (2.5GbE), increased uplink bandwidth (25GbE), increased stacking bandwidth (160Gbps).
Enhance employee productivity with better connectivity
- Modernize existing campus networks to handle modern workloads
- Facilitate Workforce Transformation and enhance employee productivity with immersive, bandwidth intensive applications
- Realize the many benefits of IoT and automation with enhanced PoE capabilities that newer Dell EMC PowerSwitch N series deliver
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Layer Supported | 3 |
| Additional Warranty Information |
|
| Expansion Slot Type | SFP28 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4.0 |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Weight (Approximate) | 6.85 kg |
| Form Factor | Rack-mountable |
| Height | 43.4 mm |
| Width | 434.1 mm |
| Depth | 400.1 mm |
| Compatible Rack Unit | 1U |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 2 x 40 Gigabit Ethernet Stack |
| 4 x 25 Gigabit Ethernet Expansion Slot | |
| 48 x 2.5 Gigabit Ethernet Network |
| Network Technology | 25GBase-X |
| 40GBase-X | |
| 2.5GBase-T | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| 40 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 210-ASPD |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | N2248X-ON |
| Product Name | PowerSwitch N2248X-ON Ethernet Switch |
| Product Line | PowerSwitch |
| Product Series | N2200 |
| Brand Name | Dell EMC |
