13ft 2-Port USB to RS232 Serial Adapter

13ft 2-Port USB to RS232 Serial Adapter

13ft 2-Port USB to RS232 Serial Adapter

Product Overview

StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, COM Retention, FTDI, DB9 RS232, Changeable DB9 Screws/Nuts, Windows/macOS/Linux - Add two DB9 RS-232 serial ports to a desktop/laptop using a USB-A port; Interchangeable Screws/Nuts; DB9 screws pre-installed; DB9 Nuts included for device/cable compatibility; Rugged TPE housing; Copper shielding; LED Indicators; Windows/macOS/Linux

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 13ft (4m) straight through 2-Port USB to Serial Adapter Cable.

Serial Port Expansion

The Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

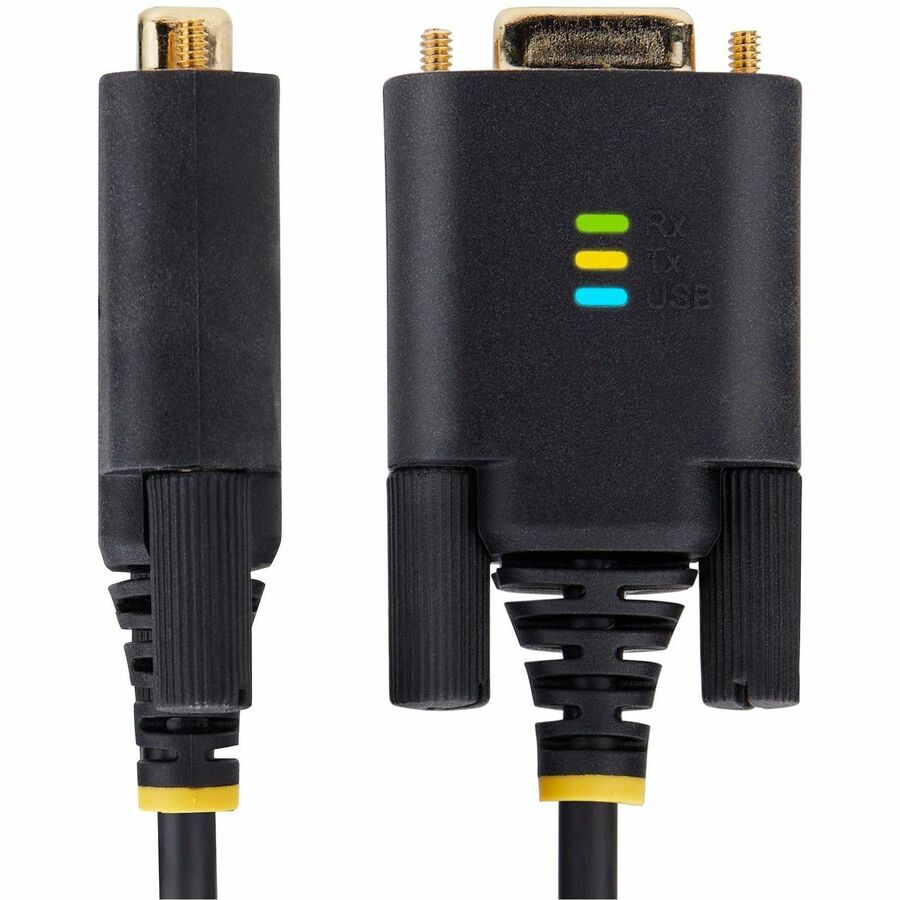

LED Indicators

Data transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.

  • INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to serial devices using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add two DB9 RS-232 ports to a computer, using a USB-A port
  • LED INDICATORS: Each port has dedicated Transmit and Receive LED indicators offering real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
  • COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted
  • BUILD QUALITY: One-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the 2-port serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Mounting bracket included
  • TECH SPECS: 2x DB9 RS232 Ports; 6.5ft (2m) cable length between hub and peripherals (13ft/4m total product length); FTDI FT2232H Chipset; Max Baud Rate: 921.6Kbps; 4KB FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

Technical Specifications

Physical Characteristics
Material Details

Thermoplastic Elastomer (TPE) - Housing

Weight (Approximate)280.7 g
Shielding MaterialCopper
Product ColorBlack
Color FamilyBlack
Product MaterialThermoplastic Elastomer (TPE)
Technical Information
Cable Length3.96 m
Data Transfer Rate480 Mbit/s
Device SupportedComputer
Barcode Scanner
Digital Signage
LED
Monitor
Notebook
Peripheral Device
POS Device
Receipt Printer
Sensor
Desktop Computer
ShieldingYes
FeaturesRugged
EMI/RF Protection
Molded
LED Indicator
ESD Protection
Connector Type on First EndUSB 2.0 Type A - Male
Connector Type on Second EndDB-9 RS-232 - Male
Connector PlatingGold
Connector Gender on First EndMale
Connector Gender on Second EndMale
General Information
Product TypeData Transfer Cable
Manufacturer Part Number2P6FFCUSBSERIAL
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameSerial/USB Data Transfer Cable
Brand NameStarTech.com

Price Trend

Current Price
AUD 143.99
