Product Overview

LENOVO B6510 24 PORTS ACTIVATED W/ 8GB SWL SFPS 2 PS RAIL KIT

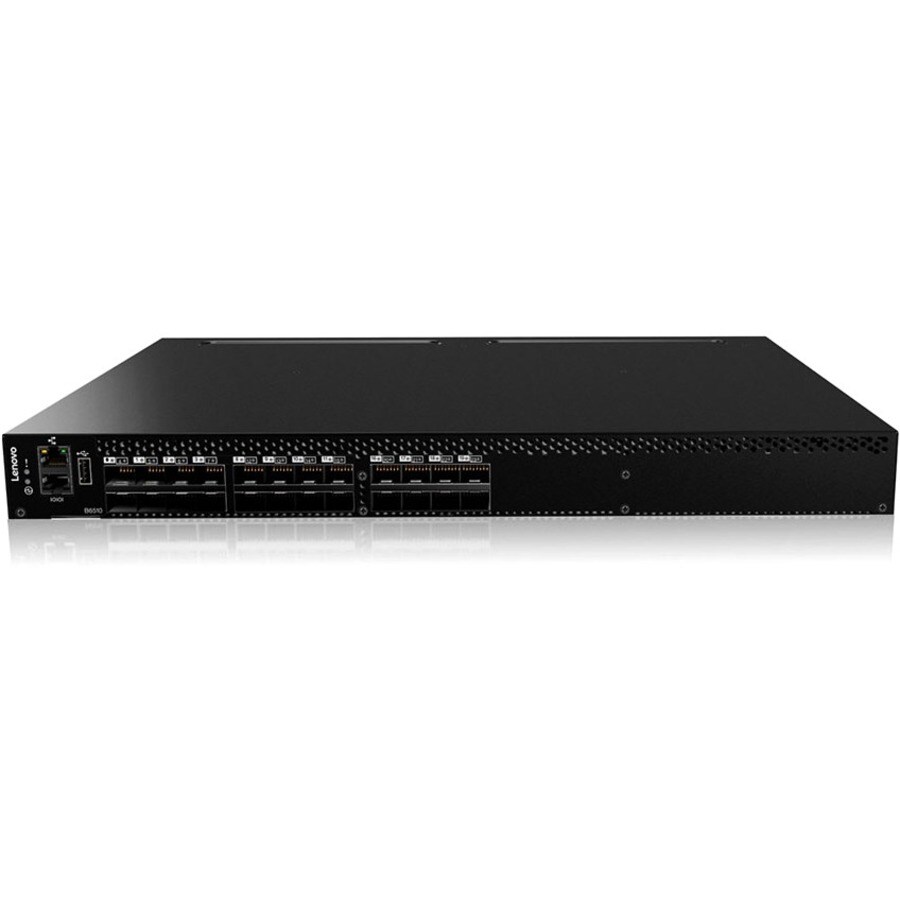

The Brocade 300 FC SAN Switch for Lenovo (Machine Type 3873) provides small to medium-sized enterprises with Storage Area Network (SAN) connectivity that simplifies their IT management infrastructures, improves system performance, maximizes the value of virtual server deployments, and reduces overall storage costs.

The Brocade 300 is a 1U rack-mount 8 Gb Fibre Channel switch with up to 24 ports (8 ports licensed by default; the remaining ports can be licensed in 8-port increments) that support 2/4/8 Gbps speeds. The switch offers a rich set of standard software features with the options to expand its capabilities as needed.

The Brocade 300 features the EZSwitchSetup wizard and can be configured in the Brocade Access Gateway mode of operation to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection.

Technical Specifications

I/O Expansions
Expansion Slot TypeSFP
Management & Protocols
ManageableYes
Media & Performance
Data Transfer Rate8 Gbit/s
Physical Characteristics
Weight (Approximate)4.20 kg
Form FactorStandalone
Rail-mountable
Rack-mountable
Height43 mm
Width429 mm
Depth307 mm
Miscellaneous
Environmentally FriendlyYes
Interfaces/Ports
Number of Fibre Channel Ports24
Number of Network (RJ-45) Ports2
General Information
Product TypeFibre Channel Switch
Manufacturer Part Number3873BR2
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
ManufacturerLenovo Group Limited
Product NameB6510, 24 Ports Activated w/ 8Gb SWL SFPs, 2 PS, Rail Kit
Brand NameLenovo
