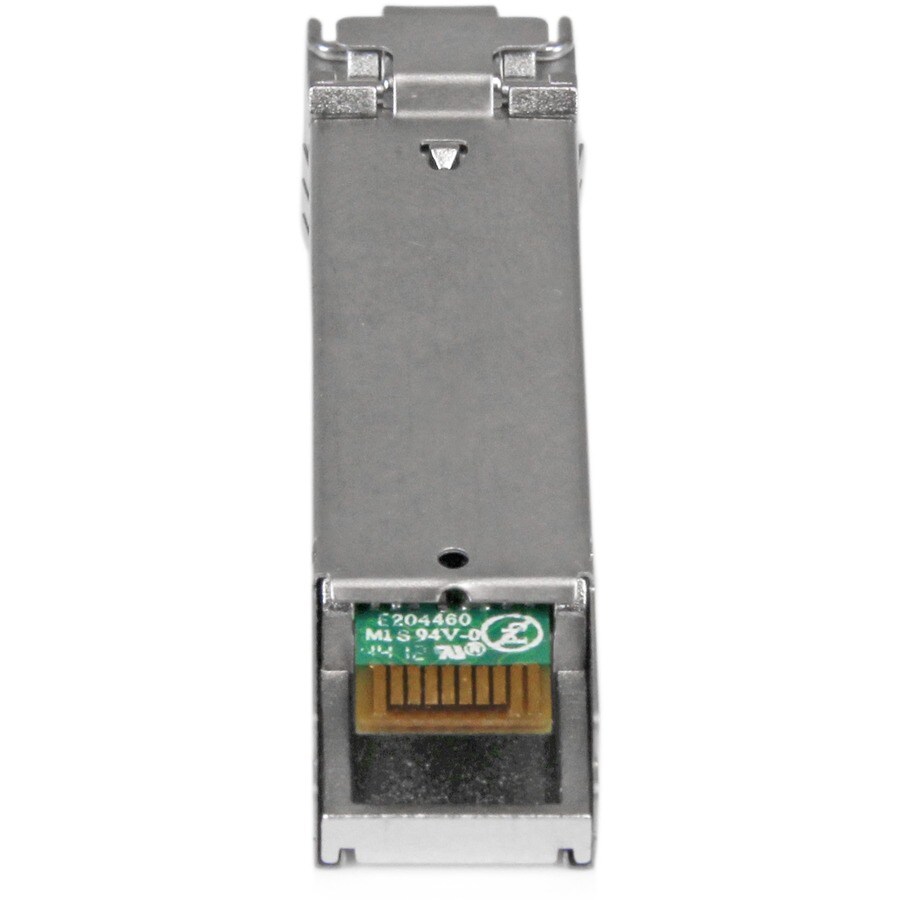

HP 3CSFP91 1000Base-SX SFP Transceiver
HP 3CSFP91 1000Base-SX SFP Transceiver
Product Overview
StarTech.com SFP (mini-GBIC) - 1 x LC Duplex 1000Base-SX Network - 1 Pack - For Data Networking, Optical Network - Optical Fiber - Multi-mode - Gigabit Ethernet - 1000Base-SX - Hot-pluggable, Hot-swappable
The 3CSFP91ST is an HP 3CSFP91 compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- Gigabit Ethernet port for ultra-fast network speeds
- Typically used for short distance, multi-mode fibre optic is ideal to carry data and transmit audio/video applications within a building
- Supports optical fibre cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fibre cable
Technical Specifications
Miscellaneous
| Compatibility |
|
Technical Information
| Application/Usage | Data Networking |
| Optical Network |
Interfaces/Ports
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
Physical Characteristics
| Weight (Approximate) | 17 g |
| Form Factor | Hot-pluggable |
| Hot-swappable | |
| Height | 12.7 mm |
| Width | 12.7 mm |
| Depth | 55.9 mm |
Media & Performance
| Network Technology | 1000Base-SX |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
General Information
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | 3CSFP91ST |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | HP 3CSFP91 Compatible SFP Tansceiver Module - 1000BASE-SX |
| Brand Name | StarTech.com |
