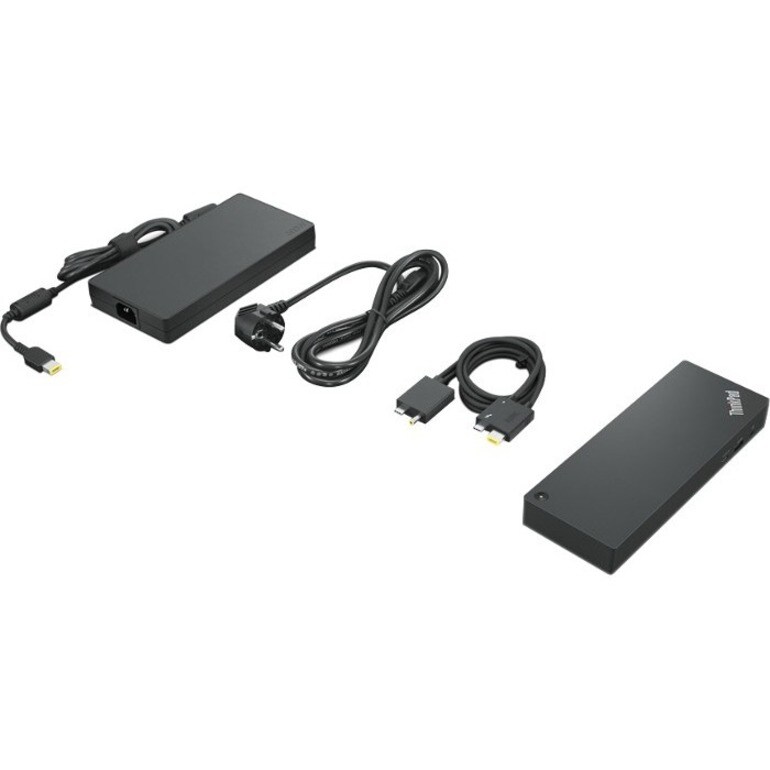

THINKPAD THUNDERBOLT 4 WORKSTATION DOCK
THINKPAD THUNDERBOLT 4 WORKSTATION DOCK
Product Overview
THINKPAD THUNDERBOLT 4 WORKSTATION DOCK
Premium Thunderbolt™ 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, Upto 230W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.Top Features
- The ThinkPad Thunderbolt™ 4 Workstation Dock supports upto 230W PD;
- Single 8K@30Hz or upto 4 4K@60HZ display support;
- Silent firmware upgrades, vPro/AMT Pass through support, and;
- Data transfer rates upto 40 Gbps; (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Power Description
| Maximum Power Supply Wattage | 230 W |
Software
| Operating System Supported | Windows |
Miscellaneous
| Compatibility | Lenovo Notebooks |
| Brand Compatibility | Lenovo |
| Kensington Security Slot | Yes |
Interfaces/Ports
| Host Interface | Thunderbolt |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Thunderbolt | Yes |
| Number of DisplayPorts | 2 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C, Host with USB-C |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
Physical Characteristics
| Weight (Approximate) | 450 g |
| Height | 30 mm |
| Depth | 80 mm |
General Information
| Product Type | Docking Station |
| Manufacturer Part Number | 40B00300AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkPad Thunderbolt 4 Workstation Dock |
| Product Line | ThinkPad |
| Brand Name | Lenovo |
Technical Information
| Device Supported | Monitor/Notebook/Workstation |
| Connectivity Technology | Wired |
| Number of Displays Supported | 4 |
| Supported Resolutions | 3840 x 2160 |
| 7680 x 4320 | |
| Screen Mode Supported | 8K |
| 4K |
