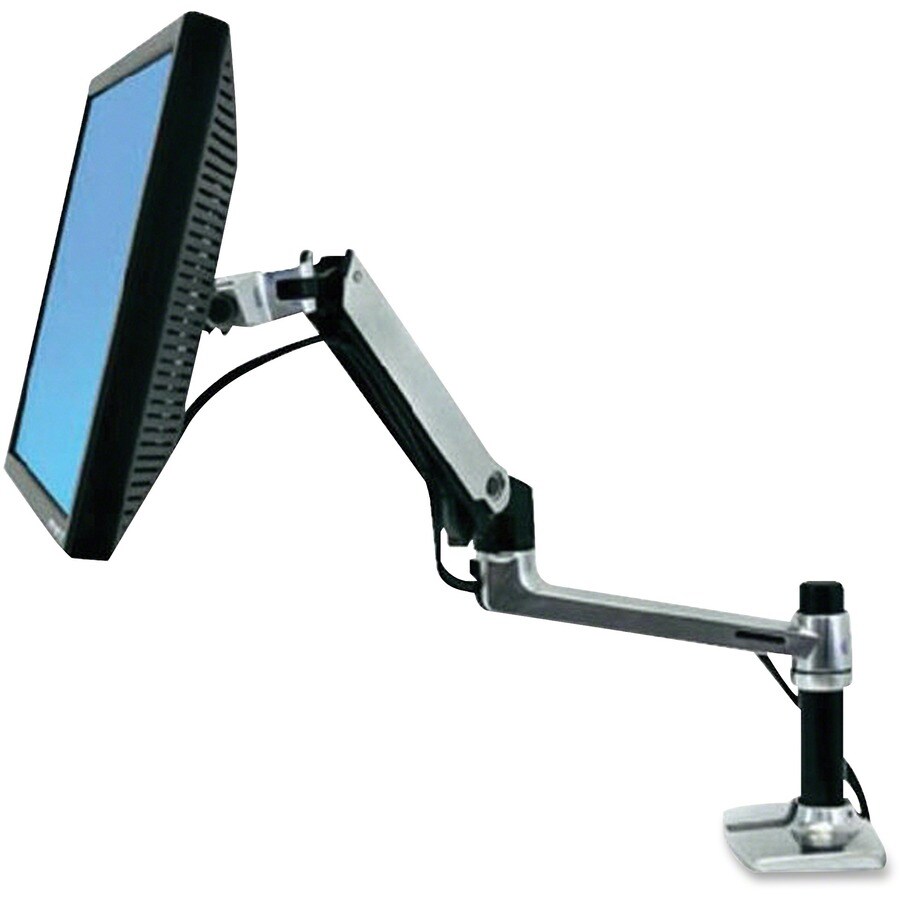

LX DSK Mount LCD MON Arm Aluminium

• Description: LX Desk Mount LCD Monitor Arm (polished aluminum)
• Includes LX arm, extension, desk clamp and grommet mount bases, 7" pole
• Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• Improved LX Arm Features & Benefits
• Polished aluminum construction offers greater durability and enhanced aesthetics
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Snap-fit cap secures interface of arm to extension for greater stability
• New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
• Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Weight Capacity: 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
• Tilt Range: 70° backward, 5° forward
• Product Weight: 7.8 lbs (3.6 kg)
• Shipping Dimensions: 17.75" x 10.5" x 6.75" (45 x 27 x 17 cm)
• Shipping Weight: 9.75 lbs (4.4 kg)
• Warranty: Ten (10) years

• 45-241-026 LX Desk Mount LCD Arm
• Mounting Hardware
• Extension
• Desk Clamp
• Grommet Mount Bases

Upto 24" LCD

VESA:

• FDMI MIS-D
• 100 mm x 100 mm
• 75 mm x 75 mm
