Product Overview
HX ARM WITH VERY HEAVY DUTY PIVOT DESK MOUNT MBK

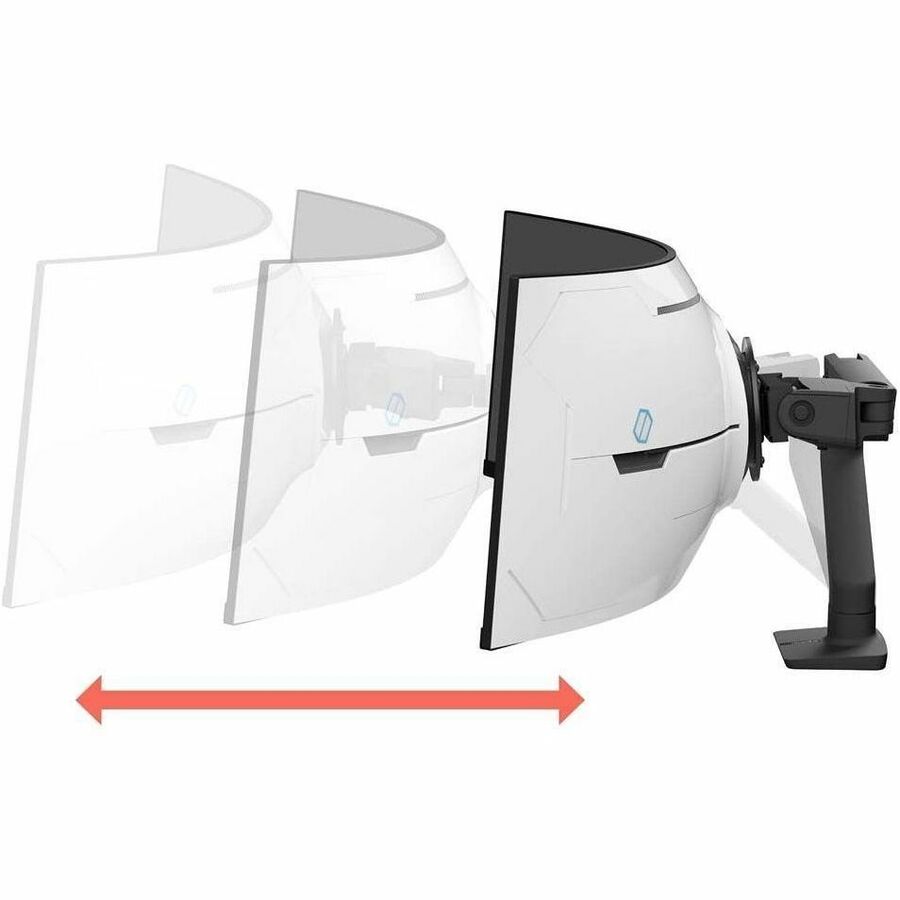

Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"-13.8" (23-35 cm) deep and 28.7-37.5 lbs (13-17 kg), like the Samsung® 57" Odyssey G9 Gaming Monitor.
- mbines a strong monitor arm and very heavy-duty pivot for secure support
- Designed for 57″ 1000R curved monitors like the Samsung 57″ Odyssey G9
- Replaces bulky monitor bases and lifts screens above the desktop
- Tilts +20/-5° to work or play comfortably
- Cables stay hidden under the arm and through the extension
- Enables precise screen positioning with Constant Force Technology
Technical Specifications
Miscellaneous
| Application/Usage | Office |
| Gaming | |
| Package Contents |
|
| Compatibility | Samsung G9 |
Product Information
| Device Supported | Monitor |
| Curved Screen Display | |
| Features | Rotate |
| Heavy Duty | |
| Leveling System | |
| Pivot | |
| Grommet | |
| Extendable | |
| Cable Management | |
| Tilt | |
| Maximum Load Capacity | 17.01 kg |
| Maximum Screen Size Supported | 144.8 cm (57") |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Minimum Load Capacity | 13.02 kg |
| Minimum Rotate Angle | -10° |
| Maximum Rotate Angle | 10° |
| Maximum Pan Angle | 180° |
General Information
| Product Type | Mounting Arm |
| Manufacturer Part Number | 45-693-224 |
| Manufacturer Website Address | http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx |
| Manufacturer | Ergotron, Inc |
| Product Name | HX Desk Monitor Arm with VHD Pivot (Matte Black) for Extreme-Depth Curved Screen |
| Product Series | HX |
| Brand Name | Ergotron |
Physical Characteristics
| Weight (Approximate) | 8.07 kg |
| Form Factor | Desk |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100 |
| 75 x 75 | |
| Product Color | Black |
| Color Family | Black |
