2m Aqua MM 50/125 OM4 Fiber Optic Cable
2m Aqua MM 50/125 OM4 Fiber Optic Cable
Product Overview

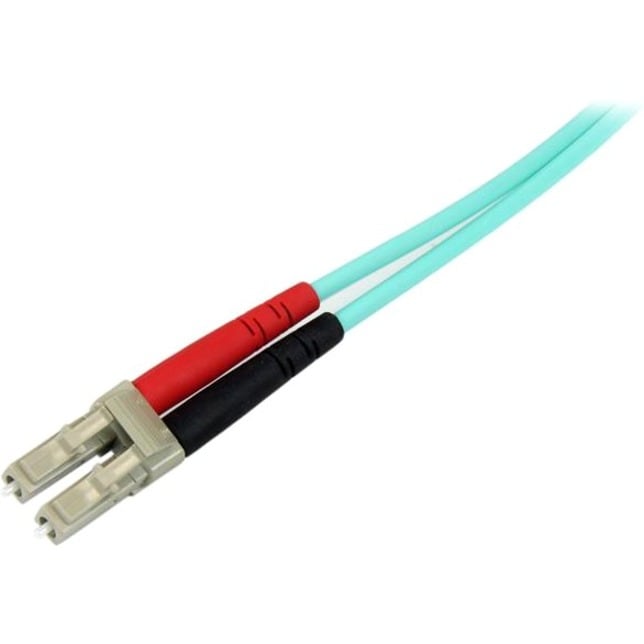

StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord - 2m (6.6ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.- Fully compatible with network devices
- For extra fire safety, the cable features a halogen-free jacket
- Experience a simpler way to connect devices with the entire business network
- Features Fibre Optic cable type
Technical Specifications
Physical Characteristics
Weight (Approximate) | 34 g |
Product Color | Aqua |
Color Family | Green |
Technical Information
Cable Length | 2 m |
Data Transfer Rate | 100 Gbit/s |
Device Supported | Network Device |
Transceiver | |
Jacket Type | LSZH |
Features | Corrosion Resistant |
Flame Retardant | |
Halogen Free | |
Cable Characteristic | Patch Cable |
Cable Type | Fibre Optic |
Connector Type on First End | LC Network - Male |
Connector Type on Second End | LC Network - Male |
Core/Cladding Diameter | 50/125 µm |
Fiber Optic Mode | Multi-mode |
Connector on First End Details | 2 x LC Network - Male |
Connector on Second End Details | 2 x LC Network - Male |
General Information
Product Type | Network Cable |
Manufacturer Part Number | 450FBLCLC2 |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | Fiber Optic Duplex Patch Network Cable |
Brand Name | StarTech.com |
